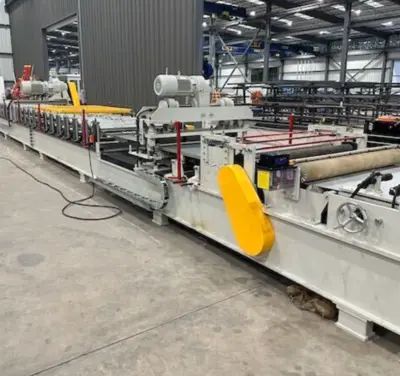

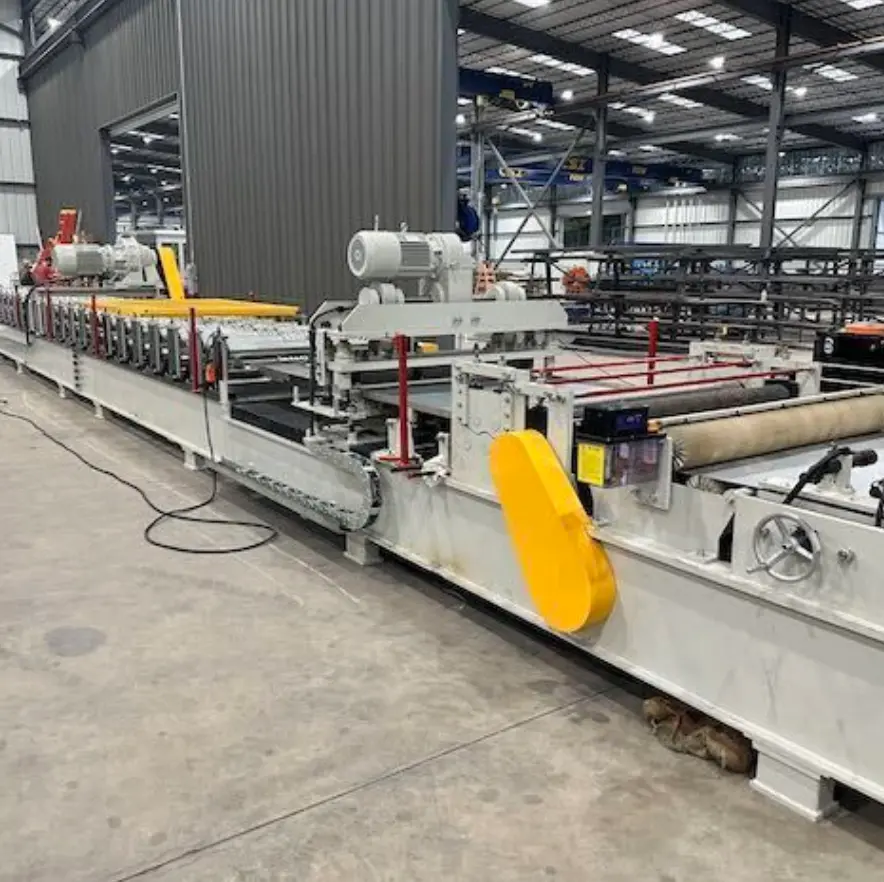

Heavy Duty Bridge Decking Roll Forming Machine Alabama

The Heavy-Duty Bridge Decking Roll Forming Machine is an advanced and robust solution designed to manufacture high-quality bridge decking profiles. Engineered for efficiency and durability, this machine is ideal for large-scale projects requiring precision and speed. Located in Alabama, USA, this machine caters to industries needing high-performance roll forming systems to meet demanding structural requirements.

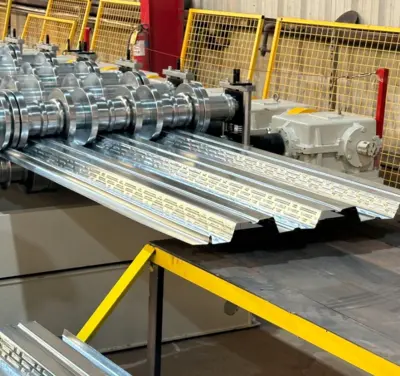

This machine supports multiple profile types, including:
1.5-inch B Deck
3-inch N Deck
Composite Metal Deck
Steel Form Deck

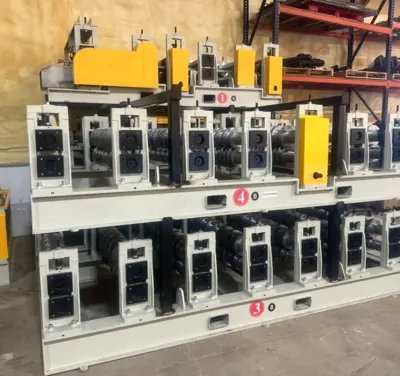

Custom profiles can also be manufactured according to your specific needs, ensuring adaptability to various project requirements. It is available in both fixed-base and cassette configurations, and an optional auto-stacker can be included to optimize operations.
General Machine Features:
Forming Speed: 60 ft/min+

Material Thickness: 18g - 22g

Machine Weight: 20 tons

Machine Footprint: 85 ft

Main Power Supply: 480V, 3-phase, 60Hz

Motor Power: 32 HP

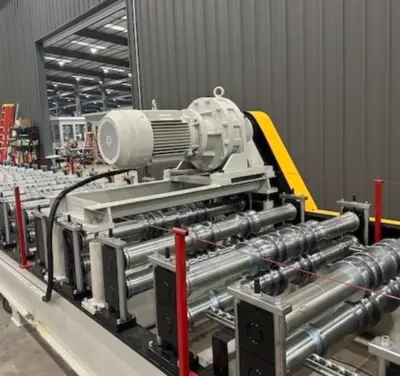

Drive Mechanism: Gearbox & Chain Drive

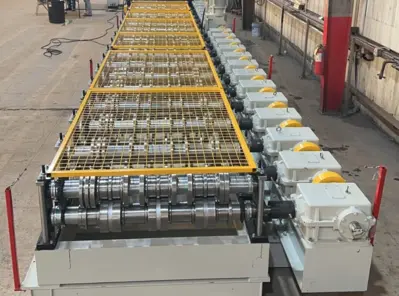

Forming Stations: 28

Cutting Type: Pre-Flying Shear

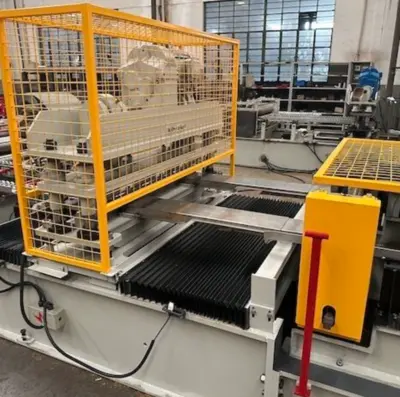

Safety Features: Optional safety covers and emergency stops (E-Stops)
Uncoiler with Hydraulic Car:
Capacity: 15,000 lbs

Decoiling Speed: 60 ft/min

Coil Width: 48 inches

Machine Weight: 3.5 tons

Machine Dimensions: 14 ft x 6 ft x 6 ft

Hydraulic Car Size: 35 inches x 28 inches

Working Speed: Matches roll former speed

Controls: Jog controls, proximity sensors, air brake
Optional Add-Ons

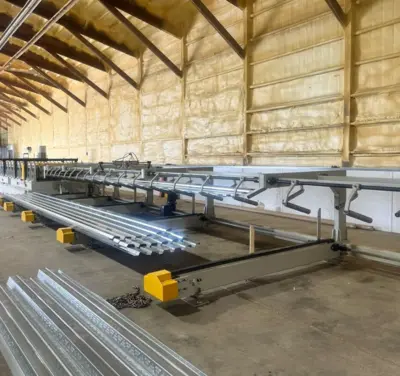

Auto Stackers for efficient material handling
Custom profile manufacturing capabilities
Safety covers for enhanced operational safety
Applications
This roll forming machine is perfect for applications in:
Bridge construction
Large-scale infrastructure projects
Steel deck flooring for commercial and industrial buildings
Its versatility ensures that industries in Alabama can rely on it for precision and consistent performance in producing high-strength bridge decking.
Questions and Answers
Q1: Can this machine handle custom profiles?
A: Yes, the machine can be customized to produce profiles tailored to your requirements, ensuring versatility for different project specifications.
Q2: What is the forming speed of the machine?
A: The forming speed is 60 feet per minute or more, making it highly efficient for large-scale production.
Q3: Is the machine suitable for thicker materials?
A: Yes, it supports material thickness ranging from 18-gauge to 22-gauge, which is suitable for heavy-duty decking applications.
Q4: What safety features does this machine include?
A: The machine comes with optional safety covers and emergency stops (E-Stops) to ensure a safe working environment.
Q5: Does the machine come with an uncoiler?
A: Yes, it comes with a 15,000-pound capacity uncoiler equipped with a hydraulic car for efficient coil handling.
Q6: What power supply is required for the machine?
A: The machine operates on a 480V, 3-phase, 60Hz power supply.
Q7: Is training or installation support provided?
A: Training and installation support can be arranged upon request, ensuring seamless operation after setup.
Q8: Can I integrate an auto-stacker with this machine?
A: Yes, auto-stackers are available as an optional add-on to streamline material handling.
This Heavy-Duty Bridge Decking Roll Forming Machine, with its robust design and high-capacity features, is an excellent choice for Alabama-based industries looking for efficient and reliable manufacturing equipment. Whether your needs are standard or customized, this machine ensures top-notch performance and adaptability.
