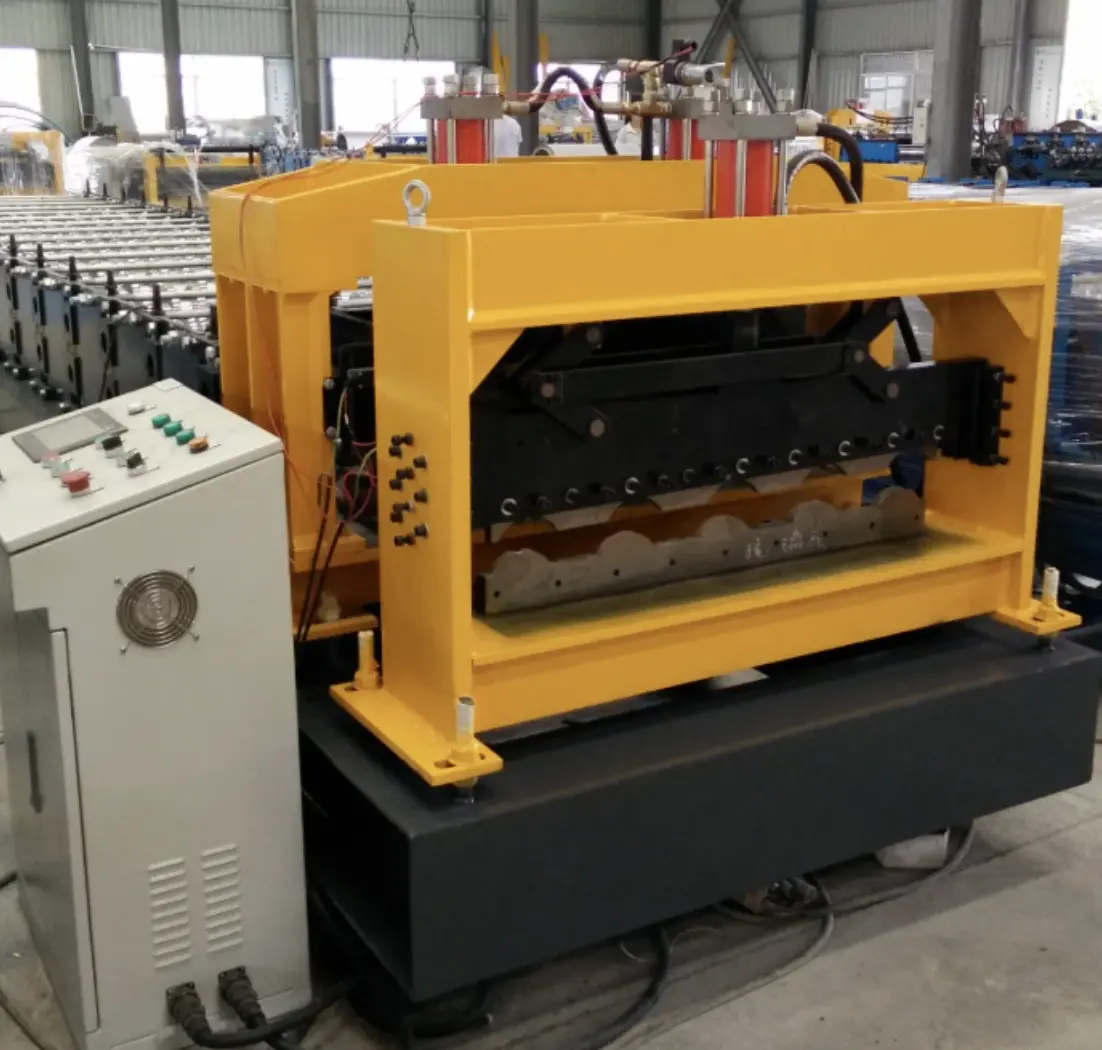

Metal Roll Forming Machine Costa Rica

Size
6000*1500*1600mm

Weight
6500KGS

Motor Power
7.5KW

Hydraulic Power
5.5KW

Voltage
380V/50HZ/3PH

Forming Steps
13steps

Processing Speed
4-6m/min

Thickness
0.3mm~0.6mm

Feeding Material Width
1000mm;

Effective Width
840mm

Metal roll forming machines are specialized equipment used in the manufacturing process to create metal profiles through continuous bending of a strip of metal. This technique is highly efficient for producing a wide range of metal products with consistent quality and precision. Here’s a detailed overview of metal roll forming machines, including their types, components, and applications:
Overview of Metal Roll Forming Machines
Types of Roll Forming Machines
Standard Roll Forming Machines: Designed for producing common profiles used in construction, such as C-sections, Z-sections, and channel sections.

Custom Roll Forming Machines: Tailored to create specific profiles based on customer requirements, allowing for greater flexibility in design.

Mobile Roll Forming Machines: Portable units that can be transported to job sites for on-demand production of metal components.

High-Speed Roll Forming Machines: Engineered for fast production rates, suitable for high-volume manufacturing environments.
Key Components
Feeding System: Aligns and feeds the metal strip into the forming station.

Rolls: Series of rollers shaped to create the desired profile as the metal strip passes through.

Forming Station: The area where the metal is shaped into the final profile through progressive bending.

Cutting Mechanism: Cuts the formed metal into specified lengths.

Control System: Digital or manual controls that monitor and adjust the machine’s operation for efficiency and accuracy.
Applications
Construction: Used to create structural components such as beams, purlins, and panels.

Roofing: Produces metal roofing sheets and components that are lightweight yet durable.

Automotive: Fabricates parts like frames, panels, and supports.

HVAC: Creates ductwork and ventilation systems.

Furniture: Manufactures frames and supports for various furniture applications.
Conclusion
Metal roll forming machines play a vital role in modern manufacturing across various industries, providing efficiency, flexibility, and high-quality results. Whether for standard or custom profiles, these machines are essential for meeting the growing demands of construction, automotive, and other sectors.
