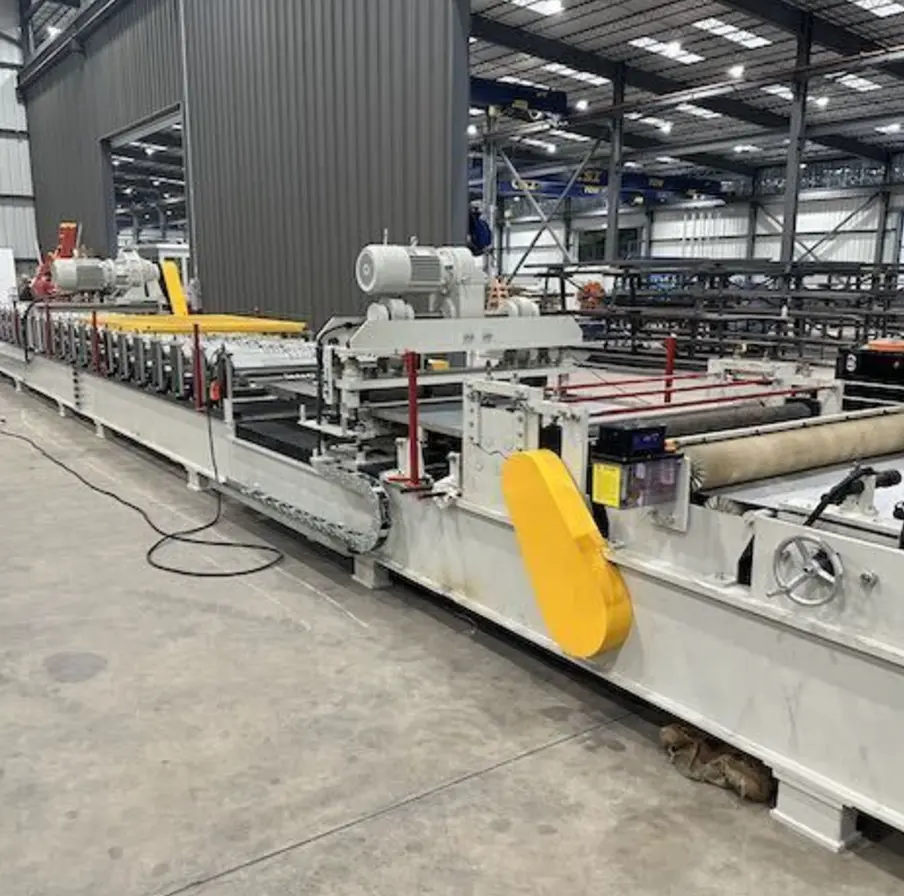

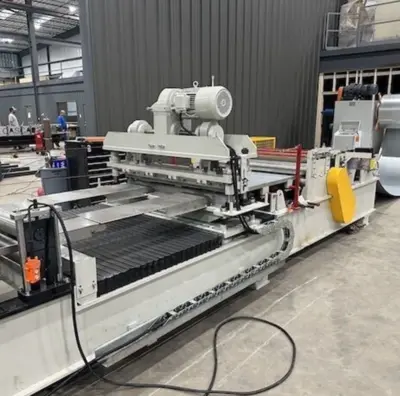

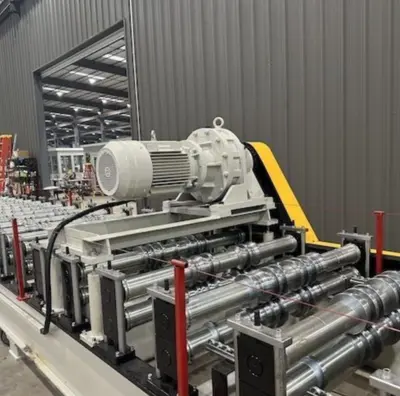

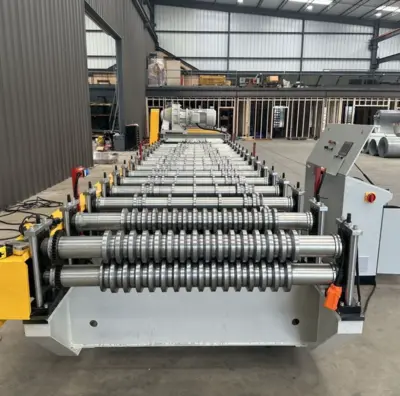

The Type B Decking Wide Rib Roll Forming Machine is engineered to produce high-quality B decking panels commonly used in commercial and industrial construction. These panels are ideal for structural applications, offering exceptional strength-to-weight ratios. The machine is designed with precision engineering and advanced technology to ensure consistent profile accuracy, long-lasting durability, and efficient production cycles.
The machine forms wide-ribbed profiles with enhanced load-carrying capacity and excellent compatibility with concrete slabs. Its robust structure and automated features make it a reliable choice for manufacturers looking to produce decking solutions that meet stringent construction standards.
Setup and Installation
Site Preparation: Ensure a flat, stable surface and proper electrical connections.
Machine Placement: Position the machine as per layout recommendations.
Calibration: Adjust rollers and guides for desired profile dimensions.
Test Run: Perform a dry run to ensure all components are functioning.
Training: Provide operational training for staff.
Maintenance Requirements
Daily: Inspect rollers and lubricate moving parts.
Weekly: Check PLC system settings and adjust as needed.
Monthly: Clean the hydraulic system and replace filters.
Annual: Replace worn-out rollers or parts and conduct a full system review.
Questions and Answers
Q1: What industries typically use Type B decking panels?
A1: Type B decking panels are widely used in construction industries, including commercial buildings, warehouses, factories, and parking structures, due to their load-bearing capabilities and integration with concrete.
Q2: Can the machine be customized for different panel widths or profiles?
A2: Yes, the machine can be customized to produce various panel widths and rib designs based on specific project needs.
Q3: What materials are compatible with this machine?
A3: The machine is compatible with galvanized steel, stainless steel, and aluminum, depending on customer requirements.
Q4: How much space is required to install the machine?
A4: The installation space depends on the machine size, typically requiring a minimum of 15 meters in length and 3 meters in width.
Q5: Is training provided for operating the machine?
A5: Yes, training is provided to ensure smooth operation, covering everything from setup to troubleshooting.
Q6: What is the average production capacity?
A6: The machine can produce 300–800 panels per day, depending on material thickness, speed settings, and operator efficiency.
Q7: Are there any local suppliers for spare parts in Florida?
A7: Spare parts can be shipped directly, but local suppliers can also be recommended based on the machine brand and customer location.
Roller Materials: High-grade steel with chrome plating for durability and smooth operation.
Frame Size: Heavy-duty steel construction with reinforced supports for stability.
Profile Width: Typically between 24 to 36 inches (customizable).
Material Thickness: 0.6 mm to 1.2 mm (can vary based on specific requirements).
Material Types: Galvanized steel, stainless steel, or aluminum (depending on client needs).
Machine Speed: 10–30 meters per minute (adjustable with variable speed controls).
Punching and Notching System: Hydraulic or servo-controlled for precise holes and slots.
Hydraulic Cutting System: Ensures clean, burr-free cuts at high speed.
Motors: High-efficiency servo motors for smooth operation.
PLC System: Advanced control system for easy operation, programming, and diagnostics.
Safety Features: Enclosures, emergency stop buttons, and safety guards.
Optional Extras: Automatic stackers, remote PLC systems, coil car tippers, and uncoilers.
