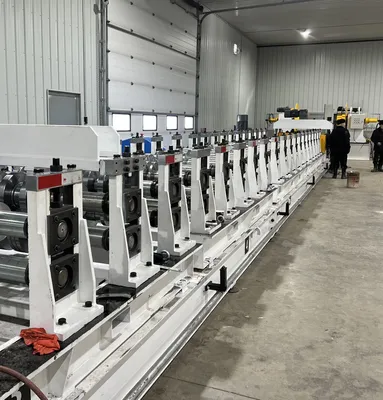

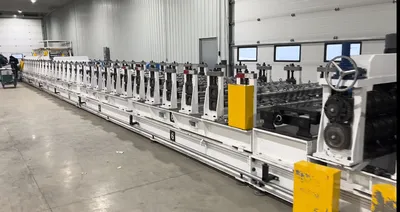

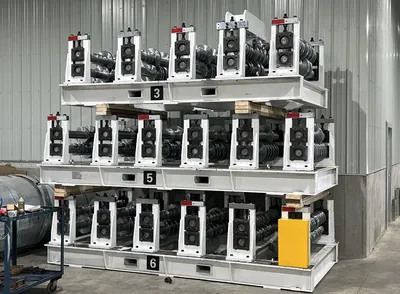

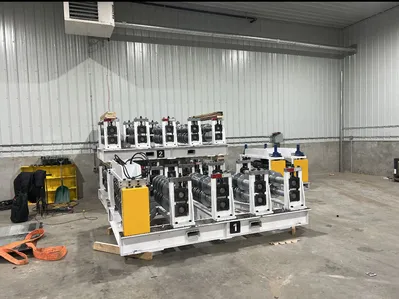

Cassette Type Roll Forming Machine in Orlando, Florida, USA

Footprint 120ft x 15ft
20,000lb Uncoiler
Stands 28 gauges 16 to 22g

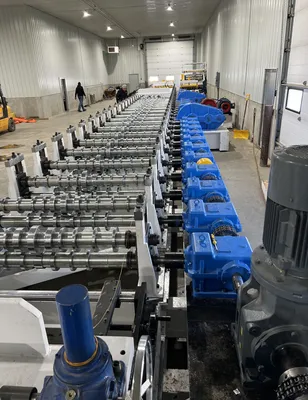

Driven with 28 gearboxes and reducers
Main motor 65hp 3ph 60hz
Embosser stations with gear box drive station 25hp motor
On and off embossing rollers
Flying Hydralic shear and changing table

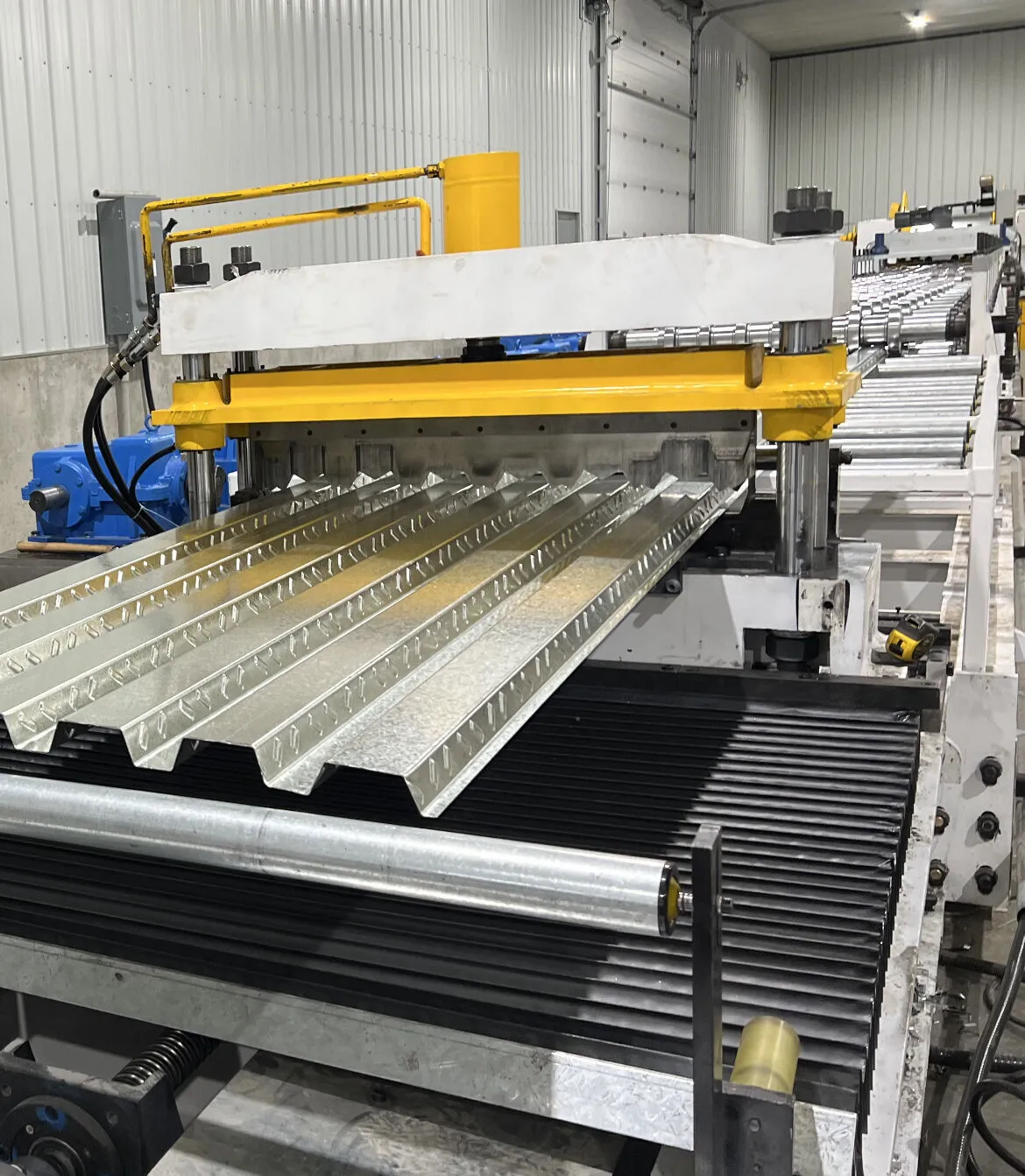

Profiles are b deck 1-1/2" / Q deck 3" 4 ribs
Coil width 48" +/-
Computer controls Yasakawa
Drive Fuji mmi Mitsubishi Plc
E stops and safety fence
Total machine weight 100 tons +/-
4 inch main shafts and 5 inch embossing shafts
