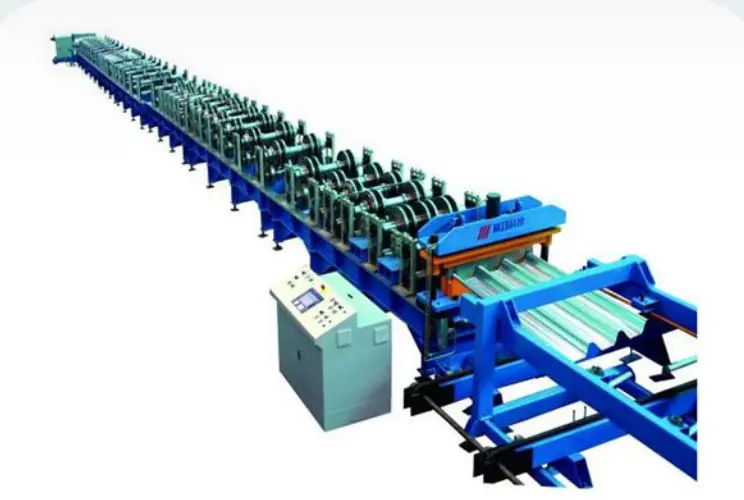

HGM Steel Deck Roll Forming Machine in Shaoxing City, China

HGM steel deck roll forming machine is a new model developed and produced by Jinggong combined with introduced advanced technology. This roll former is capable of implementing processes including uncoiling, cold roll forming, cold stamping, precise processing, cutting-to-length, automatic stacking, along with industrial automation controlling, achieving high efficiency fully automatic production process. The maximum forming speed reaches 60m/min.
We at Jinggong can design and manufacture custom roll forming machine suited to your sheet types.
Suitable material
Type

Galvanized sheet

Thickness
mm
0.8-1.2 or 1.0-1.5
Depending on customers' requirement

Yield strength
Mpa
≤400
As per customers' material characteristic

Width
mm
≤1500
According to different profile shape

Coil weight
T
5, 8 or 10
Optional

Working speed
m/min
≤15

Roller material

45steel or 38CrMoAl
According to customers' requirement

Roller driving mode

External chain drive

Electric control system

Industrial computer PLC frequency control

Console mode

Touch screen+ button

Total power
kW
24
As per technical requirement

Outline dimensions (LXWXH)
m
24X1.6X1.8
