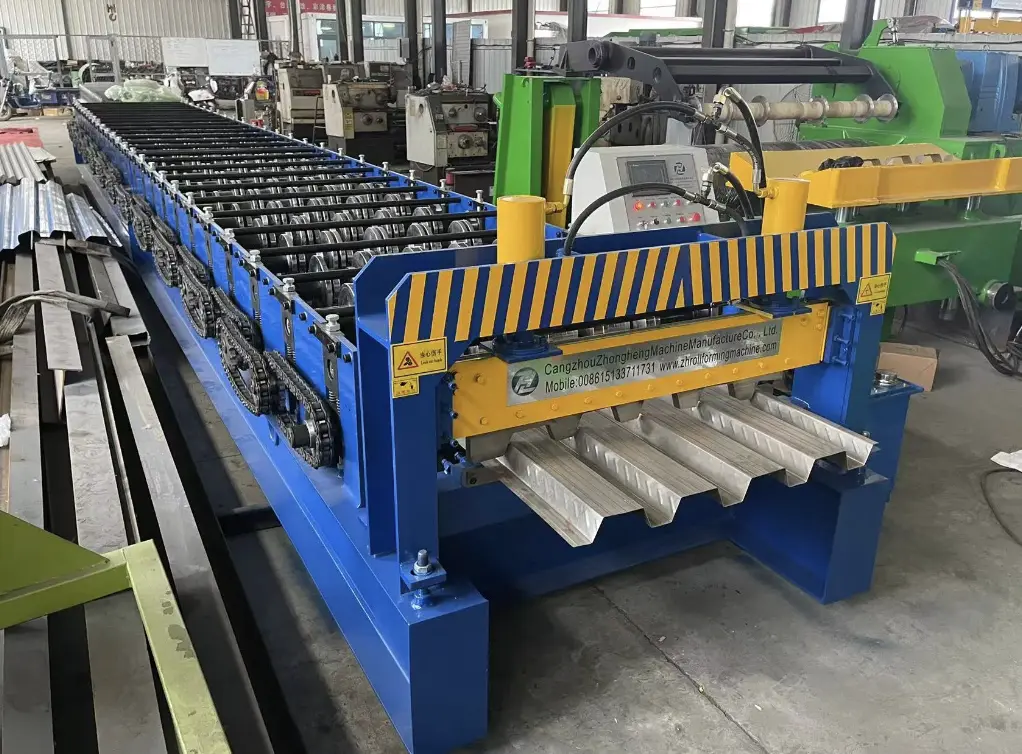

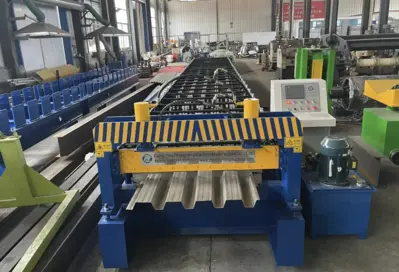

Steel Deck Roll Forming Machine in Nicaragua

Suitable material
PPGI GI AL

Coil Width
1220mm

Thickness
0.3mm-1mm

Power
380V 50Hz 3Phase as custom

Main motor
5.5KW

Hydraulic motor
4kw

Speed
10-20m/min

Forming stations
16rows

Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°

Shaft material
45# steel quenched and tempered

Screem HMI
Delta , Touch Screen

PLC
Delta , Siemens

Processing precision
Within 1mm

Weight
4T
