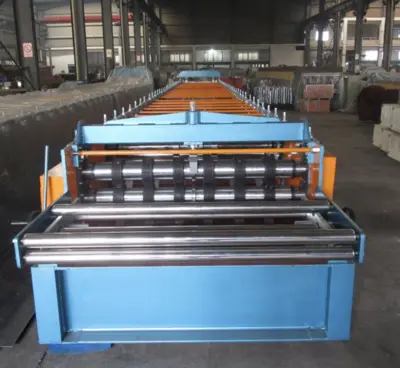

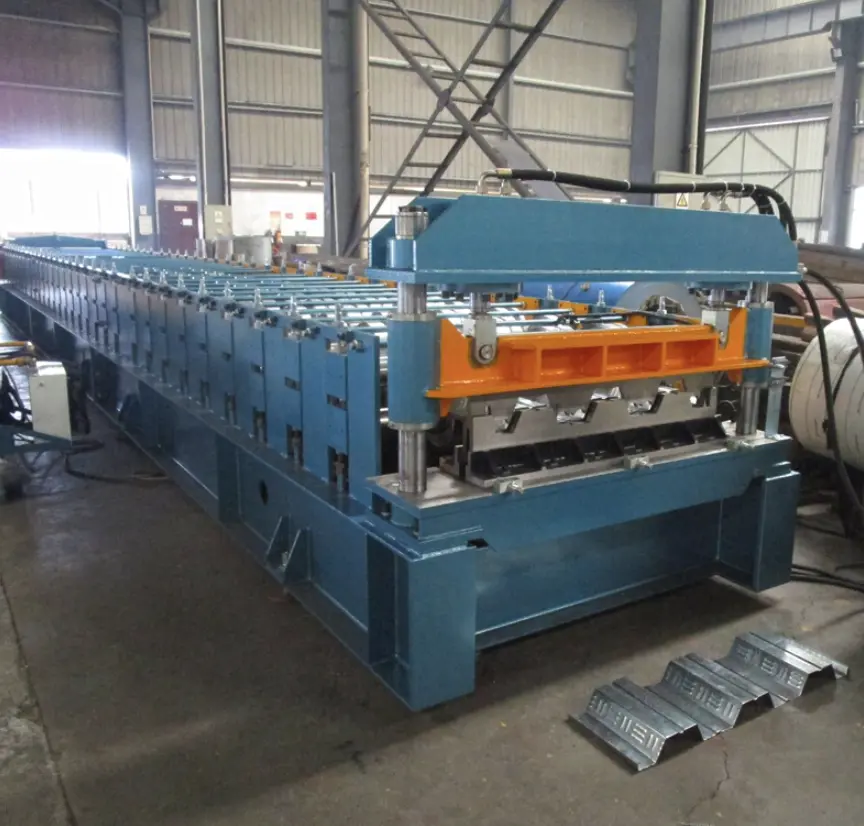

Floor Deck Roll Forming Machine in Saudi Arabia

Iterm
Specification

Type
Color steel sheet or galvanized steel sheet

Material
Thickness(mm)
0. 8 -1.2

Yield strength(mpa)
235 -345

Roller material
45#Chrome steel

Forming speed(m/min)
About 15-20m/min

Speed adjusting mode
AC Frequency

Roller drive
Decelerating motor + Chain drive

Cutting mode
Hydraulic cutting

Cutter material
Cr12 mov.

Length measurement
Encoder

Control mode
Mitsubishi PLC

Operating mode
Button + Mitsubishi Touch screen

Main motor power(kw)
11*2KW (Depend on final design)

Hydraulic station power
5.5K W (Depend on final design)

Total power(kw)
11KW

Uncoiler's loading capacity
Max. Capacity: 5000kgs
(can be increased to be 10T)

Machine`s size
About 16*1.5*1.6m (Depend on final design)

Machine weight
About 16000kgs
