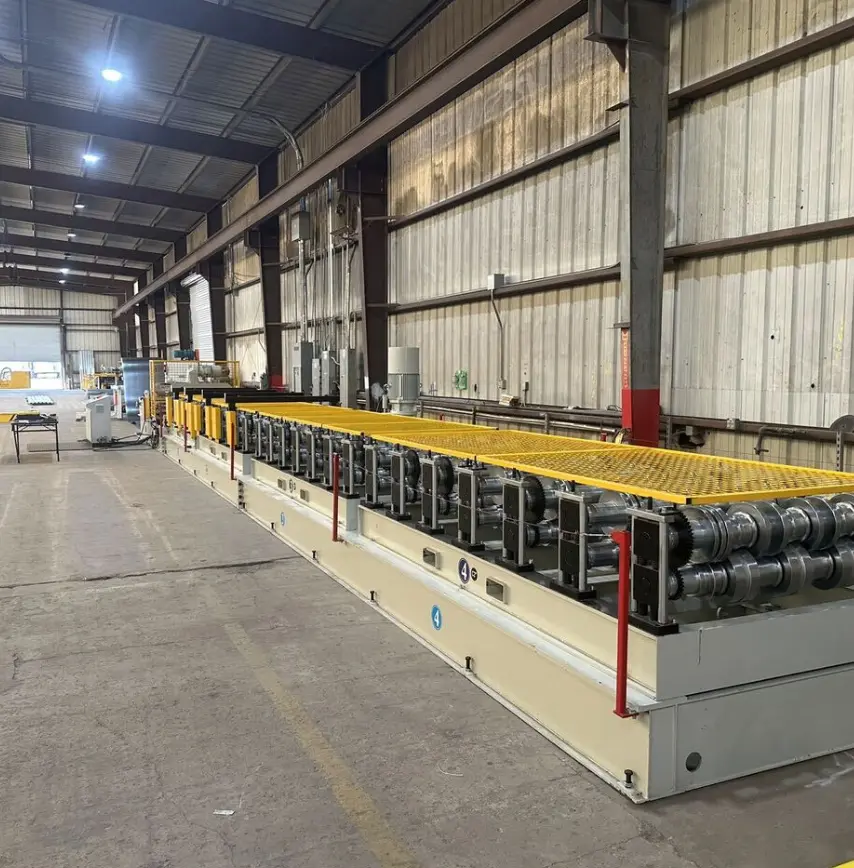

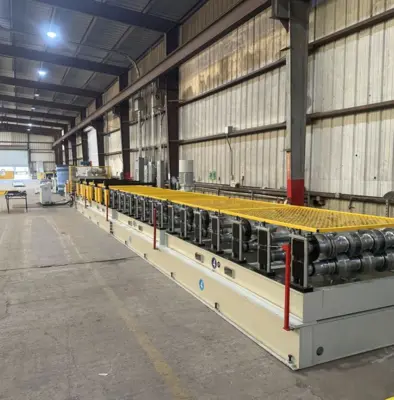

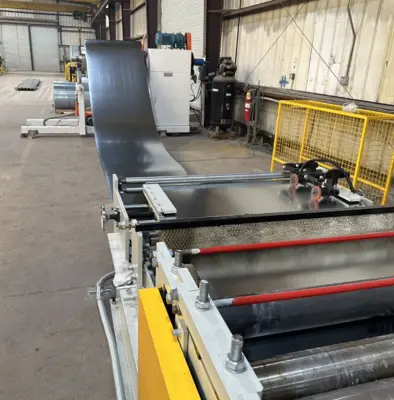

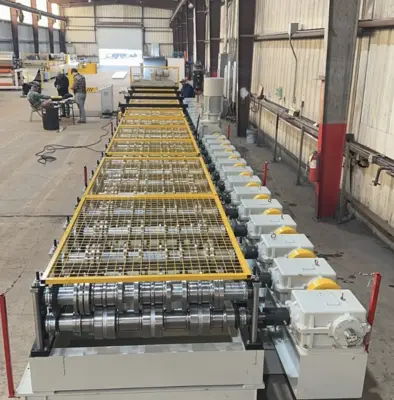

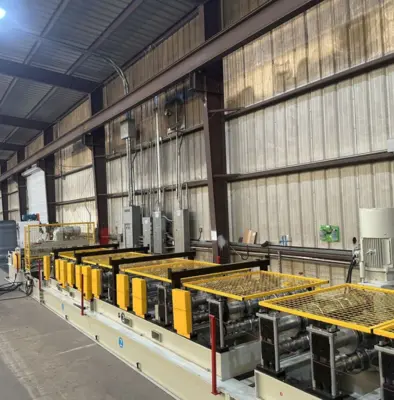

A composite deck roll forming machine is an advanced industrial machine designed to manufacture composite steel decking profiles, which are widely used in the construction of floors and roofing in commercial, industrial, and residential buildings. These machines are vital for producing strong, durable, and lightweight steel profiles that integrate seamlessly with concrete to create composite floor decks.
Composite decking is favored in Canada for its ability to handle heavy loads and provide a stable structure, especially in regions with varying weather conditions. The machine offers high efficiency, precision, and cost-effectiveness, catering to the growing demand for sustainable construction materials in the Canadian market.
Why Choose Composite Deck Roll Forming Machines in Canada?
High Efficiency: These machines can produce high volumes of composite decking profiles quickly and with minimal waste.
Durability: Canadian weather conditions require robust materials. The machine’s precision ensures high-quality profiles suitable for heavy-duty applications.
Customization: Profile designs can be tailored to meet specific architectural and engineering standards in Canada.
Sustainability: These machines support environmentally friendly construction practices, a growing priority in Canada.
Common Questions and Answers
What is the typical lead time for a composite deck roll forming machine?
The lead time varies between 60 to 90 days, depending on the level of customization required.
Can the machine handle materials other than galvanized steel?
Yes, the machine can work with aluminum, stainless steel, and other coated steel materials. Adjustments may be needed for specific materials.
What are the maintenance requirements for the machine?
Regular lubrication, roller alignment checks, and electrical system inspections are essential. Annual servicing is recommended for optimal performance.
How does the machine accommodate Canadian voltage and power standards?
The machine can be customized to operate on Canada’s 380V/60Hz power supply or other specific requirements.
Are training and installation included in the purchase?
Yes, most suppliers provide on-site installation and training. Remote training options are also available for customers in remote areas of Canada.
What are the warranty terms?
Warranties typically cover 12–24 months, depending on the manufacturer. They include parts and service support.
Can I customize the profile designs for specific construction projects in Canada?
Absolutely! The machine can be customized to produce a variety of profiles based on Canadian building codes and project requirements.
What safety features are included?
Safety enclosures, emergency stop buttons, and protective guards are standard to ensure operator safety.
By investing in a composite deck roll forming machine, businesses in Canada can meet the increasing demand for durable and efficient building materials, aligning with the country’s focus on high-quality and sustainable construction.
Material Specifications:
Material: Galvanized steel, aluminum-zinc coated steelMaterial Thickness: 0.8 mm to 2.5 mmCoil Width: 600 mm to 1500 mmCoil Weight: Up to 10 tons
Material: Galvanized steel, aluminum-zinc coated steel
Material Thickness: 0.8 mm to 2.5 mm
Coil Width: 600 mm to 1500 mm
Coil Weight: Up to 10 tons
Roller System:
Number of Roll Stations: 16–28 (varies with profile design)Roller Material: High-grade steel (Cr12MoV or GCr15) with hard chrome platingFrame Type: Welded steel frame or cast iron frame for heavy-duty use
Number of Roll Stations: 16–28 (varies with profile design)
Roller Material: High-grade steel (Cr12MoV or GCr15) with hard chrome plating
Frame Type: Welded steel frame or cast iron frame for heavy-duty use
Power and Drive:
Main Motor Power: 15–30 kW (depending on capacity)Hydraulic Power: 5–7.5 kWTransmission: Chain or gearbox driveVoltage: Customized for Canadian standards (e.g., 380V/60Hz)
Main Motor Power: 15–30 kW (depending on capacity)
Hydraulic Power: 5–7.5 kW
Transmission: Chain or gearbox drive
Voltage: Customized for Canadian standards (e.g., 380V/60Hz)
Cutting System:
Cutting Type: Hydraulic cuttingBlade Material: Cr12MoV with heat treatmentCutting Accuracy: ±1 mm
Cutting Type: Hydraulic cutting
Blade Material: Cr12MoV with heat treatment
Cutting Accuracy: ±1 mm
Control System:
PLC System: Mitsubishi, Siemens, or DeltaOperation Mode: Touch screen with manual and automatic modesLanguage Options: English, French, or bilingual interface
PLC System: Mitsubishi, Siemens, or Delta
Operation Mode: Touch screen with manual and automatic modes
Language Options: English, French, or bilingual interface
Production Capacity:
Speed: 15–20 meters per minute (up to 30 m/min for high-speed models)Length Tolerance: ±1 mmProfile Designs: Customizable based on Canadian standards
Speed: 15–20 meters per minute (up to 30 m/min for high-speed models)
Length Tolerance: ±1 mm
Profile Designs: Customizable based on Canadian standards
Optional Features:
Automatic stackerPre-punching system for holes and slotsRemote control and monitoring systemsDecoilers and recoilers
Automatic stacker
Pre-punching system for holes and slots
Remote control and monitoring systems
Decoilers and recoilers
