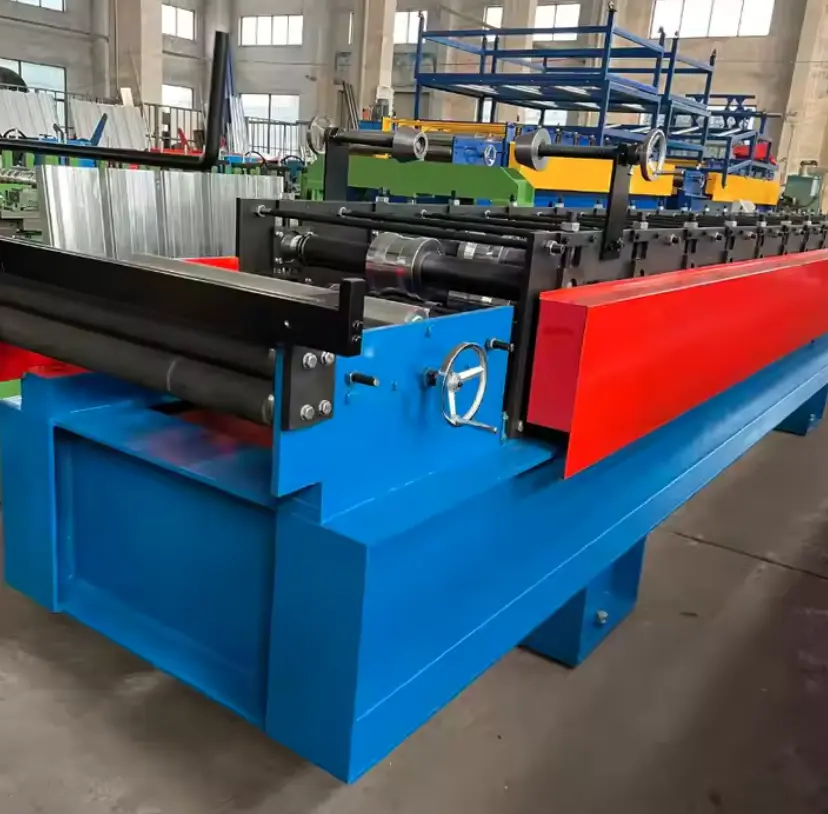

Cladding System Roll Forming Machine – Available in the UAE
Overview
The Cladding System Roll Forming Machine from Machine Matcher is a high-performance, precision-engineered solution designed for producing metal cladding profiles used in modern building envelopes. Built to withstand demanding production environments and tailored to meet specific profile and material requirements, this machine is ideal for manufacturers and construction firms across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and surrounding regions.
Engineered to support local and regional construction demands, this cladding system roll forming machine ensures consistent quality, efficiency, and reliability—making it a preferred choice for industrial-scale production. Whether you're fabricating metal panels for industrial warehouses, commercial buildings, or architectural applications, this machine delivers unmatched accuracy and productivity.
Industries Served
The cladding system roll forming machine caters to several major industries:
Construction & Infrastructure: For commercial buildings, warehouses, industrial plants, and residential housing.
Architectural Design: Used in the fabrication of custom façade cladding with aesthetic and structural benefits.
Pre-Engineered Buildings (PEBs): Essential in the production of metal panels used for roofing and wall systems.
Steel Fabrication & Manufacturing: Supports high-volume cladding production with minimal material waste.
Logistics & Warehousing: Metal panels formed with this machine are widely used in constructing logistic hubs and storage centers.
Application Example:
A cladding profile roll forming machine is typically used by UAE-based construction companies to manufacture steel panels for the facades of large shopping malls, stadiums, or airport terminals. The panels not only serve aesthetic purposes but also provide durability and weather resistance.
Machine Technical Specifications
Machine Type: Cladding Profile Roll Forming Machine
Production Speed: Up to 15–25 meters/min
Material Thickness Range: 0.3–1.2 mm
Material Width Range: 300–1250 mm
Material Types: Galvanized steel, pre-painted steel, aluminum, stainless steel
Material Yield Strength: Up to 550 MPa (80 ksi)

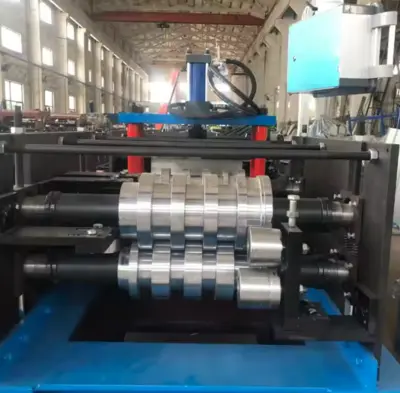

Roller Material: GCr15 (high-grade steel)
Roller Surface Treatment: Hard chrome plating for anti-rust and wear resistance
Number of Forming Stations: 12–24 stations (based on profile complexity)
Roller Shaft Diameter: 70 mm
Shaft Material: 45# steel, precision-ground
Main Drive Type: Gearbox-driven or chain-driven system
Power: Adapted to 380V/50Hz/3Phase for the UAE
Motor Power: 7.5–15 kW, depending on machine length and tooling
Cutting Method: Hydraulic post-cutting
Blade Material: Cr12MoV (hardened steel)
Control Type: PLC-based automatic control system
Operating Mode: Fully automatic with HMI touchscreen interface
De-coiling System: Manual or hydraulic decoiler (3–5 tons capacity)
Punching/Notching System: Optional (hydraulic punching with pre-programmable accuracy)
Machine Frame: H-beam welded base with leveling feet
Thickness of Frame Steel: 18–25 mm
Profile Customization
Profile Shape: Custom-designed to customer drawings
Q: Can the machine be customized for our profile?
A: Yes, Machine Matcher offers full customization based on your profile drawings.
Profile Width and Depth: Customized as per customer needs
Length Tolerance: ±1.0 mm
Safety Features:
Full protective covers/guards
Emergency stop buttons at key locations
Overload protection system
Location & Availability
All cladding system roll forming machines are new, custom-built, and available from Machine Matcher for delivery throughout the UAE, including Abu Dhabi, Dubai, Sharjah, and all major industrial hubs. Each machine is tailored to your profile and operational requirements.
Materials Commonly Used
These machines are typically used with:
Material Types:
Galvanized steel
Aluzinc
Pre-painted coils
Aluminum
Stainless steel
Material Gauge:
Ranges from 30 gauge (0.3 mm) to 18 gauge (1.2 mm)
Yield Strength:
Between 245–550 MPa (36–80 ksi)
Pricing
Prices Start From: USD $45,000 (standard machine without punching system)
What Affects the Final Price:
Custom tooling requirements
Additional punching/notching systems
Coil handling upgrades (hydraulic decoiler, stackers, etc.)
Length and complexity of profile
Motor type (servo vs. standard)
Speed and automation upgrades
Note: Pricing is always determined based on the level of customization required. Contact us for a tailored quotation.
Delivery and Support
Lead Time: 30–60 days for production
Shipping: Varies based on destination port in the UAE
Installation Support:
Yes, we offer remote video guidance and on-site installation on request.
Warranty: All machines are covered by a 1-year warranty from dispatch.
Support: Durable long-term maintenance and technical support included.
Customization Options
Every machine supplied by Machine Matcher is built to your specific requirements. Custom options include:
Profile shaping based on CAD or physical sample
Coil width and gauge range expansion
Color touchscreens with multi-language support
Servo-driven cutting for enhanced accuracy
Integrated punching and embossing units
Upgraded automation for higher production speeds
CE/ISO standard builds available on request
If you have profile drawings, production requirements, or coil material details, please email them to [email protected] for the best customized quote and machine configuration.
Frequently Asked Questions (FAQ)
Q: Can the machine be customized to produce different cladding shapes?
A: Yes. All machines are custom-built to match your cladding profile, dimensions, and production volume.
Q: Do you offer installation in the UAE?
A: Yes, remote support via video is always available. On-site installation is offered on request.
Q: How long will it take to receive the machine in Dubai?
A: Production takes 30–60 days. Shipping to Dubai typically takes 3–4 weeks depending on port schedules.
Q: What’s included in the machine package?
A: Each package includes the roll forming machine, operating system, user manual, standard tool kit, and optional decoiler and stacker if selected.
Q: Can we use high-strength steel coils?
A: Yes, the machine supports material yield strength up to 550 MPa (80 ksi).
Unique Selling Propositions (USPs)
✅ Custom-Engineered: Designed specifically to match your cladding profile
✅ High-Speed Production: Reduces cycle time, increasing daily output
✅ Precision Forming: Tolerances kept tight for flawless panel fit
✅ Low Maintenance: Built for long operational life with minimal downtime
✅ User-Friendly Controls: Automated, PLC-controlled operation with touchscreen HMI
✅ Flexible Coil Inputs: Accepts multiple material types and gauges
✅ On-Site Support: Installation and training available in UAE
✅ Durable Construction: Built to handle continuous production with robust components
✅ Cost-Efficient: Lower waste, faster production = reduced cost per panel
For custom machine configurations, profile-based design, and expert support across the UAE, contact Machine Matcher today.
All machines described above are proudly offered and supported by Machine Matcher only.
