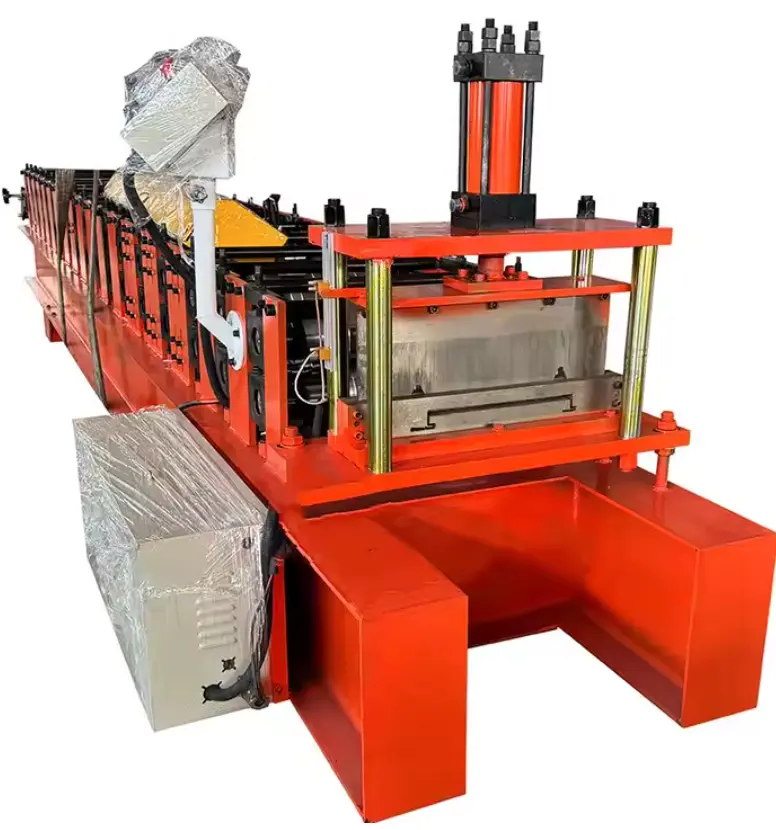

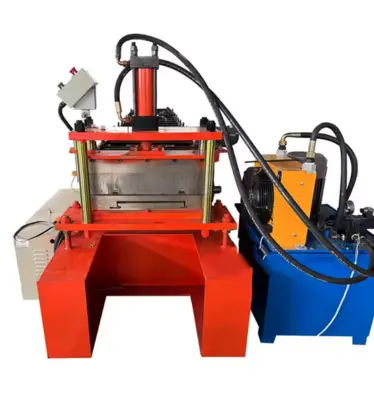

Cladding & Facade System Roll Forming Machine – UAE Edition
High-Speed Precision Roll Forming for Modern Architectural Solutions
Product Overview:
The Cladding & Facade System Roll Forming Machine is purpose-built to produce high-quality architectural panels used in commercial, industrial, and residential building envelopes. Designed for precision, speed, and reliability, this roll forming machine is the ideal choice for companies in the United Arab Emirates seeking to deliver modern façade and cladding systems with accuracy and aesthetic appeal.
This machine supports the production of various profile shapes tailored to rainscreens, ventilated facades, curtain wall cladding, and decorative wall systems, accommodating the exacting requirements of Gulf region construction projects. Whether you're fabricating aluminum composite panels or pre-painted steel cladding, this roll forming solution delivers consistent quality and reduced production waste.
Industries Served:
Construction & Architecture: Cladding panels for building facades, rainscreens, and interior wall systems.
Real Estate Development: Residential and commercial high-rises.
Infrastructure Projects: Airports, stadiums, public buildings with high design standards.
Manufacturing & Industrial Facilities: Protective and decorative exterior panels.
Machine Type & Capabilities:
Machine Type: Cladding & Facade Panel Roll Forming Machine
Capabilities: Continuous, high-speed roll forming for complex architectural profiles with optional pre-punching for fixing slots or joint holes. Built-in cutting and automation systems provide minimized downtime and maximum throughput.
Examples of Utilization in Industry:
Production of cassette panels, U-panels, shadow gap panels, flat lock tiles, and ribbed cladding used in ultra-modern facades and ventilated building systems.
Machine Technical Specifications:
Specification
Detail
Machine Type
Cladding & Facade Panel Roll Forming Machine
Production Speed
15–25 meters/min (standard); higher with servo feeders
Material Thickness Range
0.4–1.2 mm
Material Width Range
300–1250 mm (depending on profile)
Material Types
Galvanized Steel (GI), Pre-painted Steel (PPGI), Aluminum, Stainless Steel
Material Yield Strength
Up to 550 MPa (80 KSI)
Roller Material
GCr15 hardened steel
Roller Surface Treatment
Hard chrome-plated (anti-corrosive, wear-resistant)
Number of Forming Stations
16–24 stations (varies with profile complexity)
Roller Shaft Diameter
70–90 mm
Shaft Material
High-grade 45# steel, precision ground
Main Drive Type
Chain or gearbox drive
Power (UAE compatible)
380V / 50Hz / 3-Phase
Motor Power
11–18.5 kW depending on machine size
Cutting Method
Hydraulic post-cutting system
Blade Material
Cr12Mov hardened die steel
Control Type
PLC with touch screen (Siemens/Delta/Schneider)
Operating Mode
Fully automatic – feeding, forming, cutting
De-coiling System
Manual or hydraulic de-coiler (3–10 tons)
Punching/Notching System
Optional CNC or hydraulic punching unit
Machine Frame
Welded structural steel with heat treatment
Thickness of Frame Steel
18–25 mm
Profile Shape
Custom – U panel, flat lock, box, cassette, Z-shape, etc.
Profile Width and Depth
Width: 200–600 mm; Depth: up to 40 mm
Length Tolerance
±1.0 mm
Safety Features
Full protective guards, emergency stop, overload protection, CE standard
Material and Gauge Recommendations:
Common Materials:
Pre-painted steel (PPGI), Galvanized Steel (GI), Aluminum Alloy (3003/5052), Stainless Steel
Material Gauge Range:
0.5 mm – 1.2 mm
Yield Strength Range:
180–550 MPa (up to 80 KSI depending on application)
Pricing and Customization:
Prices Start From: USD $45,000+
What Affects the Final Price:
Profile complexity and required tooling
Degree of automation (manual vs. automatic de-coiler, stacker, etc.)
Punching system inclusion
Control system brand (basic vs. premium)
Volume and delivery requirements
To get the most accurate quote, please send your profile drawings, material details, and production needs to: [email protected]
Location & Delivery:
All machines are new and custom-built to meet your specific profile and machine requirements.
Delivery available to Abu Dhabi, Dubai, Sharjah, and all other Emirates from our international manufacturing partners with UAE-compatible specifications and support.
Highlighted Advantages – Why Choose This Machine?
Custom Profile Engineering: Tailored designs for complex architectural panels
Built for UAE Standards: 380V 3-phase compatibility, tropicalized components
High Output & Precision: Reduced material waste and perfect repeatability
Durable & Low Maintenance: Chrome-plated rollers and hardened shafts
Full Automation Available: Optional PLC remote access and auto stackers
Support & Warranty: 1-year warranty + long-term service and parts availability
Customization Options Include:
Servo feeder for higher precision and speed
Automatic stacker
Remote troubleshooting system
Embossing roller for decorative patterns
Coil car & hydraulic uncoiler system
Quick-change tooling sets for multiple profile formats
Frequently Asked Questions (FAQs):
Q: Can this machine produce different panel profiles?
A: Yes. With customized tooling, it can produce multiple cladding designs like U-panels, flat lock panels, and cassette styles.
Q: Is the machine suitable for aluminum composite material (ACM)?
A: Yes, with adjustments to roller material and tension systems, it can process ACM and soft aluminum materials.
Q: What is the standard delivery time to the UAE?
A: Standard delivery is 50–70 days depending on customization and factory schedule.
Q: Is training or installation included?
A: Optional on-site or remote installation and training are available. Let us know your needs when requesting a quote.
Q: What maintenance is required?
A: Regular lubrication, alignment checks, and timely replacement of wear parts (cutting blades, seals) are recommended. Maintenance support is included for the first year.
Warranty & Support:
All machines include:
1-Year Warranty from dispatch
Spare Parts & Technical Support
Optional on-site setup and training
Lifetime remote support for software and PLC diagnostics
For all profile-based inquiries, email your requirements and profile sketches to:
[email protected]
Let Machine Matcher deliver the precision and power you need for modern façade fabrication in the UAE.
