Product Overview

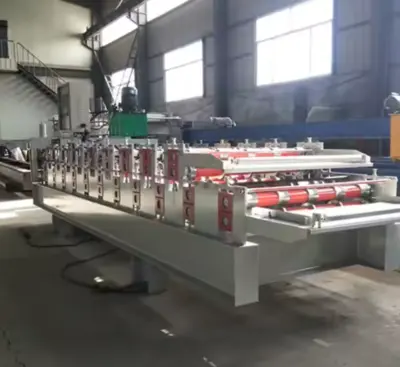

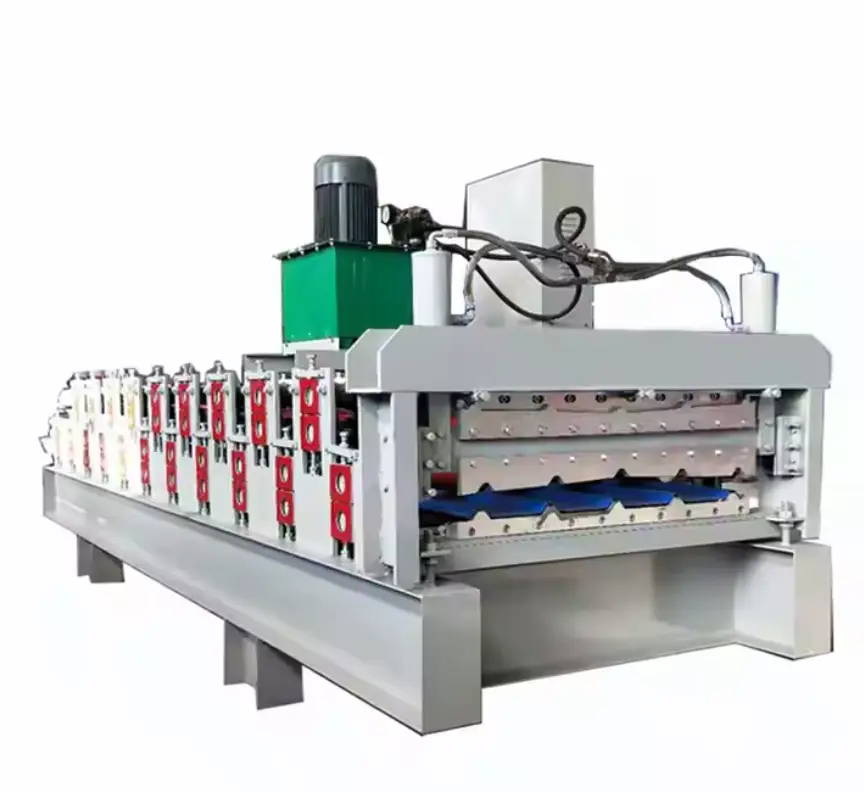

The Double Layer Roof Panel Roll Forming Machine is a dual-profile production solution engineered for high efficiency and space-saving performance. Specifically designed to cater to roofing panel manufacturers in the UAE—including Dubai, Abu Dhabi, Sharjah, and beyond—this machine can form two distinct metal roof profiles within a single compact line. Users can switch between profiles using a hydraulic or manual shifting system, making it ideal for companies needing flexibility without sacrificing production throughput.
Whether producing corrugated panels and trapezoidal sheets or other combinations, this machine supports roofing contractors, construction firms, and steel structure manufacturers looking to diversify their offerings and maximize return on investment.
Industries Served
Construction & Roofing: Contractors and building developers use the machine to manufacture profiles for industrial, commercial, and residential roofing systems.

Steel Fabrication: Metal processing and fabrication businesses integrate the machine to supply roof sheets for warehouses, malls, and villas.

Prefab Buildings & Modular Construction: Provides roof paneling for prefabricated housing units and portable building solutions.

Infrastructure Projects: Used for infrastructure-related roofing applications such as logistics centers, rail stations, airport terminals, and government buildings.
Machine Type & Capabilities
Machine Type: Double Layer Roof Panel Roll Forming Machine

Production Speed: 12–18 meters/min (varies with material and profile)

Material Thickness Range: 0.3–0.8 mm

Material Width Range: 1000–1250 mm

Material Types: Galvanized Steel, Pre-painted Galvanized Steel (PPGI), Galvalume, Aluminum

Material Yield Strength: 230–550 MPa (33–80 KSI)
Typical Materials Used
Material Type: PPGI, GI, Aluminum

Thickness: 0.3 mm to 0.8 mm

KSI/Yield Strength: 33 KSI to 80 KSI (230–550 MPa)
Customization Options
Profile combinations (trapezoidal + corrugated, standing seam + step tile, etc.)

Brand of PLC and electronics (Delta, Siemens, Schneider)

Manual or automatic stacker

Coil car or hydraulic decoiler

Servo feeder for high-precision control

Color touchscreen HMI

Remote access and data logging module (upon request)
Prices Start From
USD $28,000 – $45,000+ depending on profile complexity, extras, and production capacity.
What Affects the Final Price:

Profile combination complexity

Roll design and forming station count

Automation level (manual vs. automatic stackers, decoilers)

Punching or notching requirements

Servo drive or PLC brand upgrades
Highlight: Why Choose This Machine
Dual Functionality in One Frame

Save up to 40% floor space and eliminate the need for a second production line.
Quick Profile Switching

Hydraulic or manual system enables seamless changeover between top and bottom profiles.
High Production Efficiency

Speeds up to 18 m/min boost your output capacity while maintaining profile accuracy.
Built for UAE Conditions

Optimized for hot climate durability, sand-resistant sealing, and reliable 380V/50Hz compatibility.
Lower Maintenance Costs

Durable rollers and industrial-grade parts mean less downtime and fewer replacements over time.
Customizable and Expandable

Adapt the machine to your future business needs by upgrading control systems, adding automation, or changing profiles.
Delivery & Support
All machines are new and custom-built to your specifications. Delivery is available across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. Our partners provide installation guidance, training, and technical support.
Each machine includes:
1-Year Warranty from Dispatch

Maintenance and Repair Support

Email Profile Drawings to: [email protected]
Common Questions & Answers
Q: Can I run both layers at the same time?

A: No. Only one profile can be formed at a time. The system includes a hydraulic or manual switch to change between layers.
Q: How long does it take to switch profiles?

A: On average, 3–5 minutes using a hydraulic changeover mechanism.
Q: Can I customize the top and bottom profiles?

A: Yes. You can choose any combination of trapezoidal, corrugated, tile, or standing seam profiles based on your local demand.
Q: What maintenance is required?

A: Regular lubrication, alignment checks, and roller surface inspections. We provide a maintenance guide with every machine.
Q: Is remote troubleshooting possible?

A: Yes. Optional remote PLC access and diagnostics are available for easy troubleshooting from our technical team.
Ready to Quote?
To receive your tailored machine quote, please send your profile drawings, gauge range, and production goals to:
[email protected]
Let us help you choose the best configuration for your roofing panel business in the UAE.
