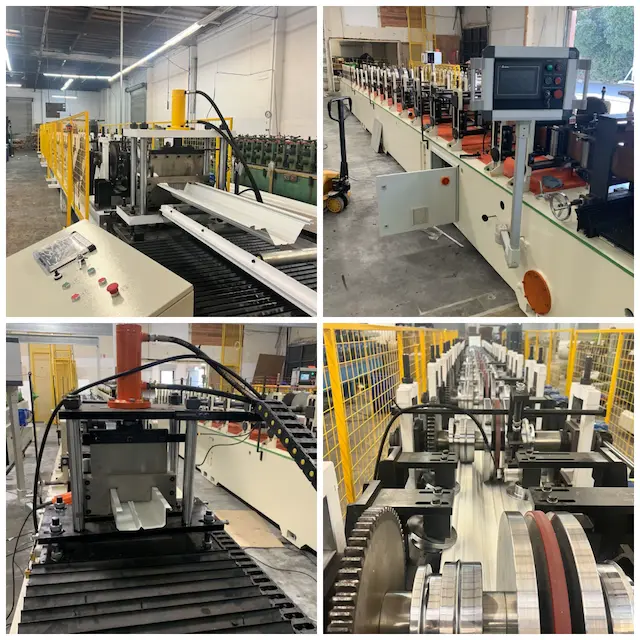

The Flat Patio Pan Roll Forming Machine is a specialized piece of equipment designed for the production of flat patio panels, commonly used in residential and commercial outdoor spaces. It is tailored to meet the high demands of the U.S. market, ensuring compliance with local power and operational standards. Its robust construction, precision engineering, and efficient operation make it ideal for fabricators and manufacturers aiming to produce high-quality patio pans quickly and cost-effectively.
Profiles Produced
The machine is specifically engineered to produce flat patio pan profiles. These profiles are widely used in patio and awning systems, offering durability and aesthetic appeal. Key profile specifications include:
Material Compatibility: Aluminum, galvanized steel, or other coated metals
Panel Width: Customizable based on project requirements (standard widths commonly range between 12" to 24")
Gauge Thickness: 0.018–0.040 inches
Design: Flat and smooth finish for seamless installation
Additional Features
High-Speed Production: Operates at speeds exceeding 85 feet per minute, making it ideal for high-volume manufacturing.
Precision Cutting: Flying hydraulic shear ensures clean cuts without stopping the machine.
User-Friendly Controls: The integrated computerized system allows operators to adjust settings in inches, reducing setup time.
Compact Design: With a footprint of 30ft x 5ft x 4ft, the machine fits comfortably in most production spaces.
Durability: The sturdy frame and high-quality components ensure longevity and reliable performance.
Setup and Installation
The machine is shipped in a ready-to-assemble format with comprehensive installation manuals. Installation services and training can also be provided within the USA, ensuring operators are fully equipped to run the machine efficiently.
Maintenance Requirements
Routine Checks: Daily inspections for wear and tear on rollers, chains, and drive systems.
Lubrication: Regular lubrication of moving parts to ensure smooth operation.
Electrical Maintenance: Periodic checks on the power system and controls to avoid downtimes.
Cleaning: Keep the machine clean to prevent material build-up and ensure precision.
FAQs
1. What materials can this machine process?
The Flat Patio Pan Roll Forming Machine is compatible with materials like aluminum, galvanized steel, and coated metals, typically ranging in thickness from 0.018–0.040 inches.
2. How much space does the machine require?
The machine has a footprint of 30ft x 5ft x 4ft, making it compact enough for most manufacturing facilities in the U.S.
3. What is the power requirement for this machine?
The machine operates on a 240V, 3-phase, 60Hz power supply, which aligns with standard U.S. industrial power setups.
4. How fast can the machine produce panels?
The machine operates at a speed of 85 feet per minute or more, ensuring high production efficiency.
5. Can I adjust the panel length and width?
Yes, the computerized controls allow precise adjustments in inches, enabling custom panel lengths and widths.
6. Does it come with an uncoiler?
Yes, the machine includes a manual uncoiler for coil handling.
7. Is there technical support available in the USA?
Yes, technical support, installation services, and training are available within the United States.
This machine is a reliable and efficient choice for U.S.-based manufacturers looking to produce high-quality patio panels with precision and speed. With customizable features, robust design, and excellent local support, the Flat Patio Pan Roll Forming Machine is an excellent investment for your production needs.
Machine Footprint: 30ft x 5ft x 4ft
Drive System: Gearbox drive or chain drive options
Cutting Mechanism: Flying hydraulic shear for precise and clean cuts
Power Requirements: 240V, 3-phase, 60Hz
Speed: Up to 85 feet per minute or more, ensuring high production output
Control System: Computerized controls with readout in inches for easy setup and operation
Uncoiler: Manual uncoiler for coil handling
Materials Processed: Aluminum, steel, and other metals commonly used in patio pan profiles
Material Gauge: Typically supports a range of 0.018–0.040 inches (varies based on custom requirements)
