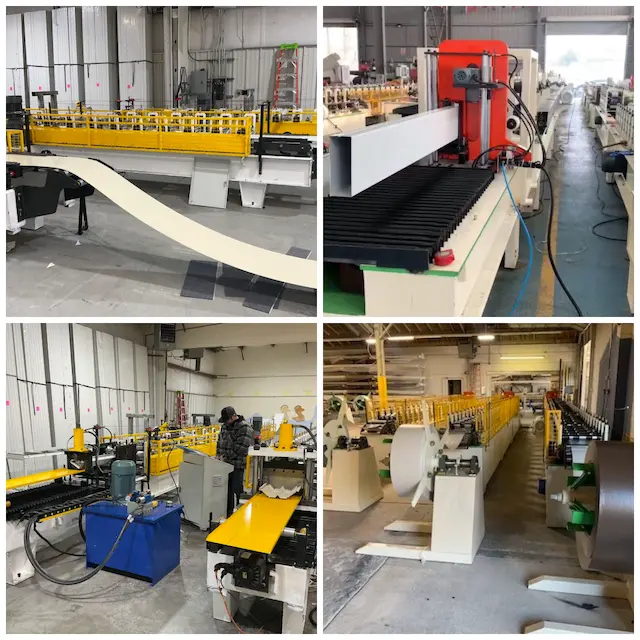

Steel Pergola Bracing Purlin Roll Forming Machine USA

The Steel Pergola Bracing Purlin Roll Forming Machine is a precision-engineered solution tailored for the production of high-quality bracing and purlins used in pergola structures. Designed to meet the specific demands of the U.S. market, this machine ensures efficient manufacturing while adhering to American safety and power standards. With its robust design and advanced control systems, it is ideal for businesses involved in the construction and structural support industries.
Profiles Produced
The Steel Pergola Bracing Purlin Roll Forming Machine is designed to manufacture a variety of bracing and purlin profiles used in pergolas. These profiles are typically produced with the following specifications:
Materials: Galvanized steel, cold-rolled steel, aluminum

Material Thickness: 0.5mm–2.5mm

Profile Widths: 2 inches–8 inches

Applications:
Structural bracing for pergolas
Purlins for roofing and shading systems
Support elements in decorative and functional pergola designs
The machine ensures consistent output quality, producing precise and uniform profiles suitable for both residential and commercial projects.
Setup and Installation
Pre-Installation Preparation: Ensure the workspace has sufficient space to accommodate the machine's footprint (33 ft x 4 ft) and the necessary power supply (240V, 3-phase, 60Hz).

Installation Process: The machine is delivered fully assembled. Secure the machine on a flat, stable surface and connect it to the power supply.

Calibration and Testing: The Delta PLC system simplifies calibration, ensuring quick setup for desired profile dimensions and materials.

Operator Training: Basic training on the PLC system and safety measures is recommended for operators.
Maintenance Requirements
Daily Maintenance: Clean rollers and stations to prevent material buildup.

Weekly Checks: Inspect the chain drive and gearbox for proper lubrication.

Monthly Maintenance: Test the control system, safety covers, and E-stops for functionality.

Annual Overhaul: Conduct a detailed inspection of all moving parts and replace worn-out components.
Question and Answer Section
Q1: What materials can this machine process?
A: This machine is designed to process galvanized steel, cold-rolled steel, and aluminum with a material thickness range of 0.5mm to 2.5mm.
Q2: What is the power requirement for the machine in the U.S.?
A: The machine operates on 240V, 3-phase, 60Hz, which is the standard power supply in the U.S.
Q3: How many profiles can this machine produce?
A: The machine can produce various purlin and bracing profiles, with profile widths ranging from 2 inches to 8 inches.
Q4: What safety features are included?
A: The machine is equipped with safety covers to prevent accidents and multiple emergency stops (E-Stops) for quick shutdown during emergencies.
Q5: How fast can the machine operate?
A: The forming speed is between 70 and 80 feet per minute, ensuring efficient production.
Q6: Is operator training required?
A: Basic training is recommended for understanding the Delta PLC system and safety procedures.
This machine is a reliable and efficient solution for manufacturers looking to produce high-quality steel pergola bracing and purlin profiles in the U.S. market. Its advanced features, compliance with U.S. standards, and safety measures make it a valuable addition to any roll forming production line.

Forming Speed: 70–80 ft/min
Machine Weight: 6 Ton
Machine Footprint: 33 ft x 4 ft
Main Power Supply: 240V, 3-phase, 60Hz (U.S. Standard)
Motor Power: 8 HP
Drive System: Chain Drive with Gearbox
Stations: 22 Stations for precise forming
Control System: Delta PLC for precise automation and user-friendly operation
Safety Features:Safety covers to prevent accidentsEmergency Stops (E-Stops) strategically placed for quick machine shutdown
Safety covers to prevent accidents
Emergency Stops (E-Stops) strategically placed for quick machine shutdown
