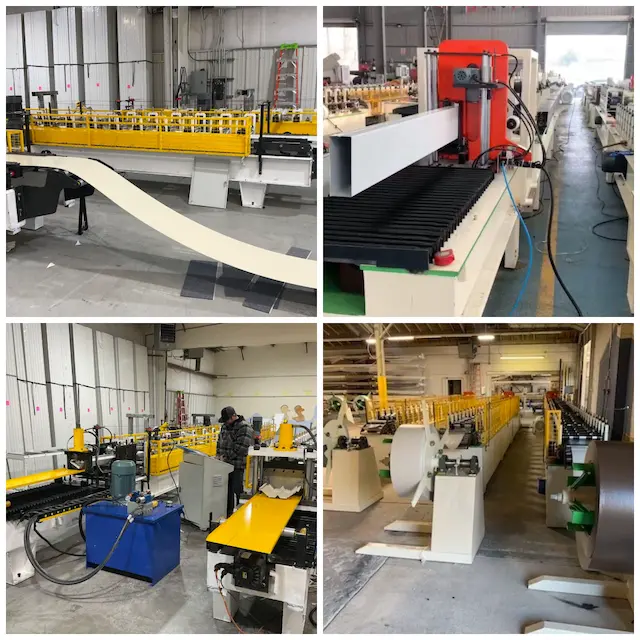

Steel Pergola Deck Framing Joist Roll Forming Machine USA

The Steel Pergola Deck Framing Joist Roll Forming Machine is designed to efficiently produce steel framing profiles used in pergola deck constructions. Engineered to meet the specific needs of the USA market, the machine is built with robust materials, ensuring long-term reliability and precise profile formation. This roll forming machine is suitable for both small-scale and large-scale projects, offering high-speed performance and consistent output quality.
Key Features
High Speed and Efficiency:
With forming speeds of up to 80 feet per minute, the machine ensures timely project completion without compromising accuracy.

Robust Build:
The 6-ton machine weight ensures stability during high-speed operation, minimizing vibration and enhancing precision.

Compact Footprint:
The 33 ft x 4 ft design allows for easy integration into existing production facilities.

Advanced Control System:
The Delta PLC system offers real-time monitoring and precise control over production parameters, reducing downtime and waste.

Safety Standards:
Equipped with comprehensive safety measures, including full safety covers and E-stops, the machine meets OSHA and other safety regulations.
Profiles Produced
The machine is specifically designed to produce steel framing profiles for pergolas and deck structures. These profiles are typically used in residential, commercial, and outdoor construction projects.
Profile Specifications:
Materials: Galvanized steel, aluminum-zinc-coated steel, or pre-painted steel

Material Thickness: 0.8 mm to 2.0 mm

Profile Width: Adjustable between 50 mm to 300 mm

Application Areas:
Pergola structures
Deck framing
Light steel construction projects
Custom framing solutions for outdoor spaces
Frequently Asked Questions
1. What type of materials can this machine process?
The machine is compatible with galvanized steel, aluminum-zinc-coated steel, and pre-painted steel within a thickness range of 0.8 mm to 2.0 mm.
2. What is the forming speed of this machine?
The machine operates at a forming speed of 70-80 feet per minute, making it ideal for high-efficiency production.
3. Is this machine suitable for small-scale manufacturers?
Yes, the compact footprint and efficient operation make it suitable for small-scale manufacturers while still catering to large-scale demands.
4. What safety features does the machine include?
The machine includes full safety covers, emergency stops (E-stops), and complies with U.S. safety standards, ensuring operator safety.
5. What is the main power requirement for this machine?
The machine operates on 240 V, 3-phase, 60 Hz power, commonly available in the USA.
6. Can the profile width be adjusted?
Yes, the machine allows for adjustable profile widths between 50 mm and 300 mm, catering to various project requirements.
7. What control system is used in this machine?
The machine is equipped with a Delta PLC system, offering a user-friendly interface and precise control over production processes.
Conclusion
The Steel Pergola Deck Framing Joist Roll Forming Machine is a versatile and reliable solution for producing steel profiles used in pergola and deck framing. Its advanced features, robust build, and high-speed performance make it an excellent investment for manufacturers in the USA. With a focus on safety, precision, and efficiency, this machine is designed to meet the evolving needs of the construction industry.

Forming Speed: 70-80 feet per minute
Machine Weight: 6 tons
Machine Footprint: 33 ft x 4 ft
Main Power: 240 V, 3-phase, 60 Hz
Motor: 8 HP
Gearbox: Chain Drive system for optimal torque transfer
Stations: 22 forming stations for precise profile shaping
Control System: Delta PLC system with user-friendly interface
Safety Features:Full safety coversEmergency stops (E-stops) for quick shutdownCompliance with U.S. safety standards
Full safety covers
Emergency stops (E-stops) for quick shutdown
Compliance with U.S. safety standards
