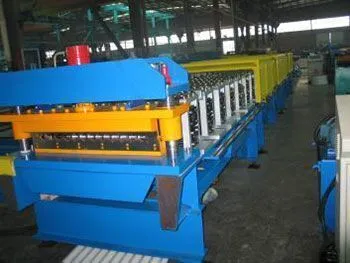

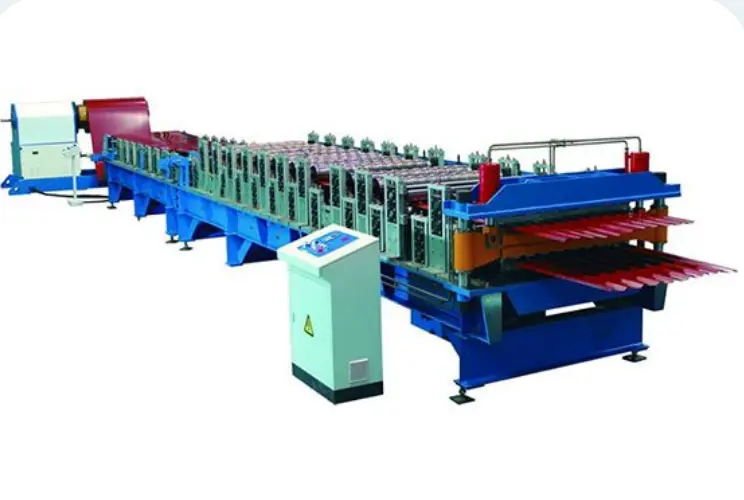

High-Speed Double Layer Roof Panel Roll Forming Machine in Shaoxing City, China

This roll forming machine is ideal equipment used in steel structure & cold roll forming industry, it features double layers and can produce different profiles. It integrates mechanic, electric and hydraulic systems, therefore it can ensure a high working efficiency and can work in a full automation.
Item
Unit
Parameter
Remark

Suitable panel materials
Type

Color plate, aluminium sheet, galvanized plate
Depending on customers' requirement

Thickness
mm
0.4-0.8, 0.8-1.2 or 1.2-1.5

Yield strength
Mpa
≤550
As per customers' material characteristic

Width
mm
≤1500
According to different profile shape

Coil weight
T
5, 8 or 10
Optional

Working speed
m/min
≤20-50
According to customers' desired production capacity and requirement

Roller material

45steel, 38CrMoAl, GCr15 or D2

Roller driving mode

Independent stander, built-in chain drive

Electric control system

Industrial computer PLC frequency control

Console mode

Touch screen+ button

Total power
kW
12.7
As per technical requirement

Outline dimensions (LXWXH)
m
30X3.5X2
