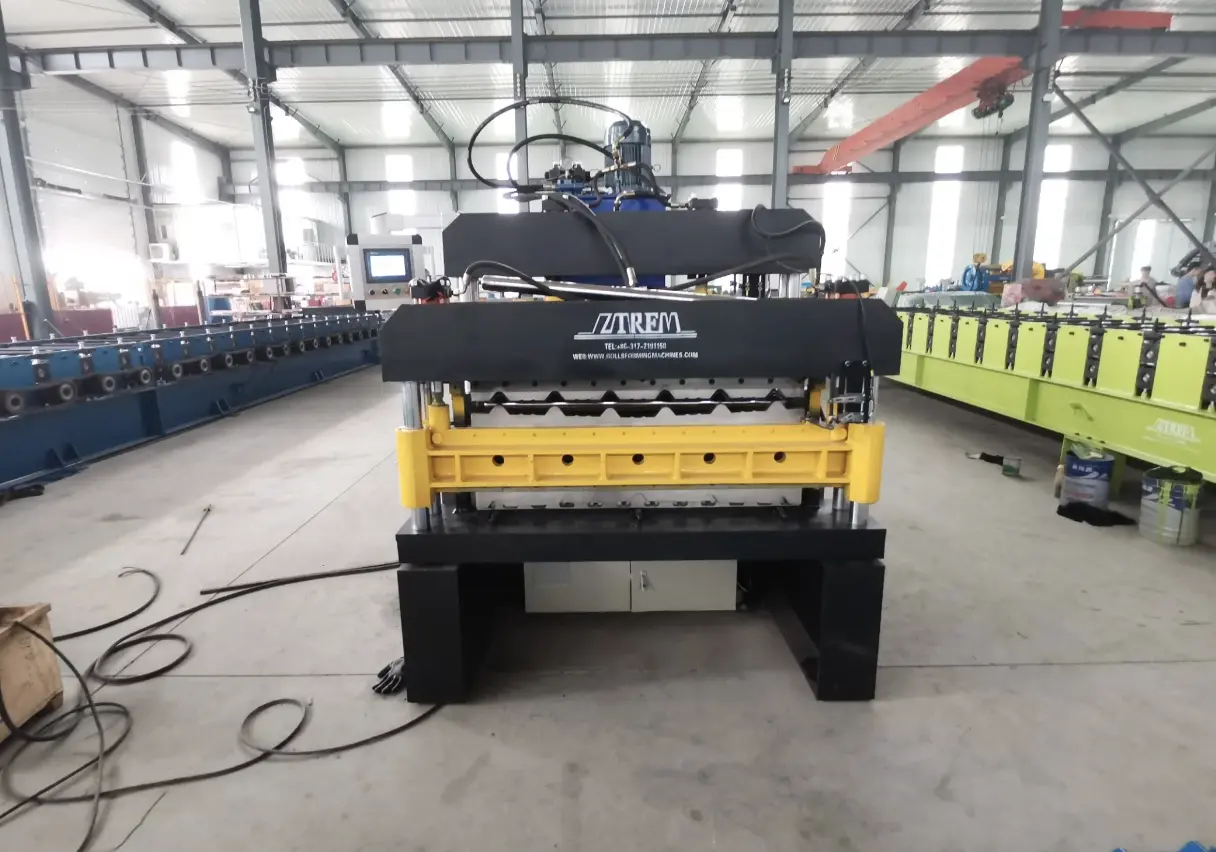

The double layer roll forming machine consist of uncoiler and its base,infeed guides,fixed position driven forming machine, shearing device,hydraulic station,PLC control console and so on.
Suitable material
Color steel sheet ,galvanized steel sheet, aluminium sheet
2
Width of material
1000mm or as need
3
Thickness of material
0.3-0.8mm or as your needs
4
Working speed
10-20m/min
5
Electrical control system
PLC control system
6
Shaft diameter
80mm/85mm
7
Dimension
7500x1500x1910mm
8
Weight
About 7 T
9
Voltage
380V 3phase 50HZ or as the customer's requirements
10
Material of roller
High grade 45# forged steel plated with hard chrome plating
11
Material of cutting
Cr12 mould steel with quenched treatment
12
Working time
Can be 24 hours
13
Workers
1-2 only
