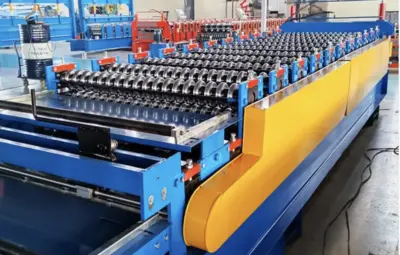

Steel Roofing Sheet Roll Forming Machine Double Layer Metal Roof Machinery
Main motor power
5.5 kw
Drive
1'' single chain
Type:
Wall board
Main shaft dia
¢70mm
material
45# forge steel and quenched
Roller material
45# high grade forge steel ,chrome coated 0.05mm

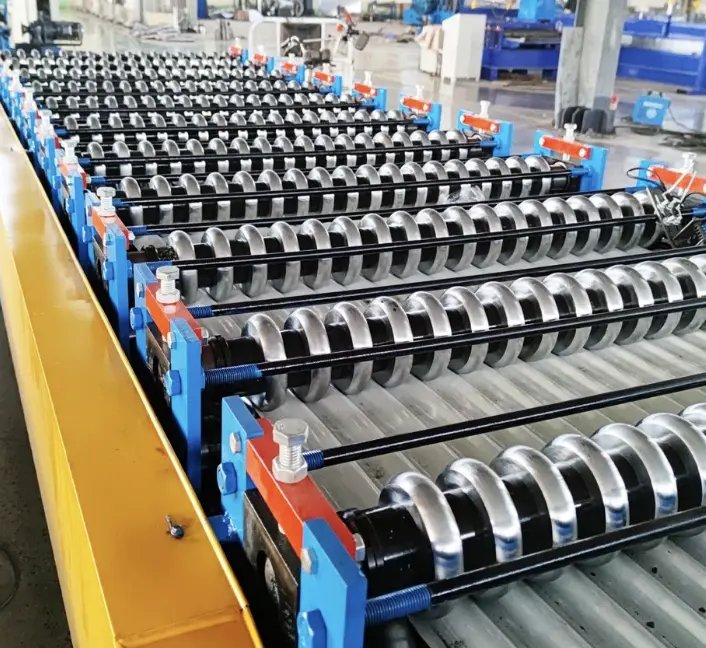

Roll station
11 groups for corrugated sheet and 13 groups for ribtype sheet
Raw material
0.3-0.8mm
Coil width
1220mm
Working speed
10m--15m/min(Exclude cutting time)
Length Tolerance
±1.5mm
Weight of machine
About 6 ton
Size of machine
About 6500×1800×1500mm L x W x H
Color of machine
Yellow and Blue
Coder
Omron, made in Japan
Control
PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel
touching screen
Cutting
Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power
3KW
Blade material
Cr12mov,quenched 58°-62°
Working pressure
16mpa
Cutting tolerance
+/- 1.0mm
