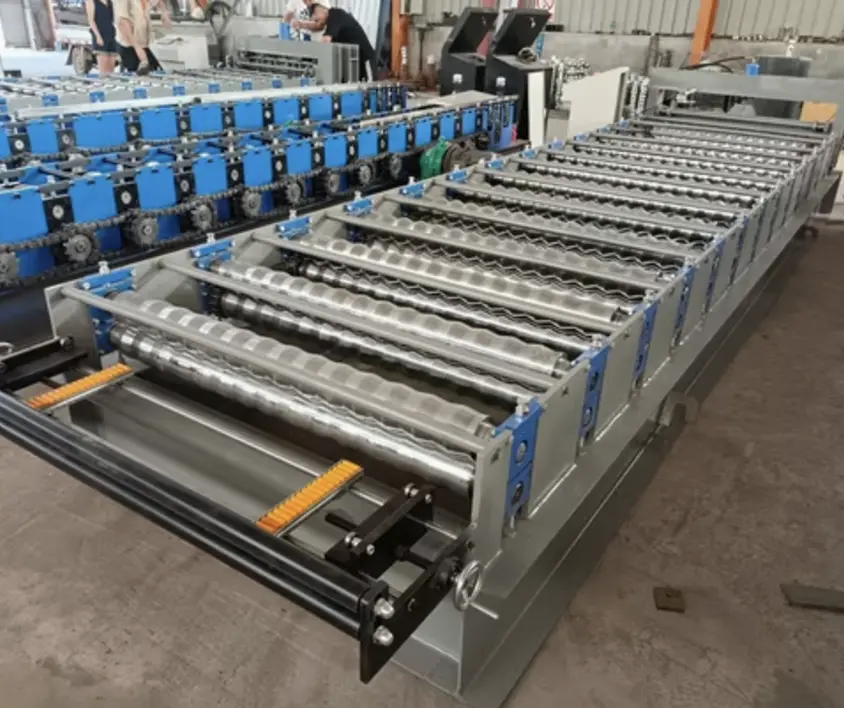

Corrugated Roof Sheet Roll Forming Machine in the USA

The Corrugated Roof Sheet Roll Forming Machine is a specialized equipment used to produce corrugated roofing sheets, which are widely used in residential, commercial, and industrial roofing and cladding applications. The machine operates by feeding metal coils into a series of rollers, which gradually shape the material into the desired corrugated profile.
These machines are designed to handle various materials such as galvanized steel, aluminum, and pre-painted steel. They are popular in the USA due to their ability to produce durable and aesthetically appealing roofing materials. The machines are often equipped with advanced control systems to ensure precision, high efficiency, and minimal waste during production.
Applications in the USA
Residential homes: Roofing and siding
Commercial buildings: Warehouses, shopping malls
Industrial facilities: Factories, storage units
Agricultural structures: Barns, silos, and greenhouses
Setup and Installation Process
Unpacking and Positioning: The machine is delivered in modular parts. It needs to be positioned on a flat, stable surface.

Electrical Connection: Ensure compatibility with the U.S. power supply (typically 220V/60Hz or 440V/60Hz).

Coil Loading: Load the metal coil onto the uncoiler.

Calibration: Adjust the rollers and cutting system to match the profile design.

Test Runs: Run a sample coil to verify quality and make adjustments.

Production Start: Once calibrated, the machine can operate continuously.
Maintenance Requirements
Daily Maintenance:
Inspect rollers and clean debris.
Check for loose bolts or screws.

Weekly Maintenance:
Lubricate moving parts.
Inspect electrical components for wear.

Monthly Maintenance:
Perform a full system check for wear and tear.
Calibrate the cutting system.
Question and Answer Section
Q1: What materials can the machine handle?
A1: The machine is compatible with galvanized steel, aluminum, and pre-painted steel. Material thickness should range between 0.3mm and 0.8mm.
Q2: What is the typical production speed?
A2: The machine can produce at a speed of 10-15 meters per minute, depending on the profile and material type.
Q3: Is the machine compliant with U.S. standards?
A3: Yes, the machine is designed to meet U.S. electrical and safety standards, including UL and OSHA compliance.
Q4: How is the machine controlled?
A4: The machine features a PLC control system, usually Siemens or Mitsubishi, with a user-friendly touchscreen interface for automation and monitoring.
Q5: Can the machine produce custom profiles?
A5: Yes, the machine can be customized to produce specific corrugated profiles based on customer requirements.
Q6: What is the average price range?
A6: The price can range from $30,000 to $100,000, depending on specifications, optional features, and capacity.
Q7: What warranty is provided?
A7: Most manufacturers offer a 1-2 year warranty covering parts and service. Additional warranties may be available upon request.
Q8: How do I ensure long-term machine efficiency?
A8: Regular maintenance, using high-quality materials, and ensuring proper calibration will help maintain machine efficiency over time.

Material Specifications:Material Type: Galvanized steel, aluminum, pre-painted steelMaterial Width: 1000mm, 1200mm, or as per requirementMaterial Thickness: 0.3mm to 0.8mm
Material Type: Galvanized steel, aluminum, pre-painted steel
Material Width: 1000mm, 1200mm, or as per requirement
Material Thickness: 0.3mm to 0.8mm
Machine Specifications:Rollers: High-grade steel (e.g., GCr15) with hard chrome platingRoller Stations: 18-25 stations (varies with profile)Main Motor Power: 5.5 kW to 7.5 kWHydraulic Cutting System: 3 kW hydraulic pump for precise cuttingForming Speed: 10-15 meters per minute (can vary with customization)PLC Control System: Siemens or Mitsubishi PLC with touch screen for automationFrame Structure: Heavy-duty steel frame for stabilityCutting Blade: Cr12 mold steel with heat treatment for durability
Rollers: High-grade steel (e.g., GCr15) with hard chrome plating
Roller Stations: 18-25 stations (varies with profile)
Main Motor Power: 5.5 kW to 7.5 kW
Hydraulic Cutting System: 3 kW hydraulic pump for precise cutting
Forming Speed: 10-15 meters per minute (can vary with customization)
PLC Control System: Siemens or Mitsubishi PLC with touch screen for automation
Frame Structure: Heavy-duty steel frame for stability
Cutting Blade: Cr12 mold steel with heat treatment for durability
Optional Features:Automatic stackersDecoilers (manual or hydraulic, with capacities from 3 tons to 10 tons)Pre-punching and notching systemsRemote monitoring via PLCCoil car for easier coil handling
Automatic stackers
Decoilers (manual or hydraulic, with capacities from 3 tons to 10 tons)
Pre-punching and notching systems
Remote monitoring via PLC
Coil car for easier coil handling
