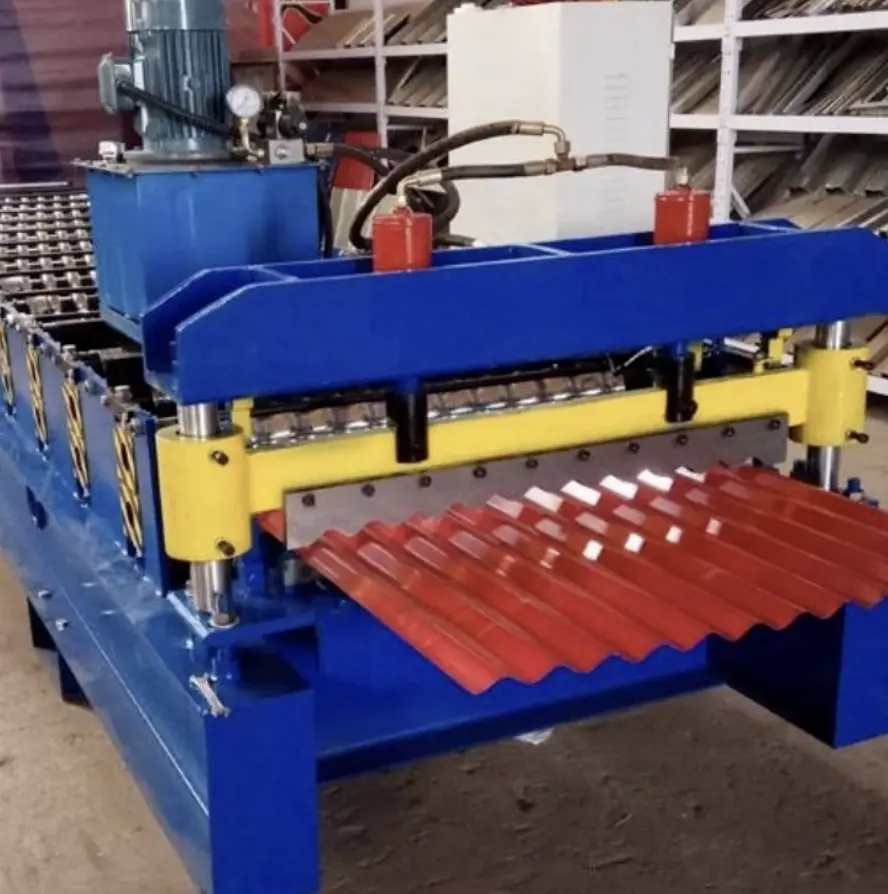

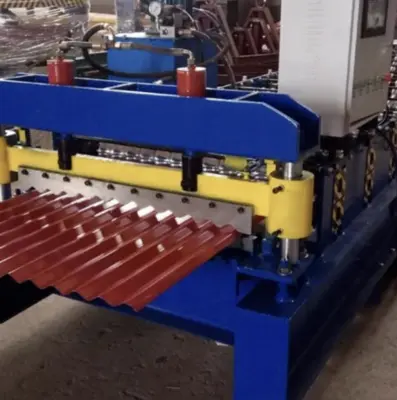

Corrugated Steel Panel Roll Forming Machine in Ethiopia

Decoiler
Capacity:5 tons

Material
Steel Coil

Thickness
0.3-0.8mm

Transmission
Chain/Gear/Gearbox

Speed
10-15m/min

Roller
Steel with quenched treatment,chromed on the surface

Shaft
steel with tempering treatment

Cutting type
Hydraulic cutting

Cutting material
Cr12 with quenched treatment Hardness58°-62°

Welding
Automatic spot welding

Control system
PLC

Electric brand
Delta,Siemens,Schneide

Voltage
380V,50HZ,3PH(or as customers' request)

A corrugated steel panel roll forming machine is designed to produce corrugated steel sheets used primarily in roofing, siding, and wall applications. This machine processes steel coils, gradually shaping them into the distinctive corrugated pattern through a series of precisely aligned rollers. Here are some key features:
1. Main Components
Decoiler: Unwinds the steel coil and feeds it into the machine.

Roll Forming System: Composed of multiple roller stations to shape the steel into the corrugated profile.

Cutting System: Automatically cuts the formed panels to desired lengths, often with hydraulic power.

Control System: Typically equipped with a PLC for automation and ease of use.
2. Specifications
Material Thickness: Usually works with steel sheets ranging from 0.3 to 0.8 mm.

Corrugation Height and Pitch: Varies by design but should meet the standard needs for the target application.

Production Speed: Most machines operate around 10-15 meters per minute, although this can vary.

Power Requirements: Ensure compatibility with local power standards, particularly if buying for international use.
