Main motor power
5.5 kw
Drive
1'' single chain
Type:
Wall board
Main shaft dia
¢70mm
material
45# forge steel and quenched
Roller material
45# high grade forge steel ,chrome coated 0.05mm
Roll station
11 groups for corrugated sheet and 13 groups for ribtype sheet
Raw material
0.3-0.8mm
Coil width
1220mm
Working speed
10m--15m/min(Exclude cutting time)
Length Tolerance
±1.5mm
Weight of machine
About 6 ton
Size of machine
About 6500×1800×1500mm L x W x H

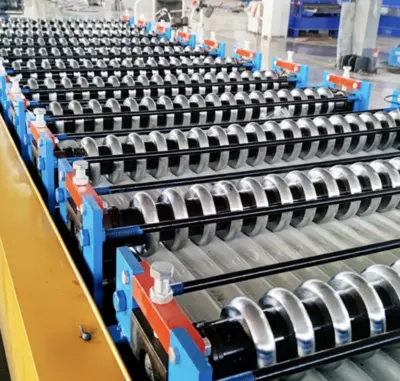

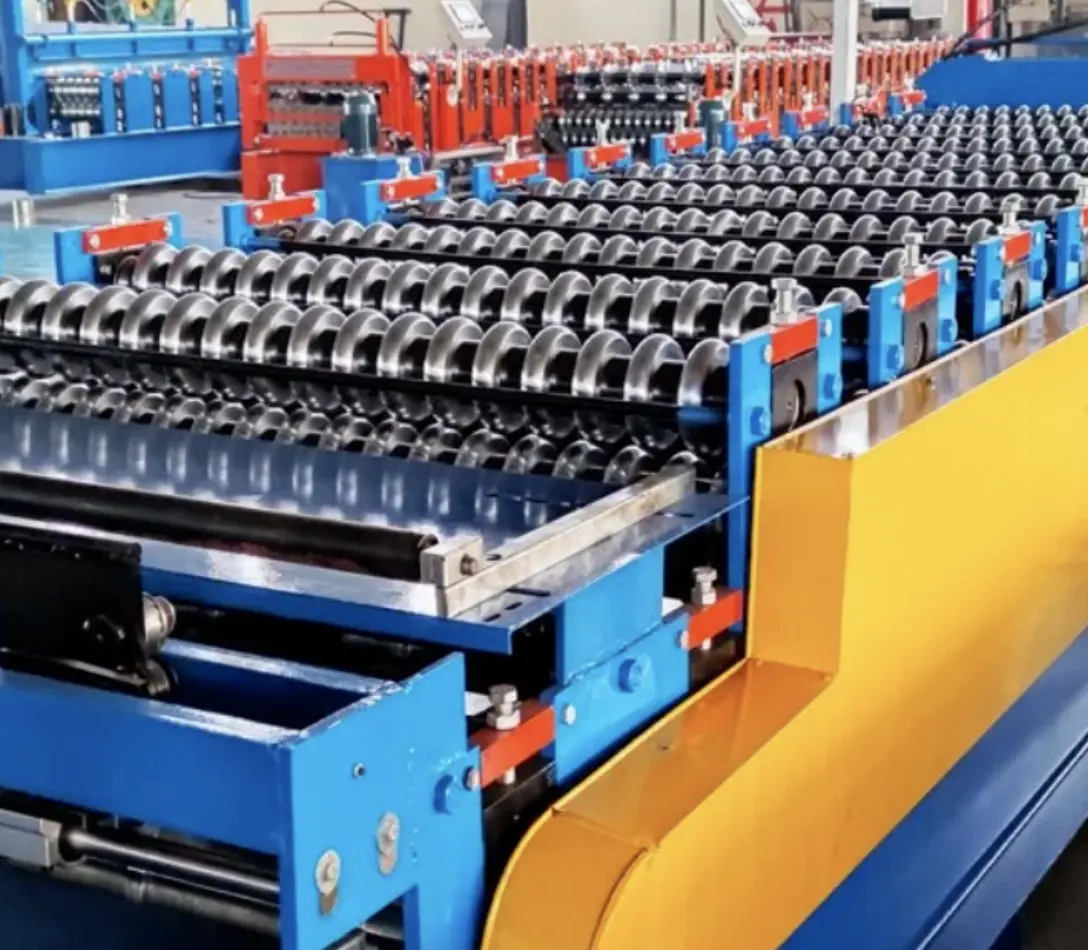

A corrugated roll forming machine is designed to produce corrugated metal sheets, which are commonly used in roofing, siding, and other applications due to their strength, durability, and lightweight nature. Here's an overview of its features, benefits, and applications:
Features
Precision Engineering: The machine is engineered for high precision to ensure uniformity in the corrugated profiles produced.
Multiple Profiles: Capable of producing various corrugated profiles (e.g., single or double wave) to meet different design and structural requirements.
High Speed and Efficiency: Designed for continuous operation, allowing for rapid production rates, which helps in meeting large-scale demands.
Durability: Built with robust materials and components to withstand the rigors of manufacturing and long-term use.
Customizable Designs: Many machines allow customization in terms of size, shape, and material thickness to cater to specific customer needs.
Benefits
Cost-Effective: Reduces material waste and labor costs due to automation and efficient production processes.
Versatile Applications: Can be used for various applications, including commercial buildings, agricultural structures, and industrial facilities.
Enhanced Strength: The corrugated design adds structural integrity, making the sheets more resistant to bending and impact.
Lightweight: Easier to handle and transport compared to solid sheets, reducing shipping costs.
Applications
Roofing: Widely used in residential, commercial, and industrial roofing projects.
Siding: Popular for exterior wall cladding in various structures, offering both aesthetic appeal and weather resistance.
Temporary Structures: Used in the construction of temporary buildings and site offices due to its ease of assembly and disassembly.
Storage Facilities: Ideal for creating durable storage solutions, including sheds and warehouses.
Agricultural Buildings: Commonly employed in barns, greenhouses, and livestock shelters.
Conclusion
A corrugated roll forming machine is essential for manufacturers looking to produce high-quality corrugated sheets efficiently. Its adaptability and cost-effectiveness make it a valuable investment in the construction and manufacturing industries. If you're considering investing in one, be sure to evaluate different models and specifications to find the best fit for your production needs.
