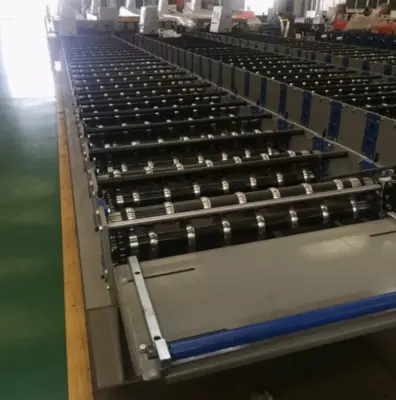

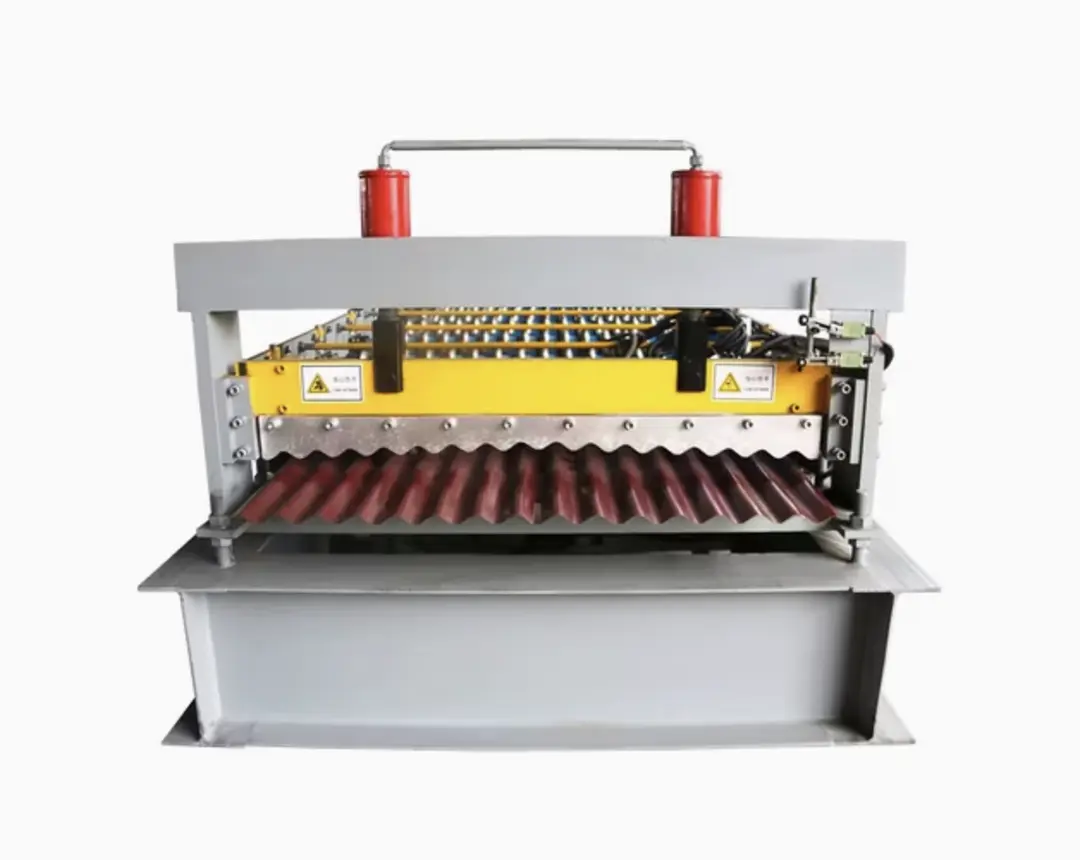

Corrugated Roll Forming Machine South Africa

The corrugated roll forming machine is a specialized piece of equipment used to produce corrugated metal sheets, which are widely used in roofing, cladding, and fencing applications. Designed to deliver precision and efficiency, this machine is highly sought after in industries such as construction, agriculture, and infrastructure development. Its robust construction ensures durability and high performance even under heavy-duty operation, making it ideal for the South African market, which often requires machines capable of handling varying material types and thicknesses.
Key Features
High-Speed Production: The machine can produce large volumes of corrugated sheets in minimal time.

Customizable Profiles: Supports multiple corrugated profiles to meet diverse industry requirements.

Advanced Control Systems: Equipped with a PLC control system for precision, ease of use, and automation.

Durable Components: Made from high-quality steel and other durable materials to ensure long life and reliability.

Versatility: Can process a wide range of materials, including galvanized steel, aluminum, and stainless steel.

Compact Design: Space-saving design suitable for small and large workshops.
Additional Features
Optional Extras:

Automatic stacking system
Hydraulic uncoiler (5-ton or 10-ton capacity)
Remote PLC operation
Coil handling systems
Customized corrugated profiles

Applications:

Roofing for residential, commercial, and industrial buildings
Wall cladding
Fencing
Decorative and industrial uses
Question and Answer Section
1. What materials can a corrugated roll forming machine handle?
The machine is designed to process materials like galvanized steel, aluminum, stainless steel, and color-coated steel with thicknesses ranging from 0.3 mm to 0.8 mm.
2. What is the typical production speed of the machine?
Production speeds range between 15–30 meters per minute, depending on the material and configuration.
3. Can the machine be customized for South African profiles?
Yes, the machine can be tailored to produce specific profiles popular in South Africa, ensuring compliance with local market demands.
4. Is the machine compatible with South African power supply standards?
Yes, the machine can be customized to work with South African power supply specifications (380V/50Hz).
5. What is the maintenance requirement for this machine?
Routine maintenance includes:
Lubricating the rollers and moving parts
Checking the hydraulic system for leaks
Ensuring the PLC system is updated and functioning properly
Inspecting and sharpening the cutting blade regularly
6. What industries in South Africa benefit most from this machine?
Industries like construction, agriculture, and roofing companies benefit greatly, especially in producing materials for residential and industrial roofing.
7. How long does it take to set up the machine?
The setup time can range from 2 to 4 days, depending on the complexity of the configuration and the availability of skilled technicians.
8. What factors should be considered when buying this machine in South Africa?
Local demand for corrugated profiles
Availability of materials
Transportation and shipping costs
Warranty and after-sales support
Compatibility with local power standards
9. Can the machine be shipped to rural areas in South Africa?
Yes, with proper logistics planning, the machine can be delivered to urban and rural areas across South Africa.
10. What is the typical price range for a corrugated roll forming machine?
Prices can range from $20,000 to $100,000, depending on the machine's features, specifications, and additional customizations.

Material Thickness: 0.3 mm – 0.8 mm
Material Width: Up to 1250 mm
Roller Material: GCr15 steel with hard chrome plating
Number of Rollers: 16–22 (varies based on profile)
Machine Speed: 15–30 meters per minute
Motor Power: 5.5 kW to 11 kW (depends on model)
Cutting System: Hydraulic cutting with Cr12 steel blade
Control System: PLC with touch screen (Siemens/Delta)
Power Supply: 380V/50Hz (customizable)
Dimensions: Approx. 7000 mm × 1500 mm × 1400 mm
Weight: 5–7 tons (depending on configuration)
