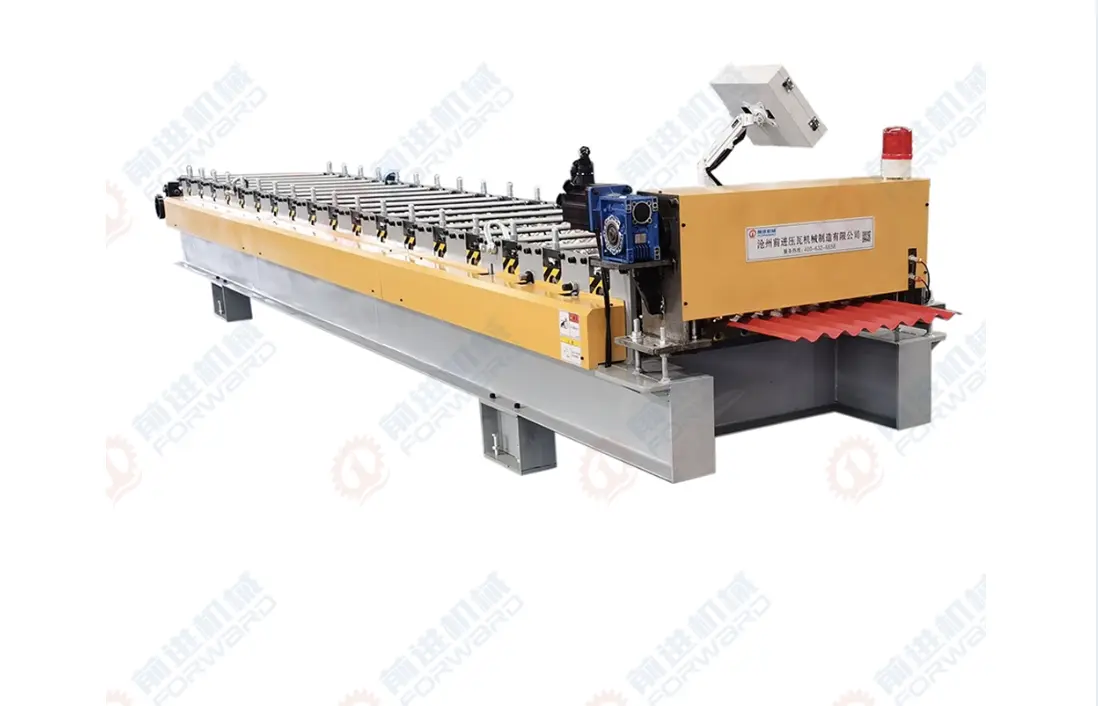

Corrugated Roll Forming Machine in South Africa

Iron Sheet Making/Press/Rolling Machine

Suitable material
PPGI/Aluminium sheet/galvanized sheet/various sheet plates

Thickness of coil sheet
0.15mm

Coil width
914mm

Material of main frame
350H steel

Diameter of Soild shaft
70mm, high grade 45# steel

Roller

Quenched and tempered treatment,
hard chrome coated 0.05-0.07mm

Thickness of middle plate
16mm

Forming station
16stations

Drive type
By chain(1.0 inch) link bearing model 6210

Power of main motor
5.5kw with Cycloidal reducer

Power of pump station
3kw

Forming speed
About 30-35m/min

Hydraulic cutting
Controlled by PLC

PLC
DELTA(TAIWAN)/Mitsubishi

Material of razor blades
Cr 12, quenching 58-62ºC

Frequency converter

It has the advantage of slowing down before cutting, to ensure the
length accuracy(±1mm, far better than industrial standard ±3mm).
