Main motor power
5.5kw
Drive
1'' single chain
Type:
Wall board
Main shaft dia
¢70mm
material
45# forge steel and quenched
Roller material
45# high grade forge steel ,chrome coated 0.05mm
Roll station
18 groups
Raw material
0.3-0.7mm
Coil width
1200mm
Working speed
10m--15m/min(Exclude cutting time)
Length Tolerance
±1.5mm
Weight of machine
About 5 ton
Size of machine
About 7500×1800×1500mm L x W x H
Color of machine
Yellow and Blue
Coder
Omron, made in Japan
Control
PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel
touching screen
Other electrical element
Schneider

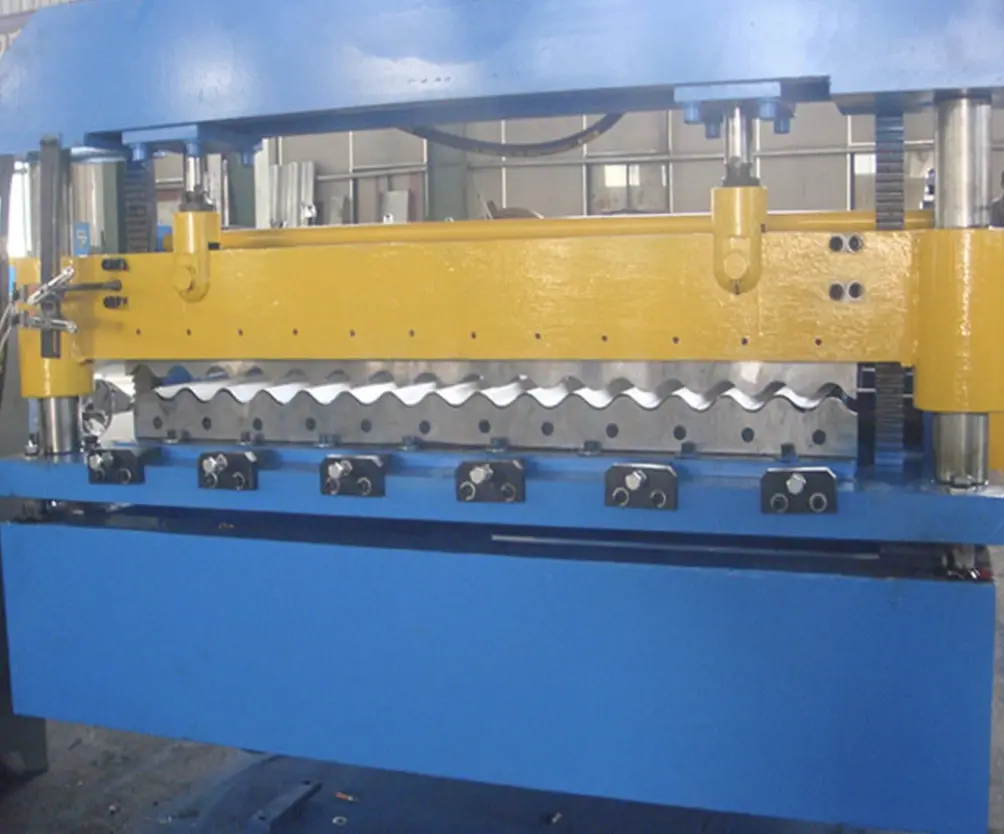

Cutting
Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power
3KW
Blade material
Cr12mov,quenched 58°-62°
Working pressure
16mpa
Cutting tolerance
+/- 1.0mm
