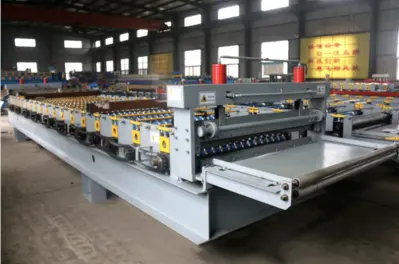

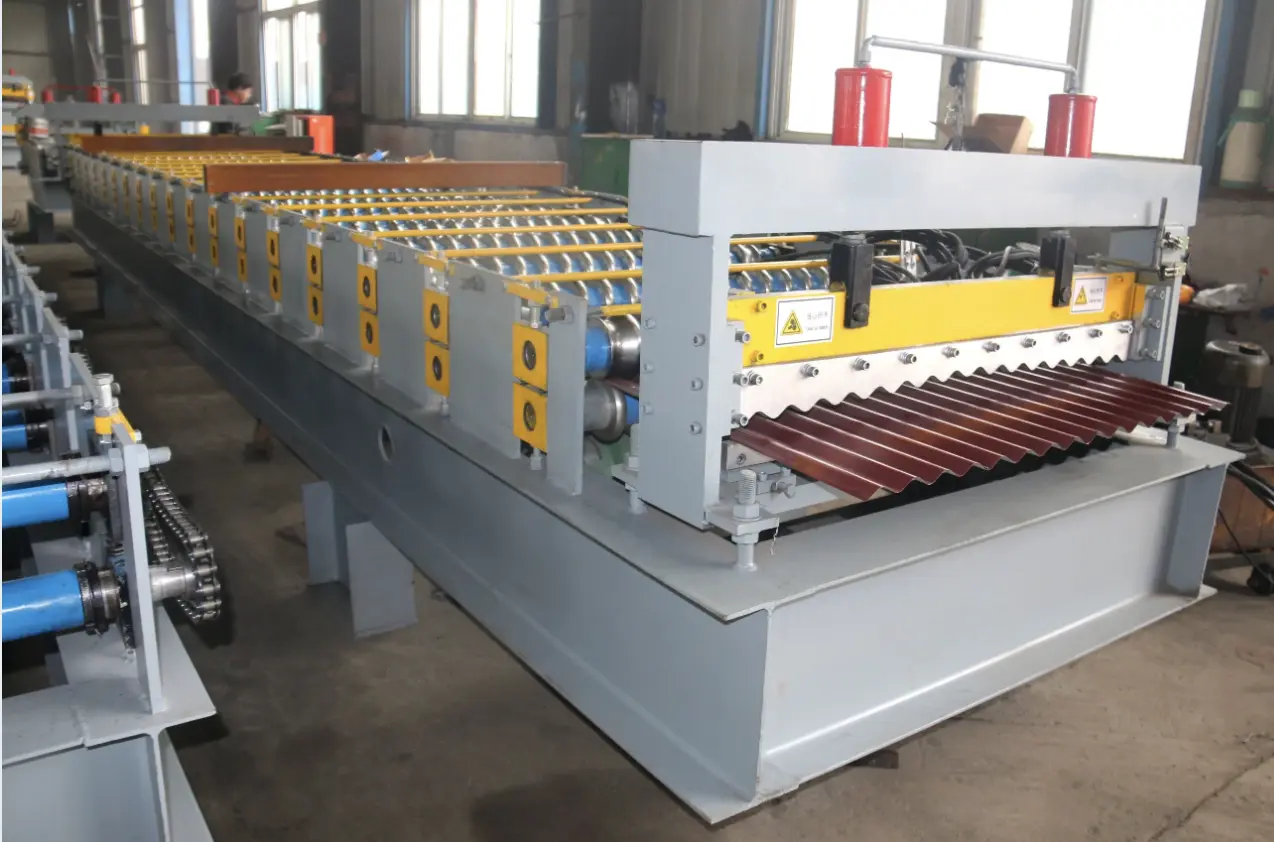

Corrugated Roll Forming Machine in El Salvador

Forming steps
16 steps

Shaft diameter
80mm

Machine stand
Individual Arch Plate

Machine frame
steel plate welded

roller material
45# steel with chrome

shaft material
45# steel with quenching and tempering

Work speed
0-15m/min

Transport
By chains

Power of main machine
4kw

Voltage
380V-50HZ-3P(as required)

Machine dimension
7*1.5*1.2m

Machine weight
About 3.5T

Machine color
Yellow and blue(as required)
