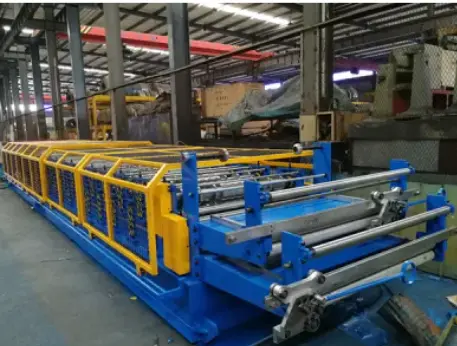

Trapezoidal Metal Sheet Roll Forming Machine in Xiamen, China

Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
C. Dual Cold Rolling Mills
Gear/Sprocket driving; Dual Levelling,18-step to form
Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated
Shafts Diameter=ф95mm, Precision Machined, fine Polished
Main motor =5.5W, Frequency speed control
Manual Clutch to switch the driven system
Max. Line speed of roll former: Approx. 15m/min
Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside
D. Hydraulic Cutting Device
Stop to cut, Post cut, No blanking cut
Cutting tool material: Cr12, Heat treatment
Hydraulic group, Pump motor =5.5KW
