15m/min Trapezoid Roof Sheet Roll Forming Machine in China
Overview
Description

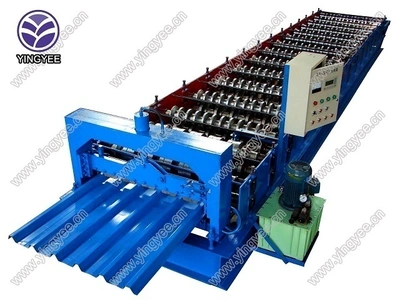

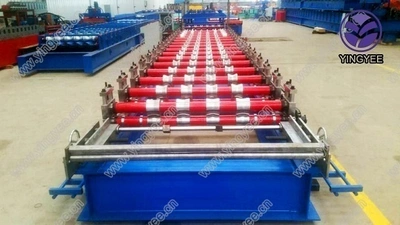

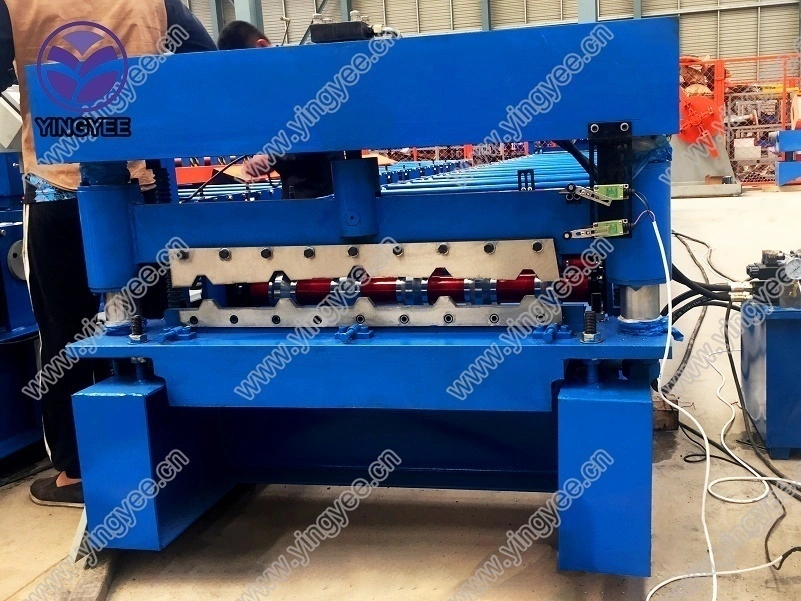

Trapezoid roof sheet roll forming machine For making IBR roofing sheets forming machine. Simple operation, easy installation and easy maintenance.The solid roller and shaft have good quality and long service life. The delivery time: about 15 days it can be delivered, the regular type of the machine is in stock for a long time. A 40HQ container can loading in 3 sets small machines, saving freight.
Material
1. Thickness: 0.3--0.8mm
2. Input width: depend on drawing
3. Effective width:1000 mm
4. Material:PPGI
Power supply
380V, 50Hz, 3 phase
Capacity of power
Main power:5.5kw
Speed
Forming speed: 15m/min
Total weight
Approx. 5Tons
Dimension
Approx.(L*W*H) 8000m*1800m*1750m
Stands of rollers
26 rollers
Cut style
Hydraulic cut
5 tons manual decoiler
1: Max width of raw material :1250mm
2: Capacity: 5000kgs
3: Inner diameter of coil: 450-600mm
