Control System:PLC
Warranty:12 Months
Thickness:0.3-1mm
Using:Roof
Type:Roof Sheet Roll Forming Machine
Forming Speed:25-30m/min
Voltage:38oV/3Phase/50Hz Or At Customer’s Request
Material:GI, PPGI, Aluminum Coils
Cutting Mode:Hydraulic
Delivery:30 Days

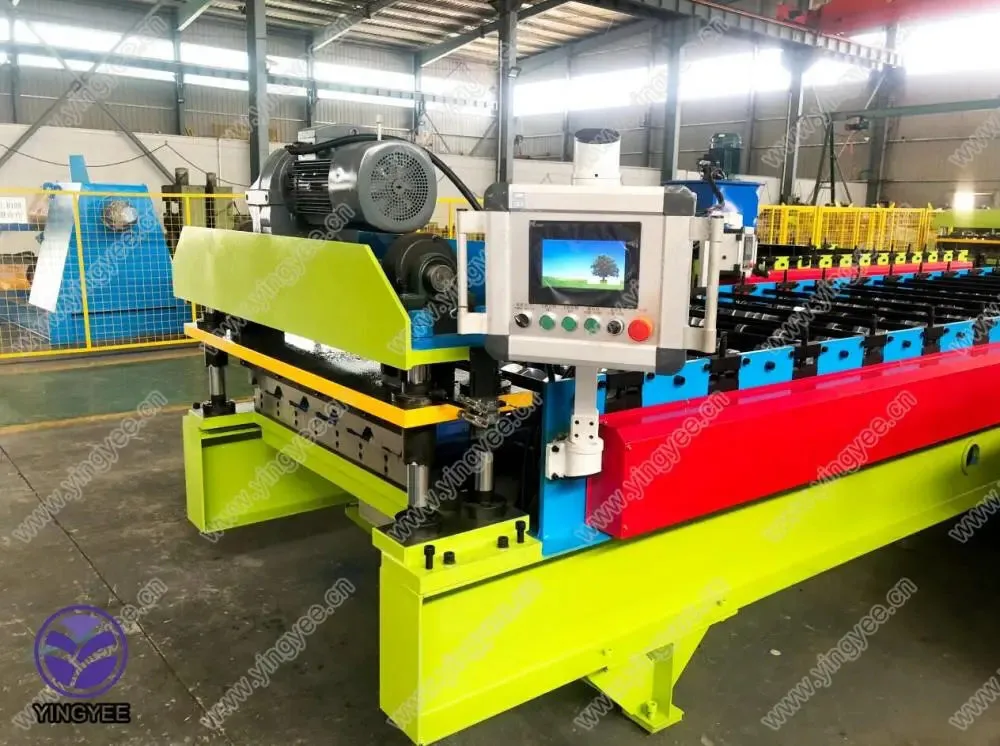

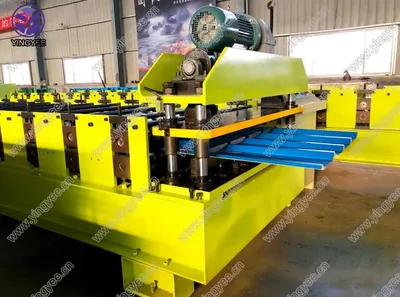

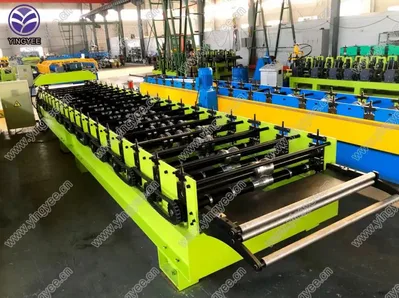

IBR trapezoid Roof Sheet Roll Forming Machine
900mm IBR Corrugation Wave Metal Roof Sheet Roll Forming Machine, it is servo feeding to ensure the precision, hydraulic cutting, elegant appearance, fast speed
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Raw materials
Galvanized coils, Pre-painted coils, Aluminum coils
Material thickness range
0.2-1mm
Forming speed
10-15m/min
Rollers
15 rows(according to drawings)
Material of rollers
45# steel with chromed
Shaft material and diameter
76mm, material is 40Cr
Material of body
400H steel
Wall panel
20mm Q195 steel(all with electrostatic spraying)
Controlling system
PLC
Main power
5.5KW
Material of cutting blade
Cr12 mould steel with quenched treatment
Voltage
380V/3Phase/50Hz
Total weight
about 4 tons
