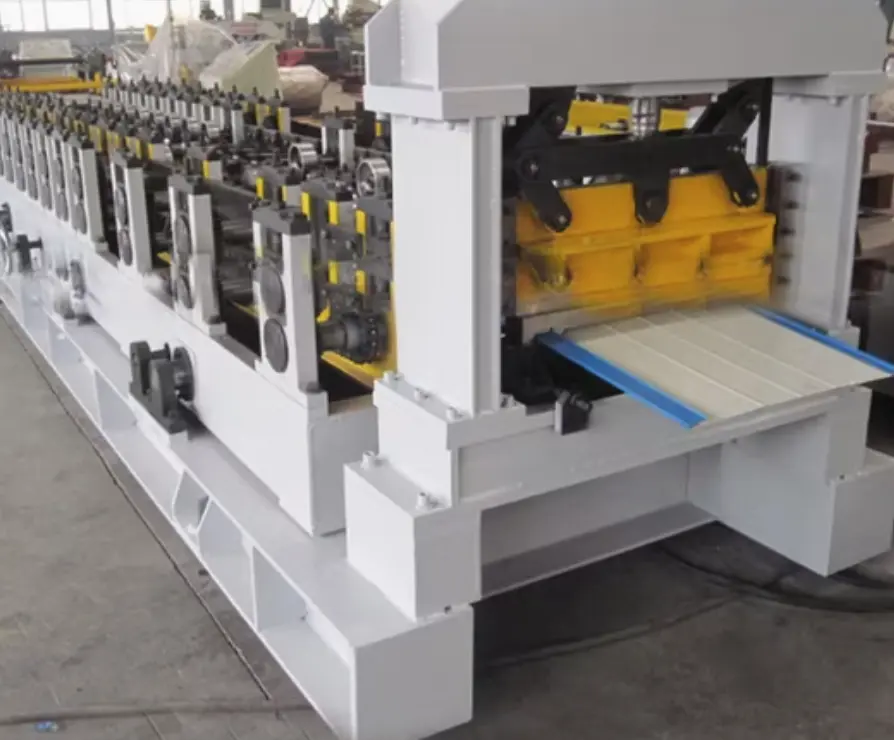

Standing Seam Metal Roof Panel Roll Forming Machine – Armenia

The Standing Seam Metal Roof Panel Roll Forming Machine is a high-precision production line engineered for the manufacture of concealed fastener roof panels used in architectural, commercial, and residential buildings.
In Armenia, where construction projects increasingly demand modern and durable roofing systems, standing seam panels are gaining popularity due to their leak-proof joints, high wind resistance, and sleek design.
At Machine Matcher, we supply new, custom-built standing seam roll forming machines designed specifically for your profile, coil gauge, and power configuration. These machines are fully automatic, equipped with servo drives, hydraulic cutting, and PLC systems for maximum accuracy and operational efficiency.
All systems are manufactured to your specifications, tested before delivery, and installed with worldwide 24/7 support.
Machine Matcher serves the Armenian, European, and Middle Eastern markets, offering complete machine solutions — from uncoilers and levelers to automatic stackers and remote PLC control systems.
Machine Technical Specifications
Specification
Details

Machine Type:
Standing Seam Metal Roof Panel Roll Forming Machine

Production Speed:
15–45 m/min (depending on profile and material)

Material Thickness Range:
0.4–0.8 mm

Material Width Range:
300–600 mm coil width (customizable)

Material Types:
Galvanized Steel (GI), Galvalume (AZ), Aluminum, Copper, Stainless Steel

Material Yield Strength:
235–550 MPa

Roller Material:
GCr15 bearing steel, hardened and chromed

Roller Surface Treatment:
Hard chrome plating and precision polishing

Number of Forming Stations:
12–24 stations depending on panel design

Roller Shaft Diameter:
60–85 mm

Shaft Material:
45# steel, precision ground

Main Drive Type:
Gearbox or chain drive

Power (Armenia):
380 V / 50 Hz / 3 Phase

Motor Power:
7.5–15 kW

Cutting Method:
Hydraulic flying shear or post-cut

Blade Material:
Cr12MoV, heat-treated for long lifespan

Control Type:
PLC with touchscreen HMI (Siemens / Delta / Mitsubishi)

Operating Mode:
Fully automatic with manual override

De-coiling System:
3–10 ton manual or hydraulic uncoiler

Punching/Notching System:
Optional servo-hydraulic pre-punch unit

Machine Frame:
350–400 H-beam welded structure

Thickness of Frame Steel:
16–20 mm

Profile Shape:
Snap-lock, Mechanical Seam, or Snap-Seam

Profile Width and Depth:
300–600 mm width; 25–50 mm seam height

Length Tolerance:
±1 mm/m

Safety Features:
Safety guards, E-stop, overload protection

Protective Covers/Guards:
Full enclosure with transparent panels

Emergency Stop Button:
Installed on entry, exit, and control console

Overload Protection System:
Integrated in motor and hydraulic units
Optional Add-ons and Upgrades
Servo feeder for higher speed and accuracy

Hydraulic punching and notching station

Automatic stacker system

Dual-decoiler for continuous production

Remote PLC system for diagnostics and monitoring

Coil car and hydraulic coil tilter

Standing seam clip rolling attachment

Safety enclosure with sound insulation

Roll set changeover for multiple panel widths

Leveling and guiding system with servo alignment
All machines are new, custom-built to your roofing profile, and come with full installation manuals, test videos, and operation training.
Profile Description
Standing seam metal roof panels are the most advanced and durable roofing profiles available today. These panels interlock vertically, concealing fasteners beneath raised seams, creating a watertight system ideal for architectural and industrial applications.
Common Standing Seam Profiles
Snap-lock seam — Easy to install without seaming tools.

Mechanical seam (single/double) — Offers maximum wind and water resistance.

Nail strip or fastener flange seam — Quick installation for residential buildings.
Profile Sizes
Seam height: 25–50 mm

Effective cover width: 300–600 mm

Coil width: up to 600 mm

Material thickness: 0.4–0.8 mm
Suitable Materials
Galvalume (AZ) — Corrosion-resistant for long life

Pre-painted steel (PPGI) — Aesthetic, available in multiple colors

Aluminum — Lightweight for low-load roofs

Copper & Stainless Steel — Premium architectural finishes
Industries and Applications in Armenia
Standing seam roofing systems are used in:
Architectural and commercial buildings

Airports, malls, and sports complexes

Factories and industrial facilities

Residential housing projects

Government buildings and institutions

Solar roofing systems
In Armenia, major cities like Yerevan, Gyumri, and Vanadzor are seeing rapid growth in modern steel and aluminum roofing systems. Standing seam panels are preferred due to their durability, clean aesthetics, and low maintenance in diverse weather conditions — from hot summers to cold mountain climates.
Setup and Installation
Each standing seam machine is delivered fully tested and configured for easy installation.
Setup Process:
Place the machine on a level foundation.

Connect the uncoiler and hydraulic system.

Wire the control cabinet and PLC interface.

Run calibration and coil feeding tests.

Produce sample panels and adjust alignment.
Our engineers provide remote support or on-site installation and training in Armenia. Full documentation and videos are included.
Maintenance and Service
To ensure long-term precision and performance, follow a structured maintenance plan:
Daily
Check coil alignment and roller cleanliness.

Inspect cutting and punching units for debris.
Weekly
Lubricate roller bearings and guide rails.

Inspect the hydraulic oil level.
Monthly
Check motor chain tension and frame bolts.

Verify PLC and encoder calibration.
Annually
Inspect roller alignment.

Replace worn seals or blades.

Perform full lubrication cycle and safety inspection.
Machine Matcher provides remote diagnostics, spare parts, and preventive maintenance contracts worldwide.
Machine Pricing
Standing seam roll forming machine prices depend on profile type, automation level, and added accessories.
Machine Type
Description
Estimated Price (USD)

Standard Model
Manual uncoiler, basic PLC, post-cut
$55,000 – $85,000

Advanced Model
Hydraulic uncoiler, servo feeder, hydraulic cutting
$85,000 – $120,000

High-End Model
Full servo line, dual-decoiler, automatic stacker, remote PLC
$120,000 – $180,000+
All prices include:
Machine built to your profile

Test video before shipment

Export packaging and documentation

Optional installation and operator training
Contact us for a custom quotation based on your roof panel design and project requirements.
Countries & Markets Served
Machine Matcher supplies standing seam metal roof panel roll forming machines to clients in:
Armenia

Georgia

Turkey

Iran

Azerbaijan

United Kingdom

United States

Gulf States and Europe
Each machine meets international standards (CE, ISO, UL) and can be adapted to local voltage and control preferences.
Why Choose Machine Matcher
100% custom-built standing seam panel machines

24/7 global technical support

Remote PLC monitoring and diagnostics

ISO and CE-certified designs

OEM-quality spare parts and service

Expert installation and operator training

Global offices in UK, USA, and Middle East
Machine Matcher ensures every system is accurately engineered, factory-tested, and ready for high-volume production.
Frequently Asked Questions
Q1: What is a standing seam roof panel machine?

A: It’s a continuous roll forming system that produces concealed fastener roof panels with raised seams for watertight, long-lasting roofs.
Q2: Can I make different seam types on one machine?

A: Yes, we can provide interchangeable tooling or cassette systems for multiple seam designs (snap-lock, mechanical, or nail strip).
Q3: What materials are best for standing seam panels in Armenia?

A: Galvalume and PPGI coils are ideal for Armenia’s climate due to their corrosion resistance and thermal stability.
Q4: Can the machine produce curved panels?

A: Yes, with an optional curving or tapering unit, panels can be formed to suit curved roof designs.
Q5: What speed can I expect?

A: Standard production speed ranges from 15–45 meters per minute, depending on profile depth and material thickness.
Q6: What support does Machine Matcher provide after purchase?

A: We provide remote PLC assistance, spare parts supply, installation guidance, and full maintenance support.
