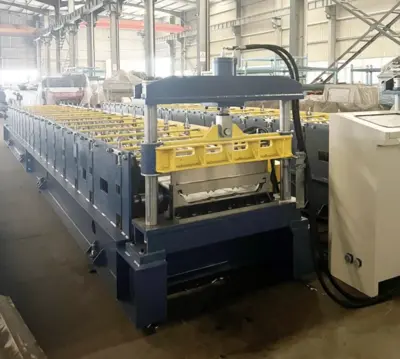

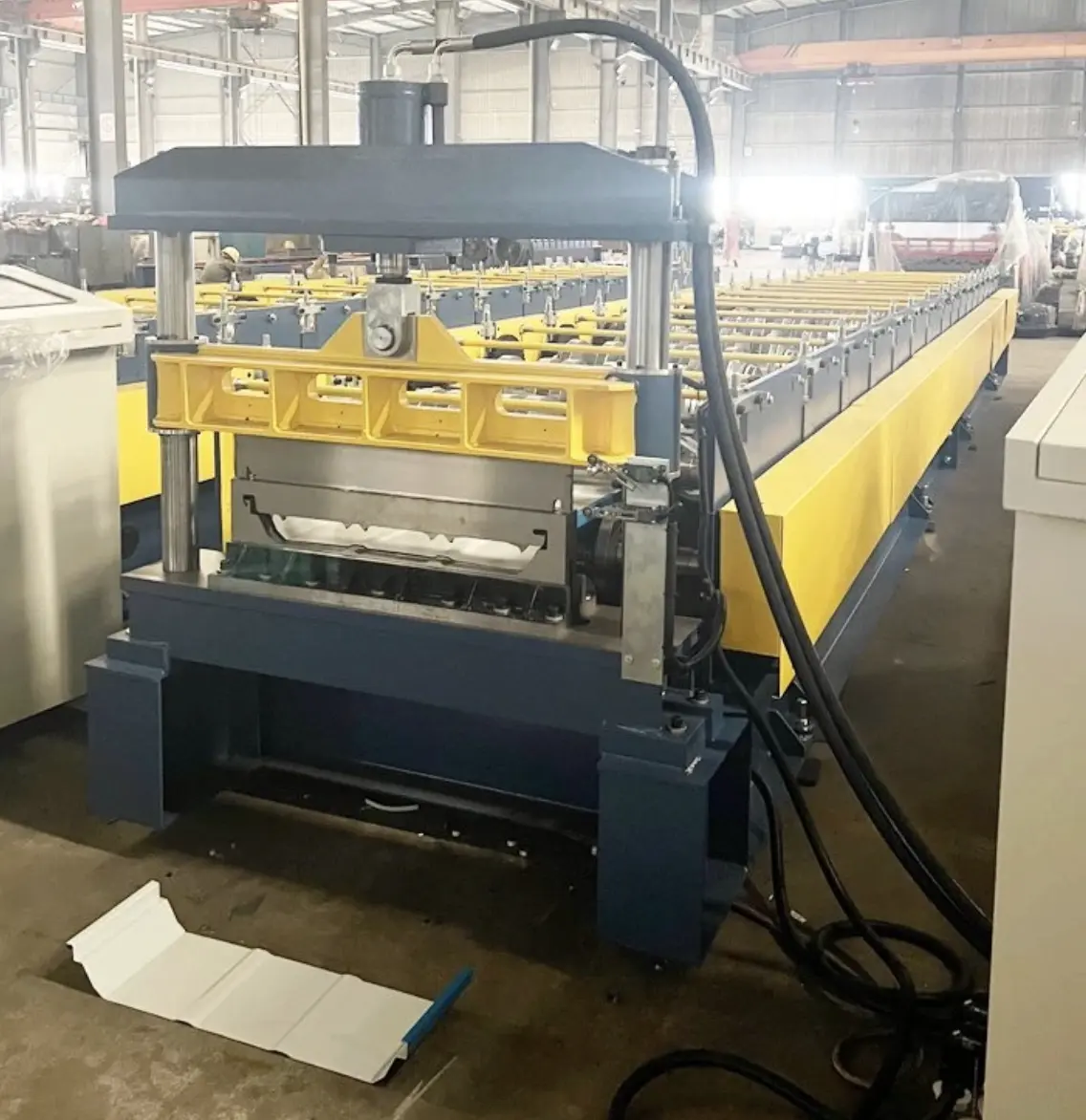

Portable Standing Seam Plate Sheet Roof Machine
Item
Specification
Raw Material
steel
Thickness(mm)
0.4mm-0.8mm
Yield strength(mpa)
Q235
Roller material
high grade No.45 forged steel, with digital-controlled procession
Forming speed(m/min)
about 20m/min (without cut time)
Coil Width
755mm
Mechanical decoiler
Max. Capacity: 5000kgs
Cutter material
Cr12 with quenched treatment
Drive system
Hydraulic
Controlling
Mitsubishi PLC
Transmission
chain gear
