Metal Roofing Roll Forming Machine - Saudi Arabia

Metal Roofing Roll Forming Machine – Now Available in Saudi Arabia

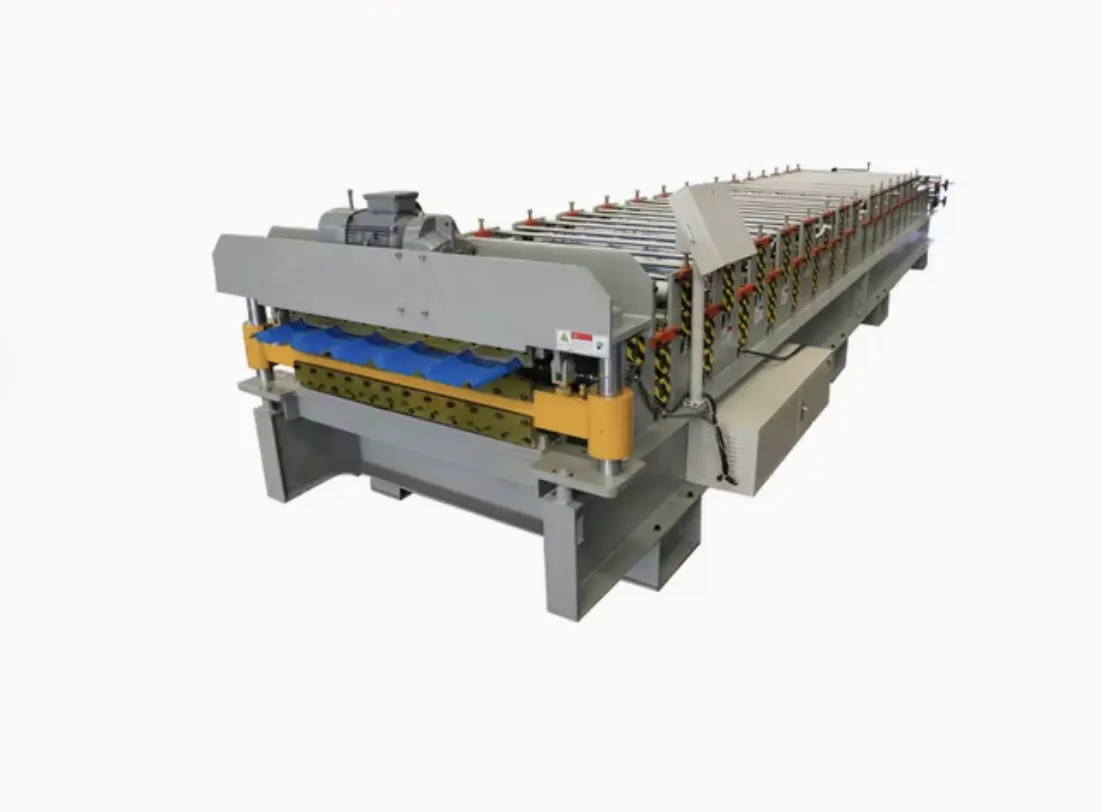

The Metal Roofing Roll Forming Machine is a robust, high-performance solution designed for manufacturing high-quality metal roof panels in Saudi Arabia. Built to deliver reliability, speed, and precision, this machine is ideal for roofing contractors, steel structure companies, construction firms, and manufacturers serving the residential, commercial, and industrial building sectors.
Manufactured to meet the demands of the harsh Gulf climate and regional building codes, this machine handles a range of coated coil materials including PPGI (Pre-Painted Galvanized Iron), PPGL (Pre-Painted Galvalume), GI (Galvanized Iron), and GL (Galvalume). It is engineered for continuous operation and built with high-grade components for long-term durability.
Whether you're setting up new operations or expanding your existing production line in Saudi Arabia, this roll forming machine is custom-built to meet your specific panel profile and technical requirements.
Coil Handling
Coil Material: PPGI / PPGL / GI / GL

Coil Thickness: 0.3 – 0.8 mm

Coil Width: 1000 mm

Decoiler: 5T Manual Decoiler
Roll Forming Unit
Roller Stations: 16 / 18 Stations

Driving Motor: 5.5 kW

Shaft Diameter: 70 mm Solid

Shaft Material: 45# Hard Steel

Roller Material: 45# Hard Steel

Under Frame: 350 H-Beam

Sidewall Thickness: 16 mm

Transmission: 1 Inch Chain

Feeding Device: Includes Pre-cutter
Cutting Unit
Cutting Type: Hydraulic Stop to Cut

Hydraulic Pump Power: 3 kW

Cutting Die Material: Cr12Mov

Hydraulic Oil: 46# Abrade Oil
Control System
Control Method: PLC Control

Length Control: Encoder

Operation Interface: Touch Screen

Language Support: Chinese & English

Voltage: As per customer requirement (configured for Saudi Arabia)
Production Output
Speed: 15–20 meters/minute
Key Advantages
Robust Construction: Heavy-duty frame and shaft components for stable and precise production.

High Capacity: Capable of 15–20 meters per minute, suitable for large-scale operations.

Custom-Built: Adapted for Saudi Arabia’s voltage standards and profile needs.

Quality & Competitive Prices: Engineered for high performance with pricing based on custom specifications.

Expert Engineering: Built by experienced manufacturers to meet international standards.

Global After-Sales Support: Remote or on-site technical service, including preventive and protective maintenance.

Industry Compatibility: Suitable for roofing panel production in residential, commercial, and industrial projects.
Industries Served
This machine is widely used by:
Construction & Roofing Contractors
Steel Fabrication Companies
Prefabricated Building Manufacturers
Industrial and Commercial Project Developers
Metal Roofing Installers
Whether you're producing panels for residential villas, commercial warehouses, or large-scale industrial buildings in Riyadh, Jeddah, Dammam, or across Saudi Arabia, this machine is built to help you meet demand efficiently.
Shipping & Support
All machines are new and manufactured to order based on your chosen panel profile and project specifications. Machine Matcher ships directly from our manufacturing partner to your facility in Saudi Arabia.
We offer:
One-year warranty from dispatch
Durable repair and maintenance support
On-site installation and training services (optional)
Technical support via phone, email, or in person
Custom Quote
Pricing depends on the level of customization and optional extras such as:
Coil car tippers
Automatic stackers
Remote PLC access
Leveling systems
Recoilers and uncoilers
For a custom quote, please email your panel profile drawing, size, material gauge, voltage requirements, and delivery address to: [email protected]
Frequently Asked Questions
Q: Can the machine handle custom roofing profiles?

A: Yes. Each machine is built to match your specific profile drawing. Just send us your design for a custom quote.
Q: Is the machine compatible with Saudi power supply standards?

A: Absolutely. The voltage and frequency are configured according to your exact requirements in Saudi Arabia.
Q: What is the delivery timeline?

A: Most machines are built and ready to ship within 45–60 days after confirming the order and specifications.
Q: What type of support do you offer in Saudi Arabia?

A: We provide global after-sales support including remote troubleshooting and optional on-site service in Saudi Arabia.
Q: Do you supply other machines as well?

A: Yes, Machine Matcher supplies a full range of roll forming machines including flashing machines, purlin machines, slitting lines, embossers, uncoilers, and more.
For more information or to speak to our engineering team, contact Machine Matcher today. We proudly serve customers in the Middle East and around the world with reliable, custom-built roll forming solutions.
