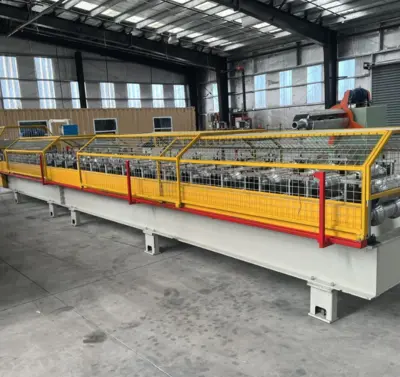

PBR Metal Roof Roll Forming Machine USA

The PBR (Purlin Bearing Rib) metal roof roll forming machine is a specialized piece of equipment designed to produce PBR metal roof panels, widely used in industrial, commercial, and residential roofing. These panels are recognized for their durability, ease of installation, and weather resistance. The machine is engineered for high precision, efficiency, and minimal waste, offering users cost-effective and high-quality panel production.
Key Features
High Production Speed: Produces panels quickly, making it suitable for large-scale roofing projects.

Durable Construction: Built with heavy-duty materials to ensure longevity and consistent performance.

Advanced Automation: Incorporates PLC control systems for user-friendly operation and precise production.

Customization Options: Can be adjusted to produce panels of varying widths and gauges.

Energy Efficiency: Designed to optimize energy usage while maintaining production quality.
Question and Answer Section
Q1: What is the purpose of a PBR metal roof roll forming machine?
A: The machine is designed to produce PBR roof panels, which are commonly used in roofing applications for their strength, durability, and resistance to harsh weather conditions.
Q2: Can this machine handle different material thicknesses?
A: Yes, it supports material thicknesses ranging from 0.3mm to 0.8mm. The machine can be customized for other gauges if needed.
Q3: How is the machine controlled?
A: It features an advanced PLC control system with a touch-screen interface, allowing operators to adjust settings and monitor production in real-time.
Q4: What profiles can this machine produce?
A: The machine is specifically configured to produce PBR profiles. However, additional tooling can be added for custom profile requirements.
Q5: Is maintenance difficult?
A: Maintenance is straightforward. Routine tasks include lubricating moving parts, inspecting the rollers for wear, and ensuring the cutting blades are sharp.
Q6: How long does it take to set up the machine?
A: The initial setup can take 1–2 days, depending on the experience of the operator and the machine configuration.
Q7: What are the most popular industries using PBR panels?
A: Industries include construction, agriculture, and industrial manufacturing, where PBR panels are used for roofing, siding, and cladding.
Q8: Can the machine handle high production demands?
A: Yes, the machine is designed for high-speed production, making it ideal for large-scale projects.
Q9: Are training and installation support provided?
A: Most manufacturers provide training and support for installation to ensure optimal machine operation.
Q10: What should I consider when buying a PBR metal roof roll forming machine?
A: Key considerations include the material specifications, production capacity, machine durability, and after-sales support.
This guide provides a detailed overview of PBR metal roof roll forming machines, ensuring you understand their capabilities, specifications, and applications.

Machine Frame
Material: High-strength steelFrame Type: Welded for stability
Material: High-strength steel
Frame Type: Welded for stability

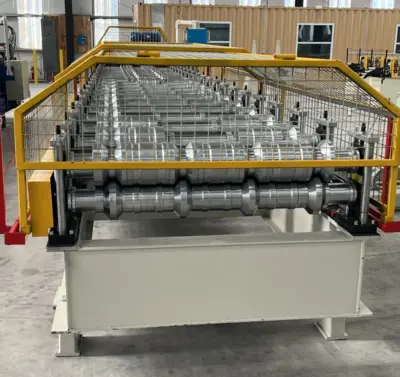

Rollers
Material: High-grade chrome-plated steelNumber of Rollers: Typically 18–22 stationsDiameter: Customized based on profile requirements
Material: High-grade chrome-plated steel
Number of Rollers: Typically 18–22 stations
Diameter: Customized based on profile requirements
Material Input
Coil Width: 914mm–1220mmMaterial Thickness: 0.3mm–0.8mm (customizable for other gauges)Materials Supported: Galvanized steel, aluminum, and color-coated sheets
Coil Width: 914mm–1220mm
Material Thickness: 0.3mm–0.8mm (customizable for other gauges)
Materials Supported: Galvanized steel, aluminum, and color-coated sheets
Production Speed
Speed: 10–15 meters per minute (adjustable)
Speed: 10–15 meters per minute (adjustable)
Power System
Main Motor: 7.5kW–15kW (dependent on machine size)Hydraulic Station: 4kW–7.5kW
Main Motor: 7.5kW–15kW (dependent on machine size)
Hydraulic Station: 4kW–7.5kW

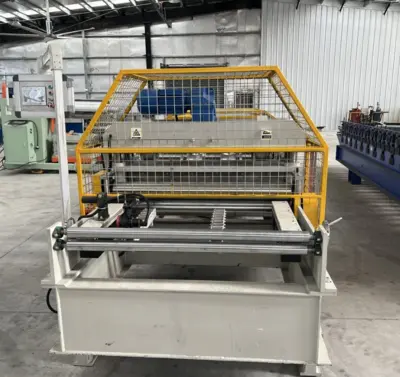

Cutting Mechanism
Type: Hydraulic cuttingBlade Material: Cr12MOV (heat-treated for durability)Cutting Accuracy: ±1mm
Type: Hydraulic cutting
Blade Material: Cr12MOV (heat-treated for durability)
Cutting Accuracy: ±1mm

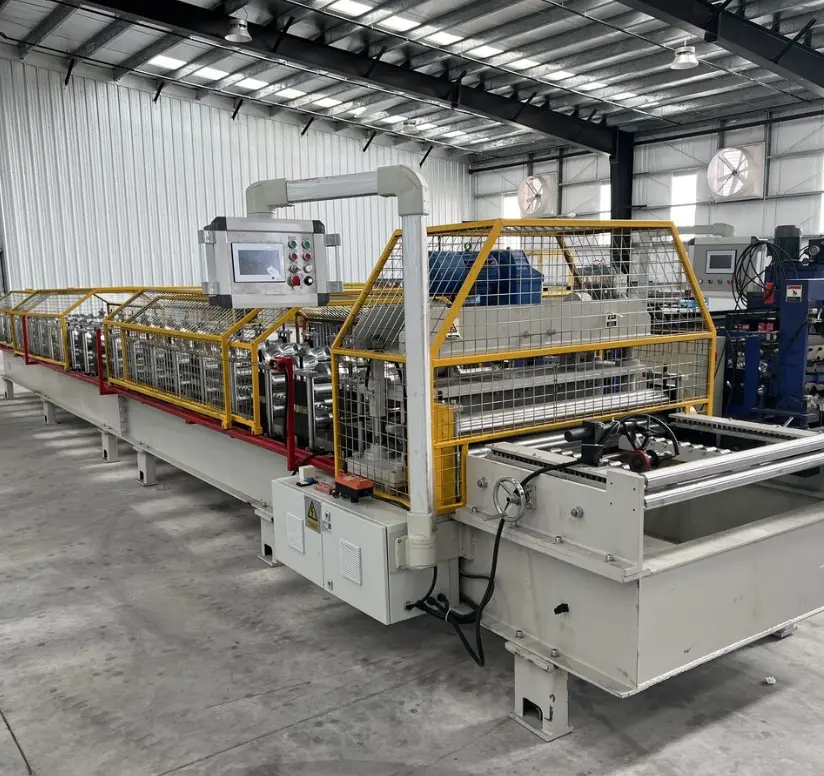

Control System
PLC Brand: Siemens, Delta, or MitsubishiTouch Screen Interface: User-friendly and supports multiple languages
PLC Brand: Siemens, Delta, or Mitsubishi
Touch Screen Interface: User-friendly and supports multiple languages
Optional Add-Ons
Automatic Stacker: Efficient stacking of finished panelsCoil Car: For easy loading and positioning of coilsUncoiler and Recoiler: Options for manual, semi-automatic, or automatic versionsEmbossing Rollers: For custom panel textures
Automatic Stacker: Efficient stacking of finished panels
Coil Car: For easy loading and positioning of coils
Uncoiler and Recoiler: Options for manual, semi-automatic, or automatic versions
Embossing Rollers: For custom panel textures
Dimensions
Machine Length: 8m–12mMachine Width: 1.5m–2mMachine Height: 1.2m–1.5m
Machine Length: 8m–12m
Machine Width: 1.5m–2m
Machine Height: 1.2m–1.5m
Weight
Approx. 5,000kg–8,000kg (varies based on specifications)
Approx. 5,000kg–8,000kg (varies based on specifications)
