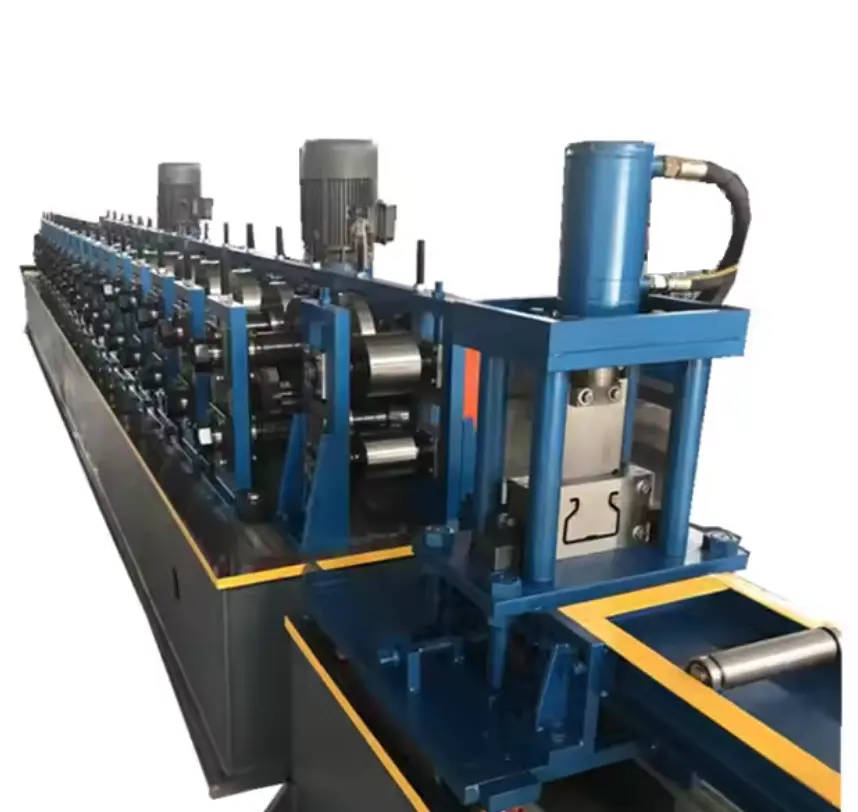

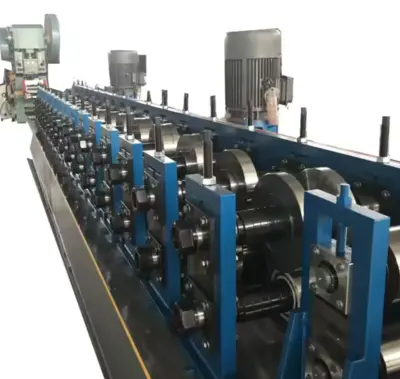

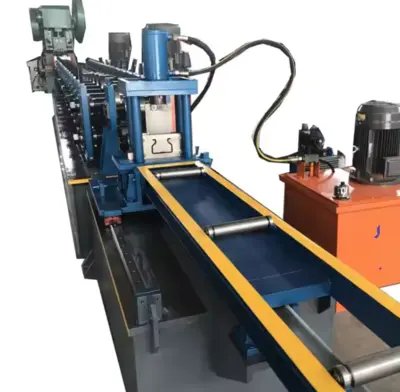

Sheet Metal Rack Storage Roll Forming Machine – UAE Market Focus
Product Overview
The Sheet Metal Rack Storage Roll Forming Machine is an industrial-grade solution designed for high-volume, high-precision manufacturing of metal storage rack profiles. Engineered for the needs of businesses in the United Arab Emirates (UAE), this machine is capable of producing structural shelving and racking components used in logistics centers, warehouses, and industrial storage facilities.
Built to handle a wide range of material types and thicknesses, this roll forming system offers automated, continuous production with exact profile control, minimizing waste and maximizing efficiency.
Industries Served
This machine caters to several sectors across the UAE, including:
Warehousing & Logistics – For producing storage shelving, pallet racks, and cantilever systems.
Retail Storage Solutions – Used to manufacture store display racking and gondola shelves.
Industrial Equipment Suppliers – For producing components of industrial shelving systems.
E-Commerce Fulfillment Centers – To build modular rack systems for inventory handling.
Automotive Parts Storage – For OEM and aftermarket parts storage systems.
Example Applications:
Rack uprights and beams
Shelving support profiles
Slotted angle racks
Load-bearing channels
Machine Technical Specifications
Specification
Detail
Machine Type
Roll Forming Machine for Storage Rack Profiles
Production Speed
10–25 meters/min (depending on profile design)
Material Thickness Range
1.2 – 2.5 mm
Material Width Range
100 – 600 mm
Material Types
Cold-rolled steel, galvanized steel, high-strength steel
Material Yield Strength
Up to 350 MPa (50 ksi)
Roller Material
GCr15 (high-grade bearing steel)
Roller Surface Treatment
Hard chrome plated (for anti-corrosion and long wear life)
Number of Forming Stations
16–24 stations (customizable)
Roller Shaft Diameter
70 mm
Shaft Material
45# high-strength steel, precision-ground
Main Drive Type
Gearbox or chain drive (based on preference)
Power (UAE Compatible)
380V, 50Hz, 3-phase
Motor Power
11 – 15 kW
Cutting Method
Hydraulic post-cut system
Blade Material
Cr12Mov (heat-treated)
Control Type
PLC with touch screen (Siemens, Delta, or Mitsubishi)
Operating Mode
Fully automatic
De-coiling System
Manual or hydraulic uncoiler (3–5 ton capacity)
Punching/Notching System
Hydraulic punching (customized for slotted holes, notches)
Machine Frame
Welded structural steel, stress-relieved
Thickness of Frame Steel
18–20 mm
Profile Shape
Custom rack profile with slots or perforations
Profile Width and Depth
Varies based on customer requirement (commonly 40–80 mm wide, 40–60 mm deep)
Length Tolerance
±1.0 mm
Safety Features
Emergency stop button, protective guards, overload protection system
Material Used
Common Materials: Cold-rolled steel, galvanized steel
Gauge Range: 14 – 20 gauge (1.2 – 2.5 mm)
Typical Strength: 30–50 ksi yield strength depending on profile design
Customization Options
Profile-specific tooling
Inline punching and slotting units
Automatic stackers
Coil car tippers and hydraulic decoilers
Remote monitoring PLC systems
Servo feeder integration
Safety light curtains and enclosure options
Price Range
Prices start from: $65,000 USD
(Depending on features, automation level, and tooling complexity)
What Affects Final Price:
Profile design complexity
Number of forming stations
Level of automation (manual vs. fully automatic)
Inclusion of punching/notching systems
Type of de-coiler and stacker
Electrical configuration or special components for the UAE market
Delivery & Availability
All machines are new and custom-built to your profile and production needs. Delivery available across the UAE, including:
Abu Dhabi
Dubai
Sharjah
Ajman
Al Ain
Ras Al Khaimah
Fujairah
Machines are manufactured by trusted international partners and shipped directly to your facility.
Unique Selling Propositions (USPs)
UAE Electrical Compliance (380V / 50Hz)
Tailored Profile Tooling for rack systems used in GCC markets
Fully Automated Controls reduce labor and error
Robust Frame Build for heavy-duty, long-term use
Inline Punching Capability to save time and post-processing
Short Lead Times with fast export processing
One-Year Warranty + Full spare parts and after-sales service
→ These advantages translate to:
Lower production costs
Higher throughput per shift
Consistent, high-quality rack components
Fewer manual interventions
Need a Quote?
If you have:
Profile drawings
Material specifications
Power requirements
Special length or hole requirements
Please send your details to:
[email protected]
Our team will provide a customized quote with machine specifications suited to your needs.
Frequently Asked Questions (FAQ)
Q: Can this machine produce multiple rack profiles?
A: Yes. With interchangeable tooling or adjustable roll stations, the machine can produce several sizes or styles of rack profiles.
Q: How long does installation take in the UAE?
A: Typically 5–7 days, including operator training. Remote or on-site support is available.
Q: Can we customize the punching pattern?
A: Absolutely. Just provide a hole layout drawing and our engineers will integrate the right punching system.
Q: Does this machine require a skilled operator?
A: No. The PLC-based control system is user-friendly and training is provided with installation.
Q: What support do you provide post-sale?
A: One-year warranty, lifetime technical support, spare parts availability, and optional maintenance packages.
For dependable, high-performance rack profile production in the UAE, the Sheet Metal Rack Storage Roll Forming Machine from Machine Matcher is your go-to solution. Precision-engineered for durability, efficiency, and local compliance, it's the perfect investment to scale your production and meet growing storage demands.
