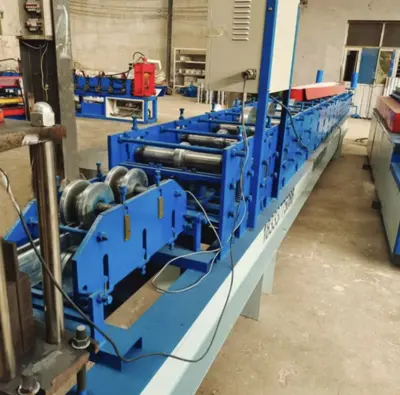

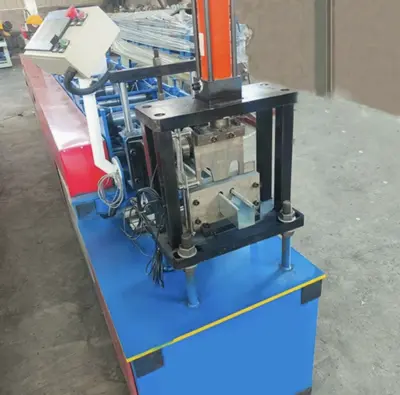

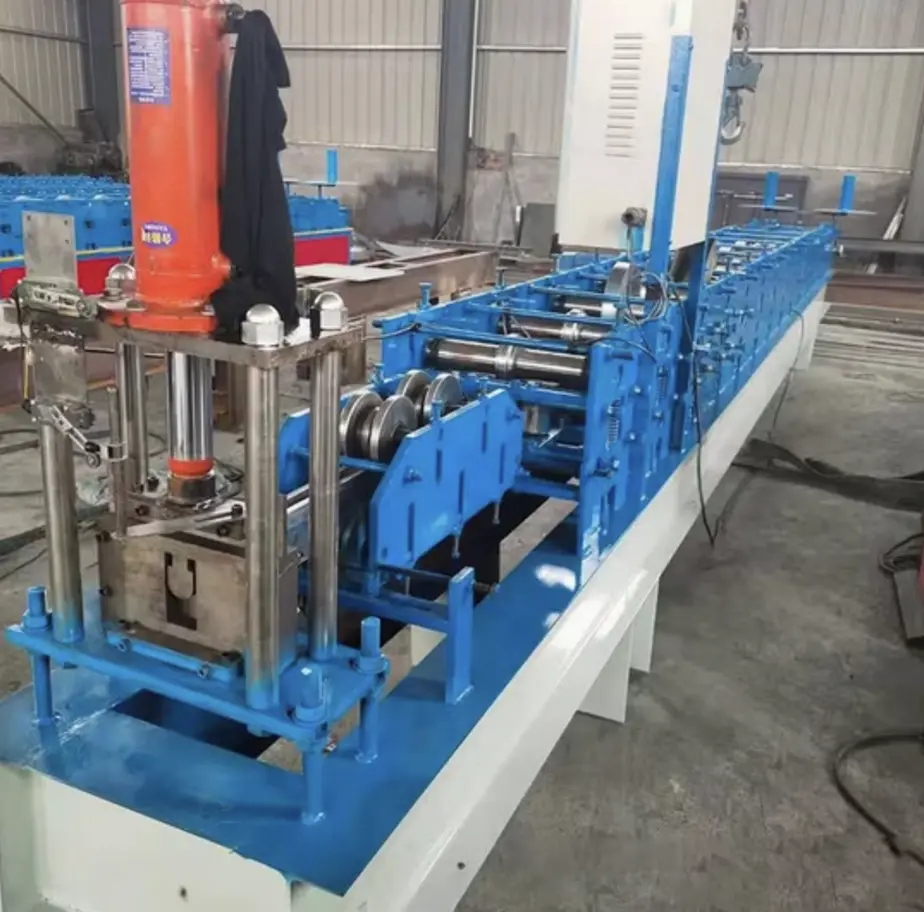

The Guide Rail Roll Forming Machine is a precision-engineered equipment designed to manufacture guide rails used in various applications, including elevators, conveyor systems, and industrial frameworks. This machine is tailored for producing high-strength, uniform guide rails with minimal material waste, meeting the stringent quality and safety standards expected in the UK.
Key Features:
High Precision: Ensures dimensional accuracy, critical for guide rails used in safety-sensitive environments like elevators.
Durability: Built with high-quality components, including hardened rollers and a robust frame.
Automation: Equipped with advanced PLC systems for seamless operation and reduced manual intervention.
Versatility: Capable of handling various profile sizes and materials, including galvanized steel, stainless steel, and aluminum.
Energy Efficiency: Designed for optimal power consumption, adhering to UK energy efficiency regulations.
2. Machine Specifications
Component
Specification
Material Thickness
1.0 mm – 5.0 mm
Material Width
Up to 600 mm
Roller Material
High-grade GCr15 steel with hard chrome plating
Number of Rollers
18–24 stages (depending on profile complexity)
Main Motor Power
15 kW – 30 kW
Hydraulic Cutting System
7.5 kW with high-precision steel blades
Machine Speed
10–25 meters per minute
Control System
PLC with HMI touch screen (brands like Siemens or Mitsubishi)
Frame Construction
Welded steel structure
Punching System
Hydraulic or servo-driven, adjustable for specific hole patterns
Power Supply
415V, 50 Hz (UK standard)
Safety Features
Emergency stop, safety guards, and protective enclosures
Dimension (L×W×H)
Approximately 8m × 1.5m × 1.5m
Weight
8–12 tons (depending on configuration)
3. Applications of Guide Rail Roll Forming Machines
Elevator Systems: Producing durable rails for elevator cabins and counterweights.
Conveyor Systems: Manufacturing guide rails for industrial material handling systems.
Storage Solutions: Fabricating rails for automated storage and retrieval systems.
Construction: Creating components for safety barriers and framework in buildings.
4. Benefits for UK Industries
Custom Profiles: Ability to tailor profiles to specific project needs.
Cost-Effectiveness: Reduced material waste and labor costs due to automation.
Compliance: Meets UK and EU standards for safety and manufacturing.
Quick Turnaround: High production speeds ensure timely delivery of large-scale projects.
5. Question and Answer Section
Q1: What materials can the machine process?
A: The machine is compatible with galvanized steel, stainless steel, aluminum, and other metal alloys commonly used in the UK.
Q2: Is the machine energy efficient?
A: Yes, it is designed to comply with UK energy efficiency standards, ensuring lower operational costs.
Q3: Can it handle multiple profile sizes?
A: Yes, the machine is adjustable to produce various guide rail sizes and shapes.
Q4: What is the expected delivery time for the machine in the UK?
A: Delivery times vary but typically range between 8 to 12 weeks, depending on customization requirements.
Q5: Are spare parts and maintenance support available in the UK?
A: Yes, spare parts and maintenance services are readily available through local distributors or service centers.
Q6: Does it require skilled labor to operate?
A: Basic training is sufficient to operate the machine, thanks to its user-friendly PLC control system.
Q7: How does the machine ensure safety during operation?
A: The machine includes emergency stops, safety guards, and protective enclosures to prevent accidents.
