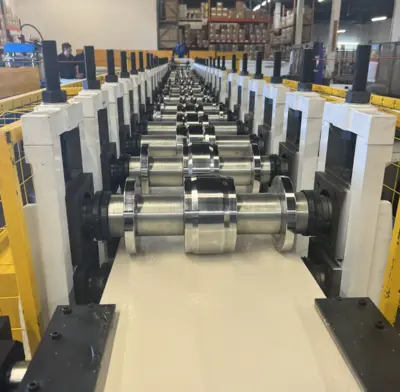

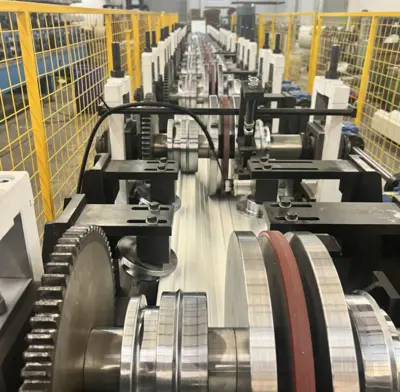

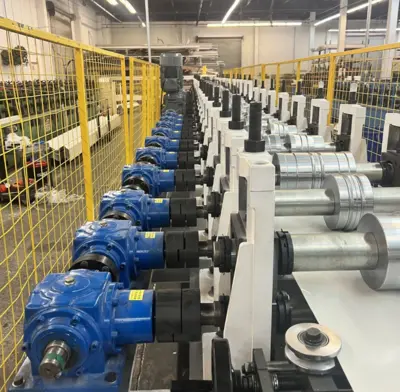

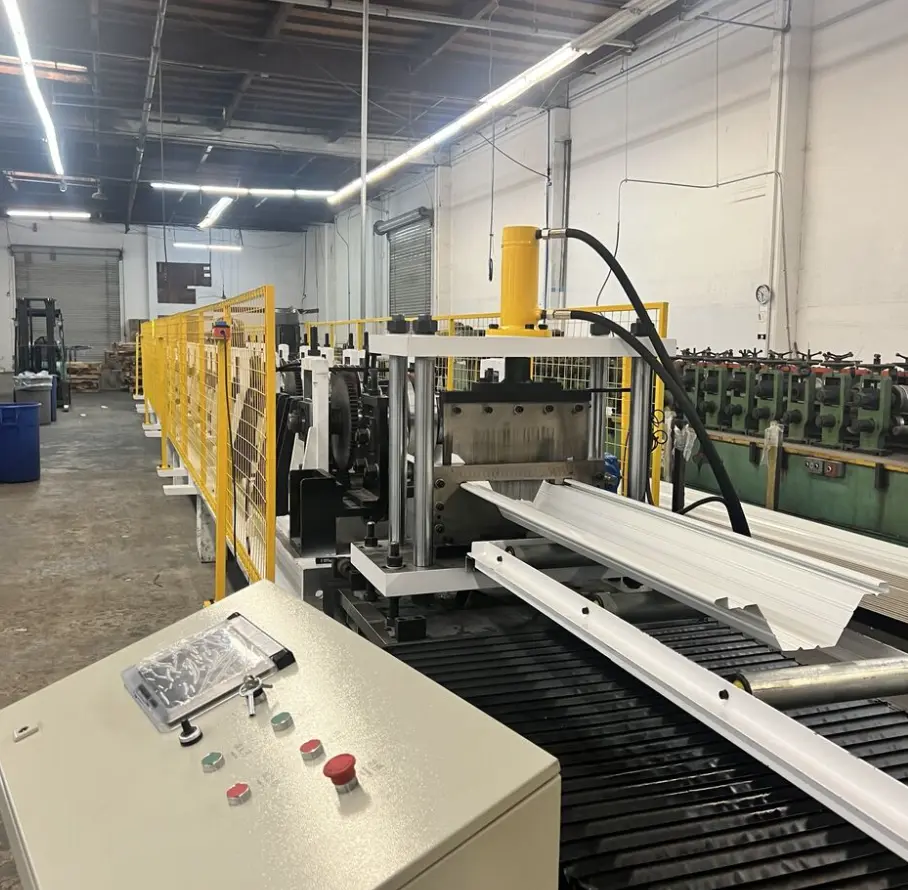

Metal Patio Cover Cold Roll Forming Machine Florida

The Metal Patio Cover Cold Roll Forming Machine is engineered to fabricate metal profiles tailored for patio covers. Its advanced technology ensures precise shaping, minimal waste, and high efficiency, meeting the growing demands of the Florida market. It accommodates a variety of materials such as aluminum, steel, and galvanized sheets, which are widely used for patio cover construction.
Key Features:
High Production Speed: Designed to meet large-scale production requirements.

Precision Engineering: Ensures accurate dimensions and consistent quality.

Material Versatility: Handles different materials and gauges.

User-Friendly Operation: Automated PLC control system for ease of use.

Customization Options: Supports custom designs and profiles based on client specifications.
Applications in Florida
Residential Patio Covers: Protect outdoor spaces from sun and rain.

Commercial Spaces: Enhance aesthetic and functional outdoor areas in restaurants, cafes, and offices.

Outdoor Storage Shelters: Durable and weather-resistant covers for storage.
Setup and Installation
The machine setup includes:
Positioning: Secure the machine on a leveled surface.

Power Connection: Connect to the appropriate power supply.

Material Feeding: Load metal coils using optional decoilers.

Calibration: Set up profiles and dimensions using the PLC interface.

Testing: Perform trial runs to ensure smooth operation.
Maintenance Requirements
Daily Inspections: Check rollers, motors, and cutting blades for wear and tear.

Lubrication: Regularly lubricate moving parts to reduce friction.

Electrical System Check: Ensure PLC and motors are functioning correctly.

Cleaning: Remove debris and residue from the machine after each production run.
Question and Answer Section
Q1: What materials can the machine process?
A1: The machine can process aluminum, steel, and galvanized sheets with thicknesses ranging from 0.4 mm to 1.2 mm.
Q2: Can the machine produce custom profiles?
A2: Yes, it can be customized to produce specific profiles for patio covers, depending on the client’s requirements.
Q3: What is the average production speed?
A3: The machine operates at a speed of 10–20 meters per minute, depending on the material and profile complexity.
Q4: Is the machine suitable for small businesses?
A4: Absolutely. The machine is designed for efficiency and scalability, making it ideal for both small-scale and large-scale manufacturers.
Q5: What are the power requirements in Florida?
A5: Most machines are compatible with 220V/60Hz or 380V/60Hz power supplies, which are standard in Florida.
Q6: How long does it take to install the machine?
A6: With professional assistance, installation can be completed within 2–3 days.
Q7: What optional extras are available?
A7: Extras include automatic stackers, coil handling systems, remote PLC operation, and hydraulic uncoilers.
Q8: What is the warranty period?
A8: Most manufacturers provide a warranty of 12–18 months for the machine and components.

Material Thickness: 0.4 mm to 1.2 mm
Material Width: Up to 1200 mm
Roller Material: High-grade steel with chrome plating
Frame Structure: Heavy-duty steel for durability
Motor Power: 7.5 kW to 15 kW (customizable)
Hydraulic Cutting: Automatic hydraulic cutting system
Control System: PLC control with touch-screen interface
Production Speed: 10–20 meters per minute
Safety Features: Emergency stops, safety guards
Optional Extras: Decoilers, stackers, remote operation
Power Requirements: 220V/380V, 50Hz/60Hz (customizable)
Installation Time: 2–3 days (with professional support)
