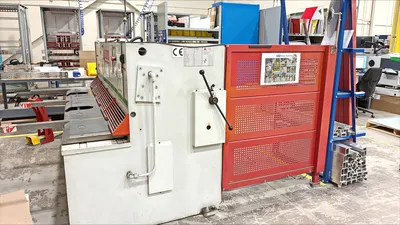

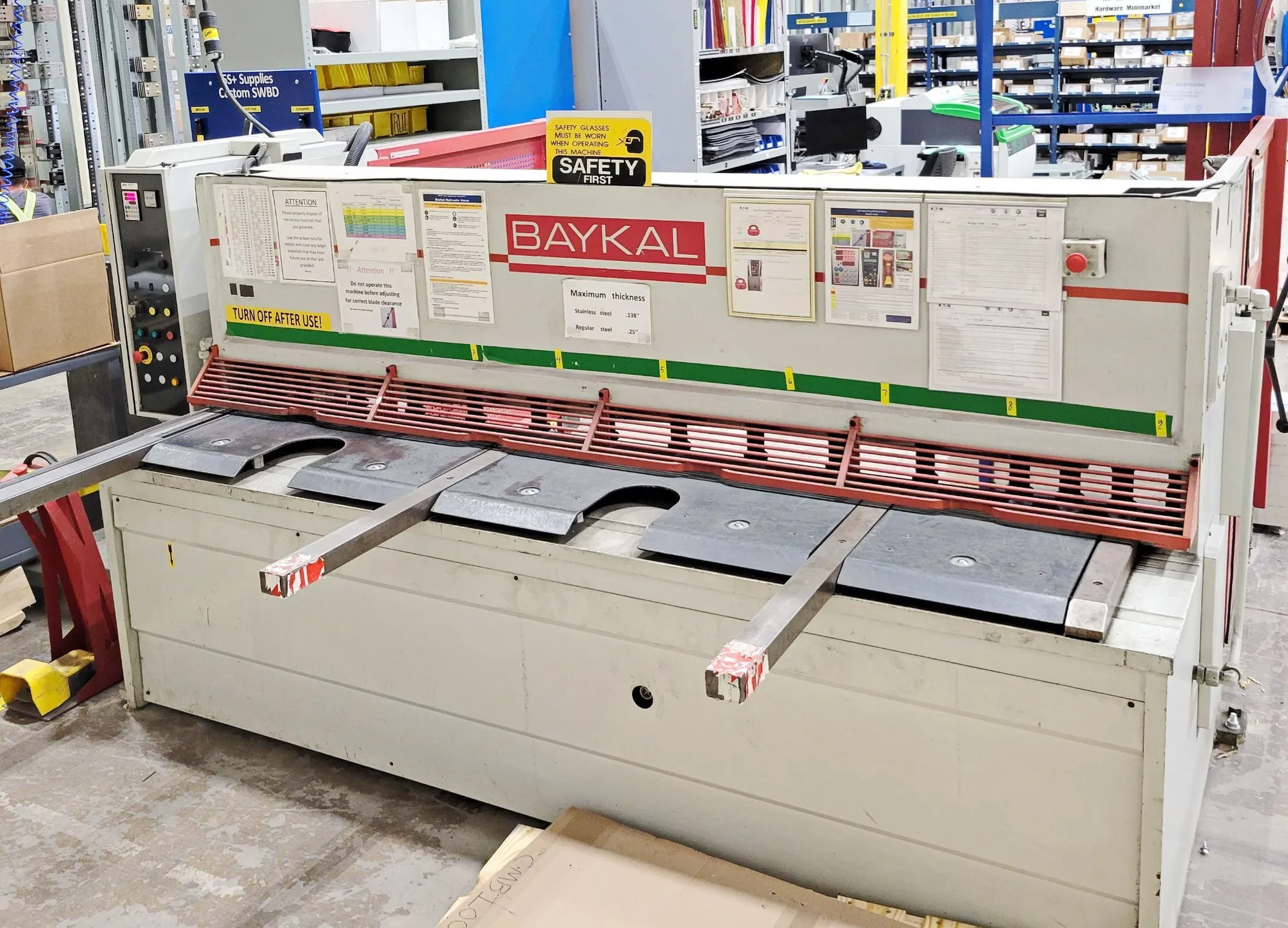

USED 2010 BAYKAL HGL 2600X6
Overview
Description
2010 Baykal HGL 2600X6 Hydraulic Shear, Motorized Backgauge W/ Digital Position Readout, Swing-Beam Shearing Design, High-Alloy Steel Blades, Hydraulic Plate Hold-Downs, Shadow LINE Cutting Light, Front Finger Guard And Rear Light Curtain
Specifications
| Max Cutting Length | 100.8" | 2,560.3 mm |
|---|---|---|
| Cutting Angle | 1.6° | 1.6° |
| Type | Hydraulic Swing-Beam | Hydraulic Swing-Beam |
| Motor Power | 15 hp | 11.2 kW |
| Max Sheet Thickness (Steel) | 0.236" | 5.9944 mm |
| Max Sheet Thickness (Stainless) | 0.157" | 3.9878 mm |
| Cutting Speed | 24 cut/min. | 24 cut/min. |
| Table Height | 31.5" | 800.1 mm |
| Made In | Turkey | Turkey |
| Dimensions | 132.3" X 99.2" X 61.4" | 132.3" X 99.2" X 61.4" |
| Weight | 10,296 lb | 10,296 lb |
Equipped With
Motorized backgauge w/ digital position readout
Swing-beam shearing design
High-alloy steel blades for stainless steel cutting
Hydraulic plate hold-downs
Manual blade gap / cutting clearance adjustment
Front support arms
Rear safety guarding
Front finger guard & rear light curtain
Shadow line cutting Light
