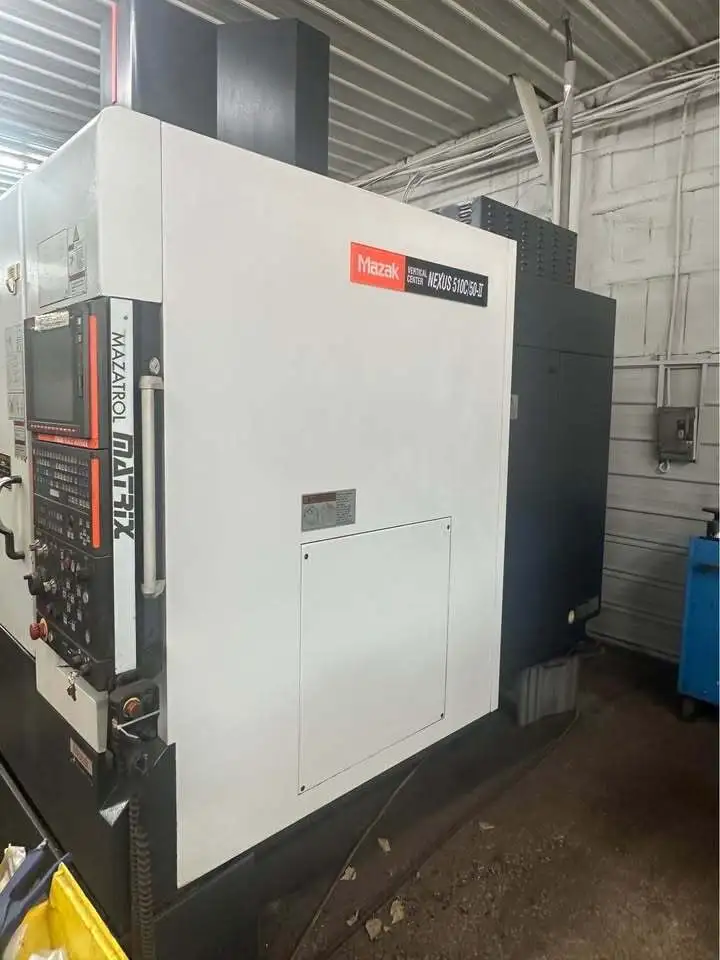

Mazak Nexus 510C-II Vertical Machining Center (2007)
| size | 41" x 20" x 20" | 41" x 20" x 20" |
| X Travel | 41 mm | 1.6142" |
| Y Travel | 20 mm | 0.7874" |
| Z Travel | 20 mm | 0.7874" |
| # ATC | 30 | 30 |
| Taper | 50 | 50 |
| Table-W | 21 mm | 0.8268" |
| Table-L | 51 mm | 2.0079" |
| # Axis | 4 | 4 |
Mazak Nexus 510C/50-II Vertical Machining Center (2007)
Travels & Capacity
X-Axis Travel 41.34" (1,050 mm)
Y-Axis Travel 20.08" (510 mm)
Z-Axis Travel 20.08" (510 mm)
Table Size 51.18" x 21.65"
Max Table Load 2,646 lbs
Spindle Performance
Taper CAT 50
Max Speed 6,000 RPM
Motor Output (30 min) 25.0 HP
Torque High-torque geared or integral design
Automatic Tool Changer (ATC) Speed & Feed
Capacity 30 Tools (optional 24)
Max Tool Diameter 4.92"
Max Tool Weight 33 lbs
Rapid Traverse (X/Y/Z) 1,417 IPM
