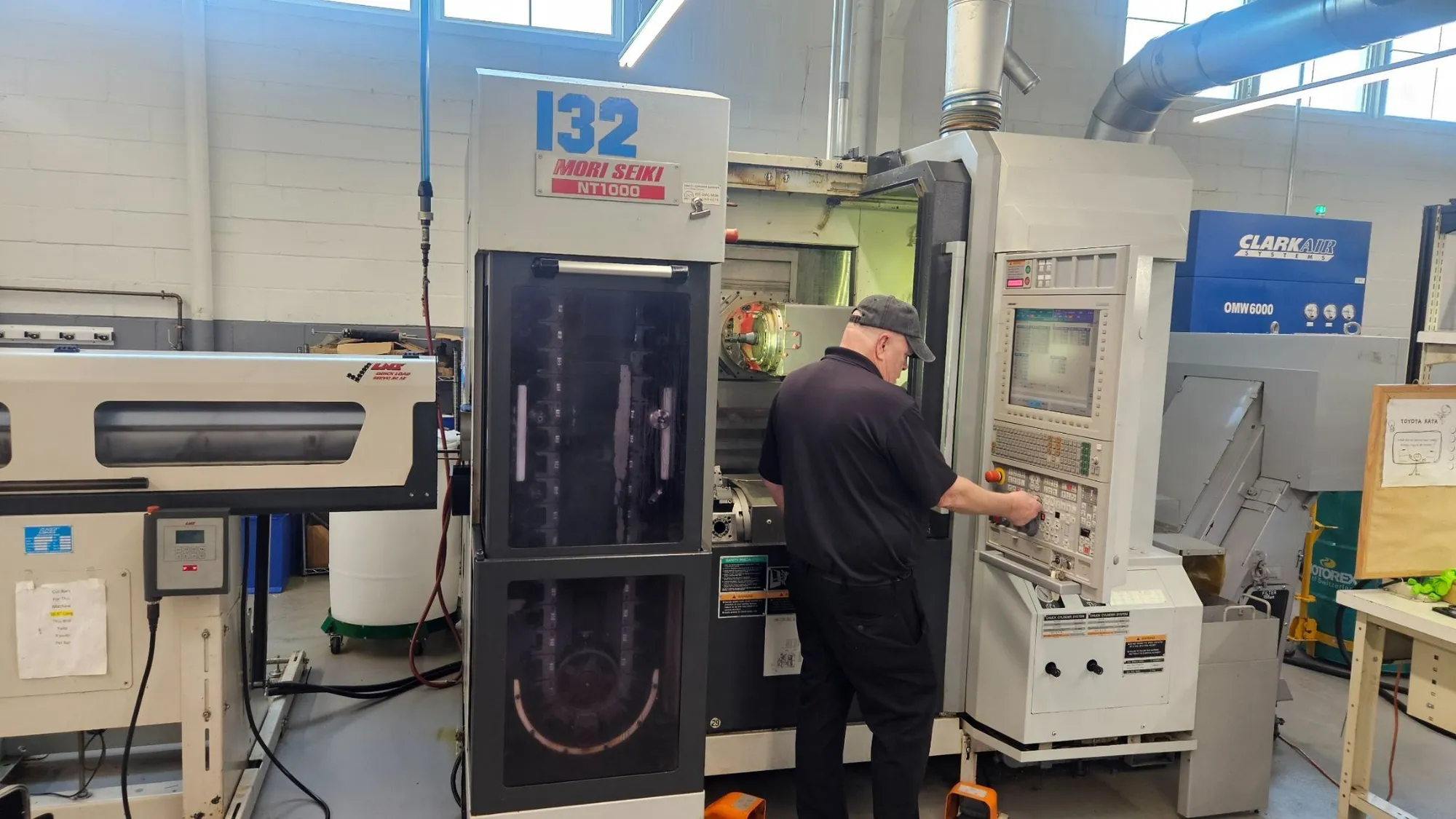

USED 2010 MORI SEIKI NT-1000 SZ
Overview
Mori Seiki NT-1000 SZ CNC Mill/Turn Center. integrated milling & turning, MSX-711 IV CNC control, and 38-position tool changer. Maximum turning diameter 14.5", spindle speeds up to 12,000 RPM. Includes Renishaw probe.
Specs
2010 Mori Seiki NT-1000/SZ CNC Integrated Milling & Turning Center
CAPACITY:
Max Turning Diameter for Tool Spindle... 14.5"
Max Turning Diameter for Turret 2 ... 10.6"
Maximum Turning Length ………………………… 16.6″
Bar Work Capacity ……………………………………. 2″
SPINDLE 1, MAIN SPINDLE:
Max. Spindle Speed …………………………………… 6000 RPM
Spindle Nose …………………………………………….. JIS A2-5
Spindle Hole Diameter …………………………….. 2.4″
Bar Capacity …………………………………………….. 2″
Min. Spindle Indexing Increment ……………. 0.0001 Degree
Spindle Motor …………………………………………… 15 HP
C-Axis 360 Degree
SPINDLE 2, SUB-SPINDLE:
Spindle Speed ………………………………………….. 6000 RPM
Bar Capacity ……………………………………………. 1.5″
Spindle Motor ………………………………………….. 10 HP
X-2-Axis 6.1"
Z2 Axis 24"
TOOL SPINDLE
Spindle Speed …………………………………………. 12,000 RPM
Spindle Taper ………………………………………….. CAPTO C5
Tool Capacity (ATC) ……………………………….. 38 ATC
Tool Change Time ………………………………….. 1.2 Seconds
B-Axis Indexing Increment ……………………. 0.0001 Degrees
Spindle Motor......................12 HP
X1-Axis 15"
Y-Axis 8.3"
Z1-Axis 18.1"
B-Axis +- 120 Degrees
Turret 2 (lower Turret)
Number of tool Stations ... 10
DIMENSIONS & WEIGHTS:
Floor Space ………………………………………….. 95.5″ L (153" W Chip Conv) x 106.5″ W
Machine Height …………………………………… 94″
Machine Weight …………………………………… 19,000 Lbs.
Equipped With
EQUIPPED WITH:
MORI SEIKI MSX 711 IV CNC Control
38-Position Automatic Tool Changer
6" Chuck and Collet for Main Spindle
5" Chuck for Sub Spindle
Renishaw Probe
Coolant System
Chip Conveyor
Workpiece Discharge Unit
LNS Bar Feeder
Inspect Under Power in our NJ Warehouse
