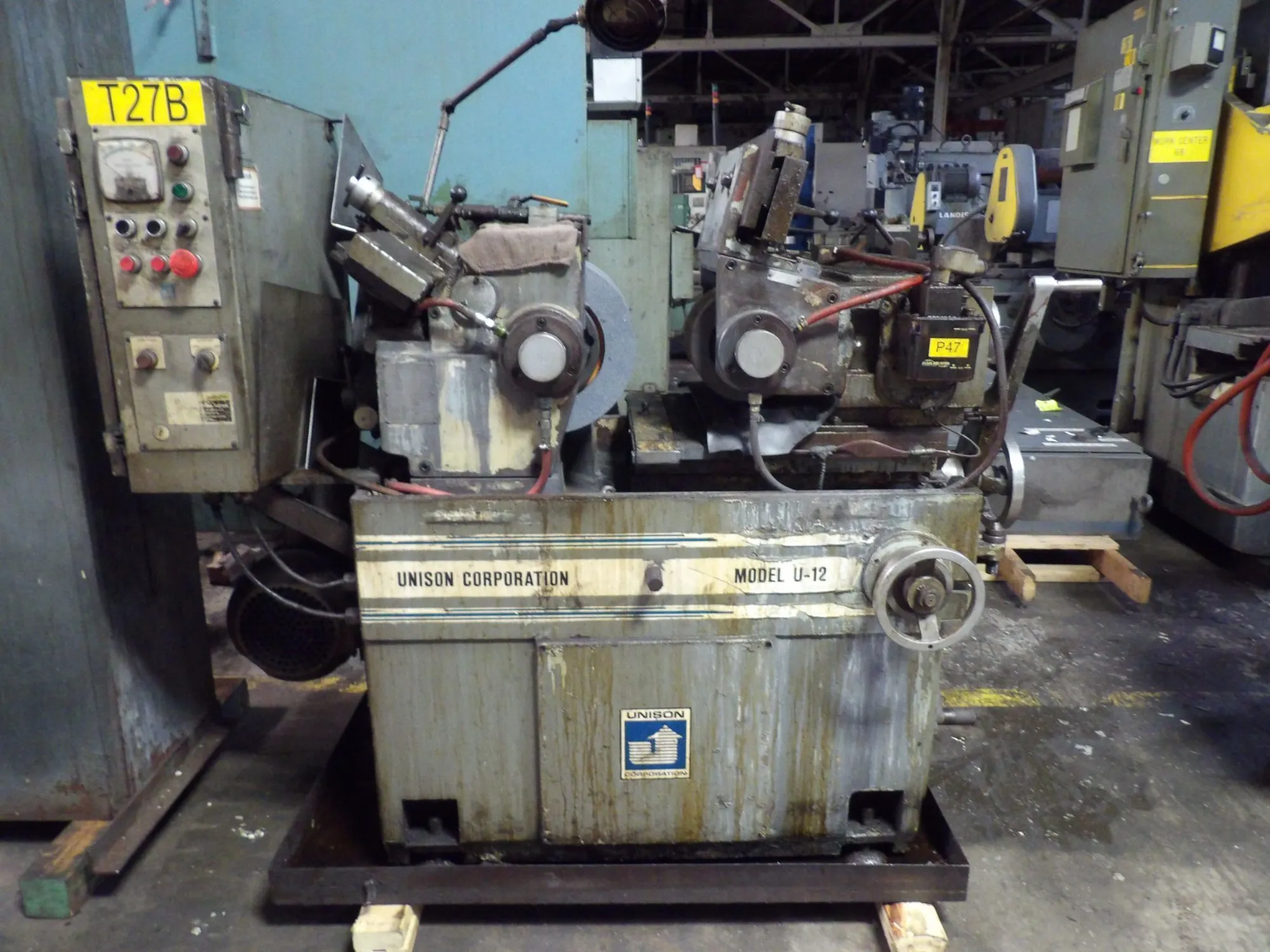

USED 1996 UNISON U-12

UNISON U-12 CENTERLESS GRINDER
S/N 0-12 135 YEAR: 1996

STANDARD SPECIFICATIONS
Model.....................................475-2

CAPACITY
Minimum Dia (Standard Workrest)...........0.04”
Max Dia (Standard Workrest)...............1.58”
Max Dia (Special Workrest)................3.0”

GRINDING WHEEL
Max Wheel Dia.............................12”
Max Wheel Width...........................6”
Wheel Bore................................5”
Grinding Wheel Motor......................7.5 HP
Grinding Wheel Speed......................1,700-1,750 RPM

REGULATING WHEEL
Regulating Wheel Motor....................1 HP
Regulating Wheel Speeds(7-Step)...........21-333 RPM
Tilt Angle................................+/-5 Degrees
Swivel Angle..............................+/-5 Degrees

DRIVE & HYDRAULIC SYSTEM
Hydraulic Pump Motor......................0.25 HP

ELECTRICAL
Volts.....................................220-440
Phase.....................................3
Hertz.....................................60

DIMENSIONS & WEIGHT
Overall Size.............................64”L x 68”W x 60”H
Weight....................................3,900LBS

EQUIPPED WITH
Thru-feed workrest.
In-feed (plunge) capability with hand lever.
Hydraulic wheel truing.
Coolant system & tank.

Specifications are deemed accurate, however, subject to verification or prior sale.
