USED TOLAN 6000 GALLON

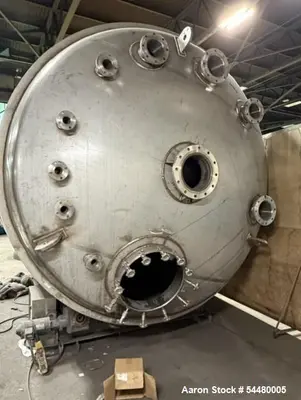

Unused Tolan Machinery 6,000 Gallon 316L Stainless Steel Reactor | #4 Polish Jacketed Process Vessel. Half-pipe jacket on the shell and bottom head, rated at FV/150 PSI @ 350 degrees F. Internal vessel is rated at FV/70 PSI @ 350 degrees F. 120" overall diameter x 122" height. 316L Stainless Steel (Wetted), 304L Stainless Steel (Non Wetted) MOC. #4 internal polish, mill finish external polish. 24" top manway. 12" Agitator Nozzle. (4) internal baffles. (4) leg mounts. NB certified. Serial# 9514. Built 2024.

Used Equipment Facts About This Machine
Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 6,000 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9514
Certification: National Board Certified

Description
Unused Tolan Machinery 6,000 gallon stainless steel reactor designed for high-pressure, vacuum, and temperature-controlled industrial processing applications. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this vessel is suitable for pharmaceutical, chemical, cosmetic, food, and specialty processing operations requiring corrosion resistance and sanitary construction.

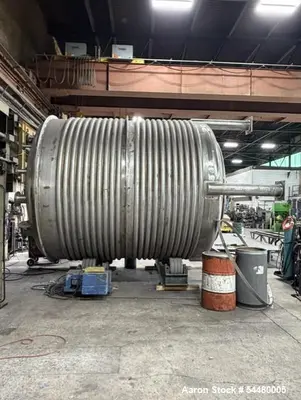

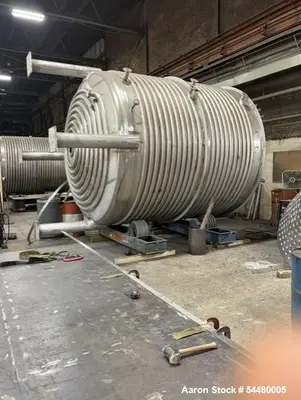

The reactor features a half-pipe jacket on the shell and bottom head rated for full vacuum to 150 PSI at 350°F, allowing efficient thermal transfer for heating and cooling applications. The internal vessel is rated for full vacuum to 70 PSI at 350°F, supporting demanding reaction and mixing processes.
This unit includes a #4 polished interior finish for sanitary processing, mill finish exterior, 24” top manway, 12” agitator nozzle, and four internal baffles for improved product movement and mixing performance. Mounted on four heavy-duty legs and National Board certified, this reactor is engineered for large-scale industrial production environments.

Specifications

Manufacturer: Tolan Machinery
Capacity: 6,000 gallons
Type: Jacketed reactor / pressure vessel
Year Built: 2024
Serial Number: 9514
Certification: National Board certified

Vessel Construction

Wetted Material: 316L stainless steel
Non-Wetted Material: 304L stainless steel
Internal Finish: #4 polish
External Finish: Mill finish

Pressure & Temperature Ratings
Internal Vessel

Rating: Full vacuum / 70 PSI
Temperature Rating: 350°F

Jacket

Type: Half-pipe jacket (shell and bottom head)
Rating: Full vacuum / 150 PSI
Temperature Rating: 350°F

Dimensions

Overall Diameter: 120”
Vessel Height: 122”

Features

24” top manway
12” agitator nozzle
(4) internal baffles
(4) leg mounts

Applications
Ideal for large-scale blending, heating, cooling, emulsification, and pressure processing applications.

Products This Equipment Would Be Used For

Pharmaceutical formulations
Chemical compounds
Cosmetic products
Food ingredients
Nutraceutical processing
Adhesives and resins
Specialty chemicals
Biotech products
Emulsions and slurries
High-purity liquid processing
