USED TOLAN 6000 GALLON

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 6,000 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9513

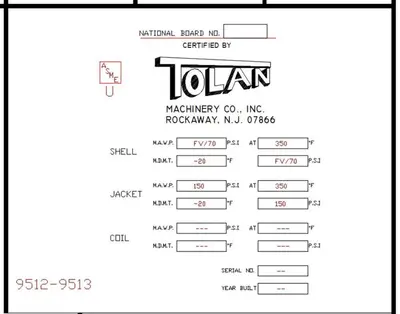

Certification: National Board Certified

Description

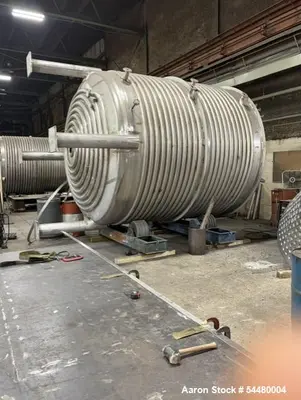

Unused Tolan Machinery 6,000 gallon stainless steel reactor engineered for high-capacity industrial processing under vacuum, pressure, and elevated temperature conditions. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this reactor is suitable for demanding pharmaceutical, chemical, food, biotech, and specialty manufacturing applications.

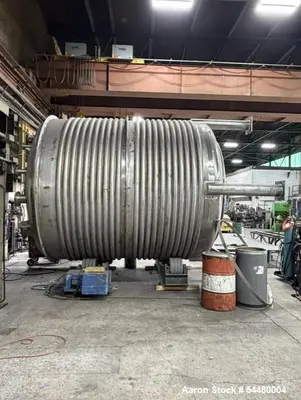

The vessel features a half-pipe jacket on the shell and bottom head rated for full vacuum to 150 PSI at 350°F, providing efficient thermal transfer for heating and cooling operations. The internal vessel is rated for full vacuum to 60 PSI at 350°F, allowing safe operation in pressure and vacuum processing environments.
Designed for large-scale production, the reactor includes a 24” top manway, 12” agitator nozzle, and four internal baffles for enhanced mixing efficiency and product movement. Mounted on four leg supports and National Board certified, this vessel combines heavy-duty construction with sanitary process capabilities.

Specifications

Manufacturer: Tolan Machinery
Capacity: 6,000 gallons
Type: Jacketed reactor / pressure vessel
Year Built: 2024
Serial Number: 9513
Certification: National Board certified

Vessel Construction

Wetted Material: 316L stainless steel
Non-Wetted Material: 304L stainless steel
Internal Finish: Mill finish
External Finish: Mill finish

Pressure & Temperature Ratings
Internal Vessel

Rating: Full vacuum / 60 PSI
Temperature Rating: 350°F

Jacket

Type: Half-pipe jacket (shell and bottom head)
Rating: Full vacuum / 150 PSI
Temperature Rating: 350°F

Dimensions

Overall Diameter: 120”
Vessel Height: 122”

Features

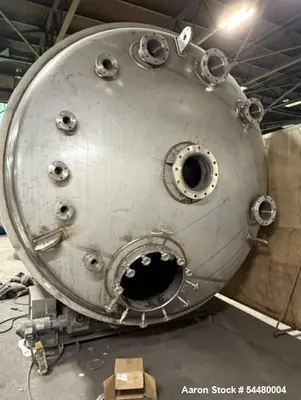

24” top manway
12” agitator nozzle
(4) internal baffles
(4) leg mounts

Applications
Ideal for large-scale reactions, blending, heating, cooling, and vacuum processing in sanitary and industrial environments.

Products This Equipment Would Be Used For

Pharmaceutical formulations
Chemical reactions
Cosmetic products
Food ingredients
Nutraceutical products
Adhesives and resins
Specialty chemicals
Biotech processing fluids
Emulsions and slurries
High-purity liquid processing
