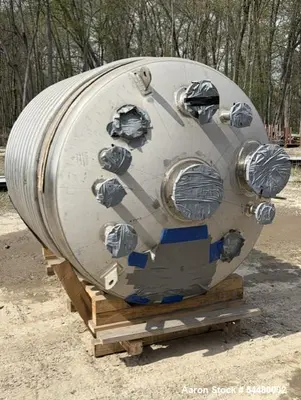

USED TOLAN 1150 GALLON

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 1,150 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9489
Certification: National Board Certified

Description
Unused Tolan Machinery 1,150 gallon stainless steel reactor engineered for high-pressure, vacuum, and elevated temperature processing applications. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this vessel is ideal for pharmaceutical, chemical, cosmetic, and food-grade processing operations.
The reactor features a half-pipe jacket on both the shell and bottom head, rated for full vacuum to 150 PSI at 400°F, providing efficient heat transfer for heating and cooling processes. The internal vessel is rated for full vacuum to 75 PSI at 400°F, allowing operation under demanding process conditions.
Additional features include a #4 polished interior finish, mill finish exterior, 18” top manway, 8” agitator nozzle, and four internal baffles for enhanced mixing efficiency. Mounted on four legs and National Board certified, this reactor is built for reliable performance in sanitary and industrial environments.

Specifications

Manufacturer: Tolan Machinery
Capacity: 1,150 gallons
Type: Jacketed reactor / pressure vessel
Year Built: 2024
Serial Number: 9489
Certification: National Board certified

Vessel Construction

Wetted Material: 316L stainless steel
Non-Wetted Material: 304L stainless steel
Internal Finish: #4 polish
External Finish: Mill finish

Pressure & Temperature Ratings
Internal Vessel

Rating: Full vacuum / 75 PSI
Temperature Rating: 400°F

Jacket

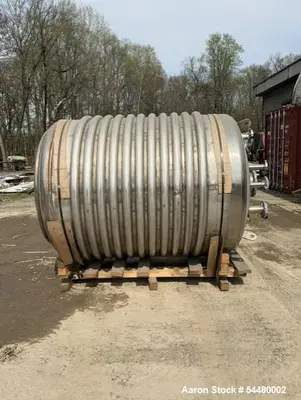

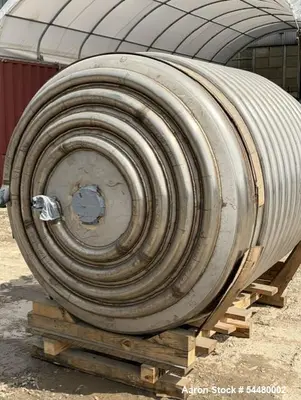

Type: Half-pipe jacket (shell and bottom head)
Rating: Full vacuum / 150 PSI
Temperature Rating: 400°F

Dimensions

Overall Diameter: 66”
Vessel Height: 74”

Features

18” top manway
8” agitator nozzle
(4) internal baffles
(4) leg mounts

Applications
Ideal for pressure reactions, heating, cooling, blending, and vacuum processing in sanitary and industrial applications.

Products This Equipment Would Be Used For

Pharmaceutical formulations
Cosmetic products
Food ingredients
Chemical reactions
Nutraceutical processing
Specialty chemicals
Adhesives and resins
Emulsions
Biotech processing
High-purity liquid products
