USED TOLAN 1400 GALLON

Manufacturer: Tolan Machinery
Equipment Type: Jacketed Reactor / Pressure Vessel
Capacity: 1,400 Gallons
Material: 316L Stainless Steel (Wetted Surfaces)
Condition: Unused
Year Built: 2024
Serial Number: 9484
Certification: National Board Certified

Description
Unused Tolan Machinery 1,400 gallon stainless steel reactor engineered for high-pressure, vacuum, and elevated temperature processing applications. Constructed with 316L stainless steel wetted surfaces and 304L stainless steel non-wetted surfaces, this reactor is ideal for pharmaceutical, chemical, food, and specialty process industries requiring corrosion resistance and sanitary construction.
The vessel is internally rated for full vacuum to 75 PSI at 400°F and features a half-pipe jacket on both the shell and bottom head rated for full vacuum to 150 PSI at 400°F, providing efficient thermal transfer for heating and cooling applications.
Additional features include a #4 internal polish, bead blast external finish, four internal baffles for enhanced mixing efficiency, an 8” agitator nozzle, and an 18” top manway for operator access and inspection. Mounted on four leg supports and National Board certified, this reactor is designed for demanding industrial processing environments.

Specifications

Manufacturer: Tolan Machinery
Capacity: 1,400 gallons
Type: Jacketed reactor / pressure vessel
Year Built: 2024
Serial Number: 9484
Certification: National Board certified

Vessel Construction

Wetted Material: 316L stainless steel
Non-Wetted Material: 304L stainless steel
Internal Finish: #4 polish
External Finish: Bead blast

Pressure & Temperature Ratings
Internal Vessel

Rating: Full vacuum / 75 PSI
Temperature Rating: 400°F

Jacket

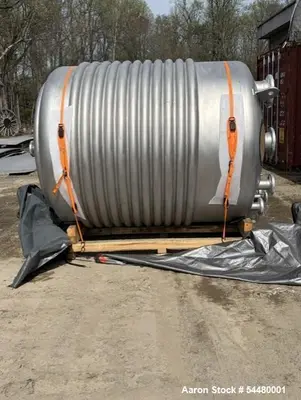

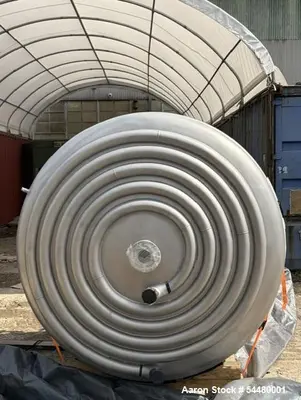

Type: Half-pipe jacket (shell and bottom head)
Rating: Full vacuum / 150 PSI
Temperature Rating: 400°F

Dimensions

Overall Diameter: 72”
Vessel Height: 75”

Features

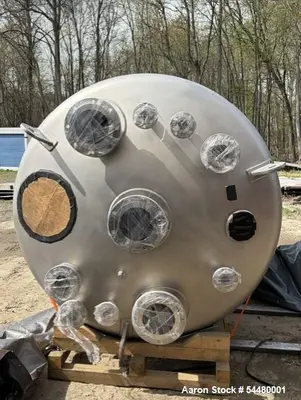

18” top manway
8” agitator nozzle
(4) internal baffles
(4) leg mounts

Applications
Ideal for pressure reactions, blending, heating, cooling, and vacuum processing in sanitary and industrial environments.

Products This Equipment Would Be Used For

Pharmaceutical formulations
Chemical reactions
Cosmetic creams and lotions
Food ingredients
Nutraceutical products
Specialty chemicals
Adhesives and resins
Emulsions
High-purity liquids
Biotech processing materials
