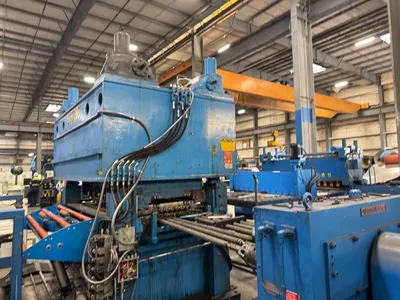

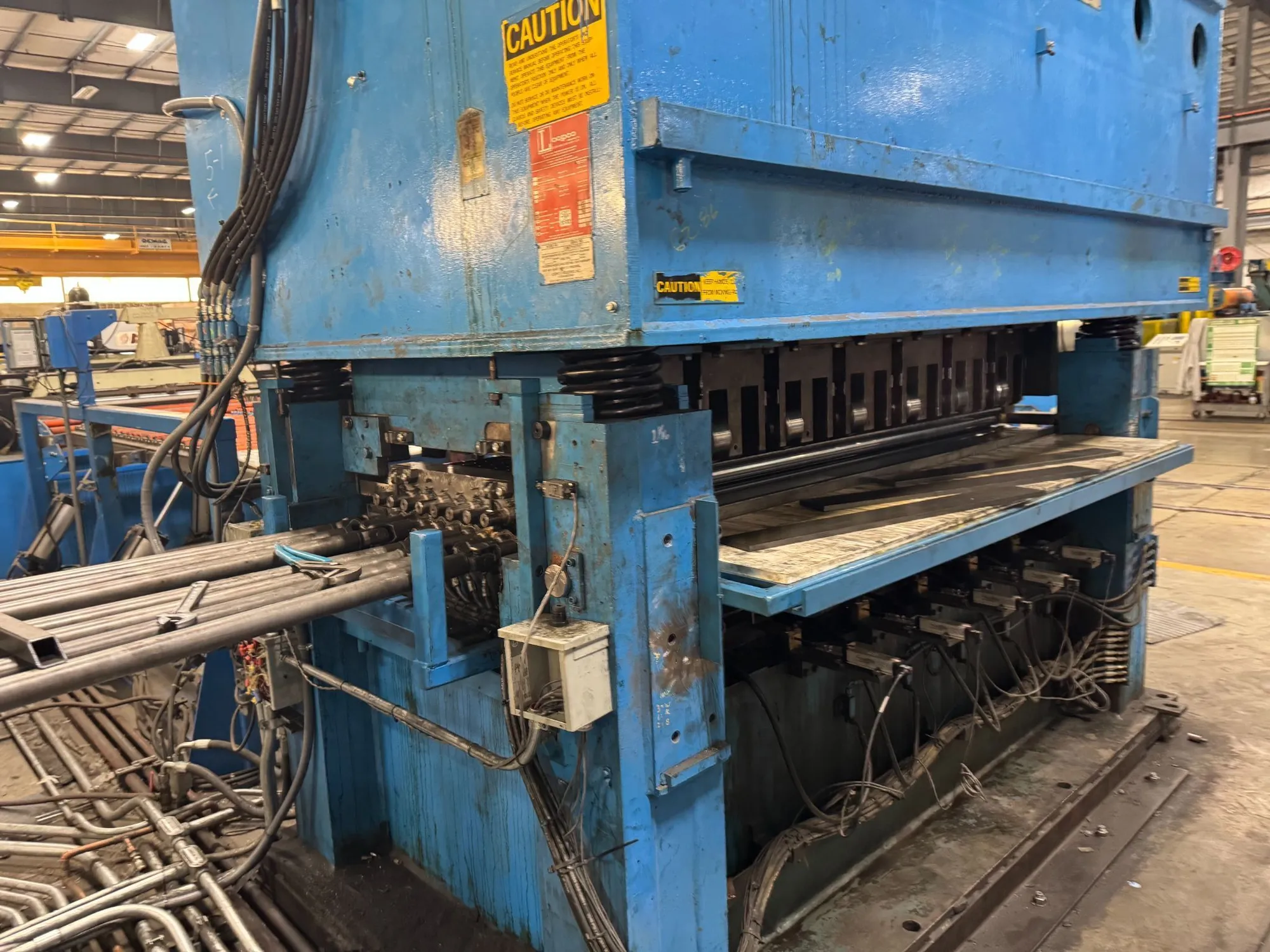

72" x .250" Loopco 5-High Precision Leveler
| Max Width | 72" | 1,828.8 mm |
| Max Thickness | 0.25" | 6.35 mm |
Thickness Range: .050" - .250"
Width Range: 72" - 12"
17 Rolls (8 over 9)
Work Roll Diameter: 2.50" (on 2.75" Centers)
Intermediate Roll Diameter: 1.75"
Max Speed: 300 FPM
Diameter Back-Up Rolls: 5"
7 Flights Top & Bottom Back-Up Rolls
5 Flights individual Motorized Adjustment
Linear Vertical Roll Positioners
Motorized Tilt
250 HP DC Motor
Entry Pinch Rolls
Operator Push Button Stands
Allen Bradley Panel View Readouts
Hydraulic Manifold Assembly
Hydraulic Lines
