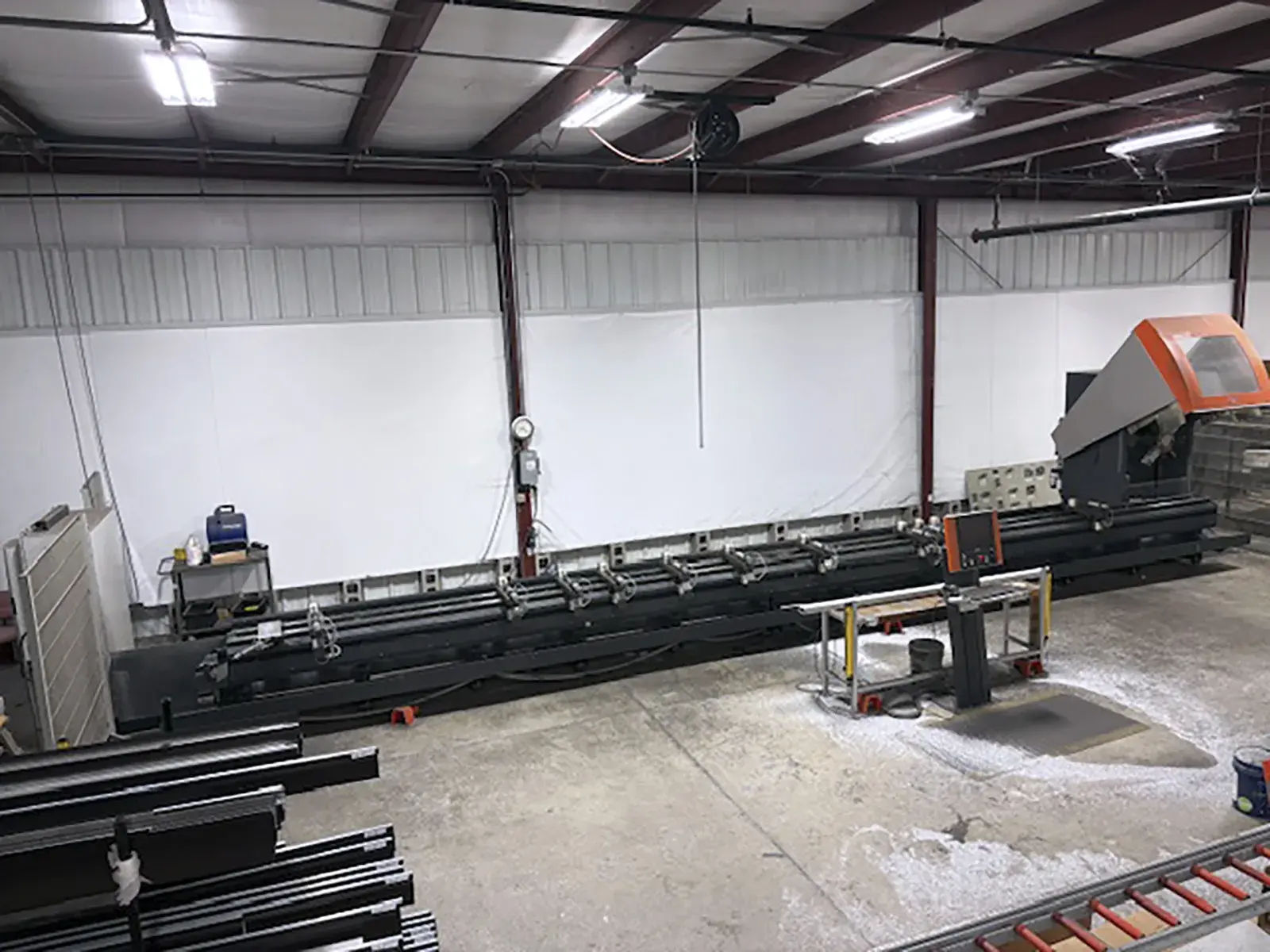

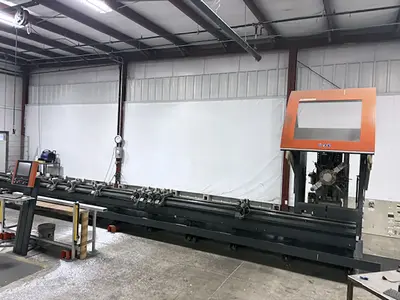

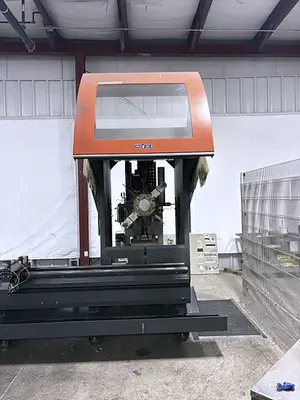

USED 2013 Elumatec SBZ130
Overview
The Elumatec SBZ130 CNC (2013) profile machining center is designed for high-speed, automated drilling, milling, and tapping of aluminum, steel, and PVC profiles. Ideal for window and door production, curtain walls, storefronts, and glazing systems. Ensures precision machining on multiple sides while protecting surfaces ¡Perfect for architectural and industrial fabrication!
Specs
Axes: 3- Axis
X-Travel: 401.2" (10200mm)
Y-Travel: 19.1" (485mm)
Z-Travel: 13.4" (340mm)
Max Machining Length: 401.6"
Rapid Traverse Speed: 2362 in/min (approx 197 ft/min)
Spindle: 15000 RPM (high speed spindle option)
spindle power: 7.4 HP
Pneumatic Requirements:
Air Pressure: 7 bar
Air Consumption: 100 L/min
Electric Requirements: 480V / 3-phase / 60 Hz
Approx Weight: 8000 kg
Commonly used for:
Window and door profile machining:
Curtain wall fabrication:
Storefront systems:
Commercial Glazing Systems:
Architectural aluminum fabrication:
Equipped With
Windows platform XP-version

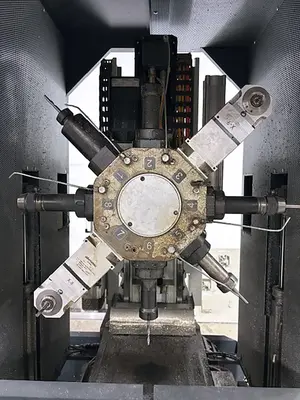

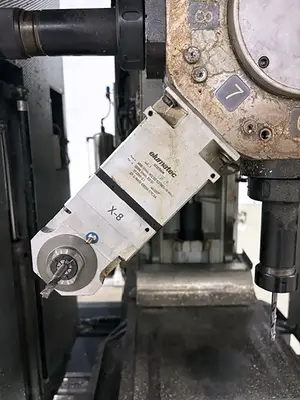

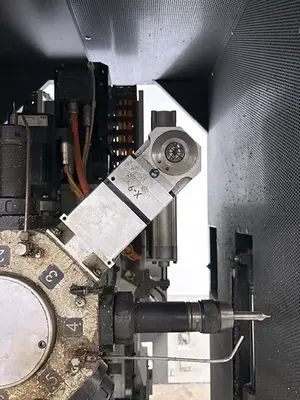

Servo axis for 8-fold tool changer
Absolute encoder for all axes

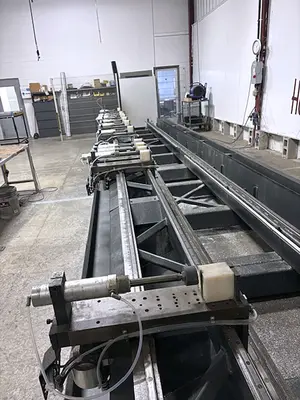

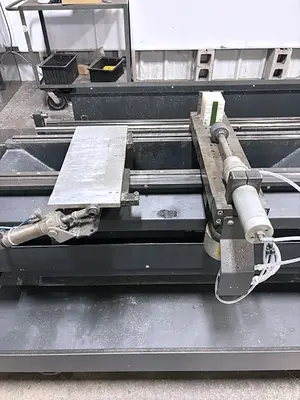

Two sectional clamping system
1 Material stop tilting pneumatically left side
1 Material stop lowerable pneumatically- approx. middle
Automatic recognition of clamping position
Automatic clamping movement
8-way pulsed spray coolant system
Shaving trough

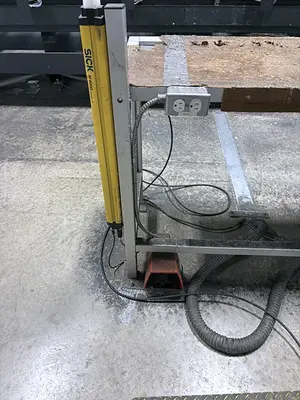

2 Light barriers for operator protection

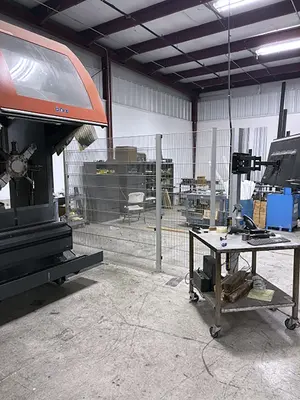

Protection fence left and right as standard
Material clamping:12 pieces
USV unit (power supply without interruption)

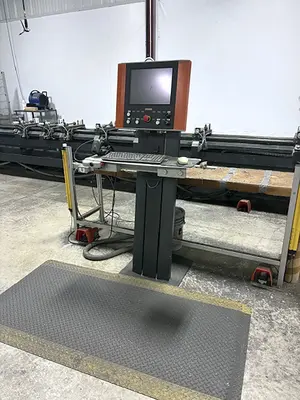

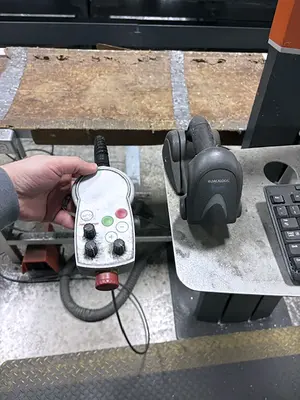

Mobile operation terminal
Cooling device in the control cabinet
