10,000 rpm, 20 HP, Coolant through spindle, Chip auger, 4th axis installed
| X | 20" | 508 mm |
| Y | 14" | 355.6 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 12.75" | 323.85 mm |
| Table-L | 20" | 508 mm |
| # Axis | 3 | 3 |
| Control | CNC | CNC |
| Dimensions | 124" x 134" x 113" high | 124" x 134" x 113" high |
| Weight | 14,000 lbs. | 14,000 lbs. |

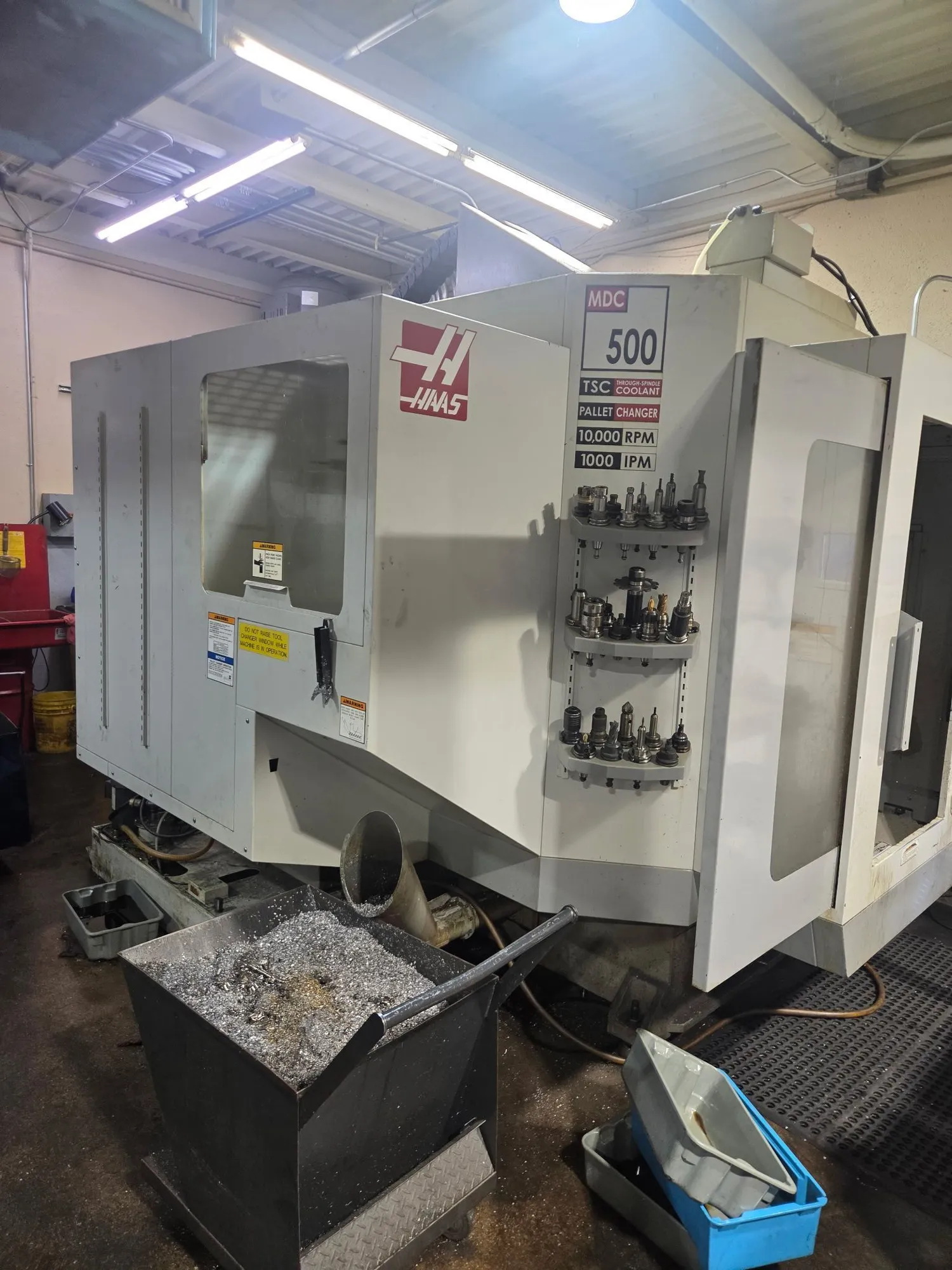

ONE USED HAAS CNC DRILL & TAP VMC WITH ROTARY PALLET CHANGER
Model: MDC 500
Pallet size: 20” x 12.75”
Max. weight per pallet: 700 lbs. (balanced)
Travels: 20” x 14” x 20”
RPM: 10,000
HP: 20
Spindle taper: Cat 40
Rapids: 1,000 ipm
Max. cutting feed rate: 833 ipm
ATC: 24 place
Tool to tool: 2.2 sec
Chip to chip: 4.8 sec
Weight: 14,000 lbs.
Working dimensions: 124” x 134” deep x 113” high
Wired: 208/230v
OPTIONS:
Chip auger
Coolant through spindle
10,000 rpm spindle
Rotary dual pallet changer
4th axis drive installed
SN: 43558, New 8/2005
Video link: https://www.youtube.com/shorts/m0KPHaHv3dg
F.O.B. – Illinois $13,500.00
