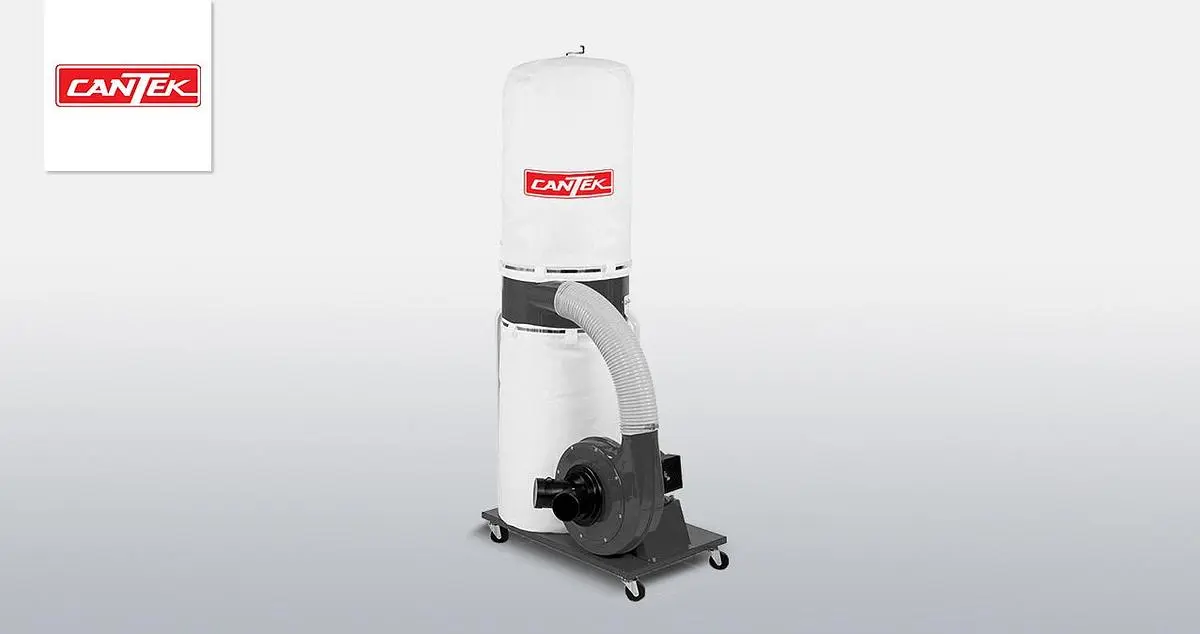

Cantek PDC 102 2hp DUST COLLECTOR- 1600 CFM
Overview
Description
The Cantek PDC102 2HP Dust Collector enhances the quality of air in your shop by efficiently collecting dust from wood processing machines. These compact and highly efficient dust collectors can be moved around the shop with ease to collect dust wherever there is a need. The bottom bag collects the dust and can be easily removed for disposal in your larger bin.
12” blower powered by 2HP motor generating 1600 CFM
Top & bottom cloth filter bags can be removed to dumping and cleaning
6” main inlet with (2) 4” inlet adapter
Equipped with magnetic starter
Casters make the unit portable so it can be moved from one machine to the next
Specifications
IMPELLER DIAMETER: 12''
MOTOR: 2 HP
CAPACITY: 1600 CFM
MAX STATIC PRESSURE: 11'' OF WATER
SOUND RATING (dB): 60-70 dB
INTAKE OPENING: (1) 6''; (2) 4''
STORAGE CAPACITY: 43 GALLONS
SHIPPING DIMENSIONS: 38'' X 22'' X 18''
MACHINE WEIGHT: 132 LBS.
SHIPPING WEIGHT: 143 LBS.
MACHINE ELECTRICS: 110/1/60 or 22/1/60
