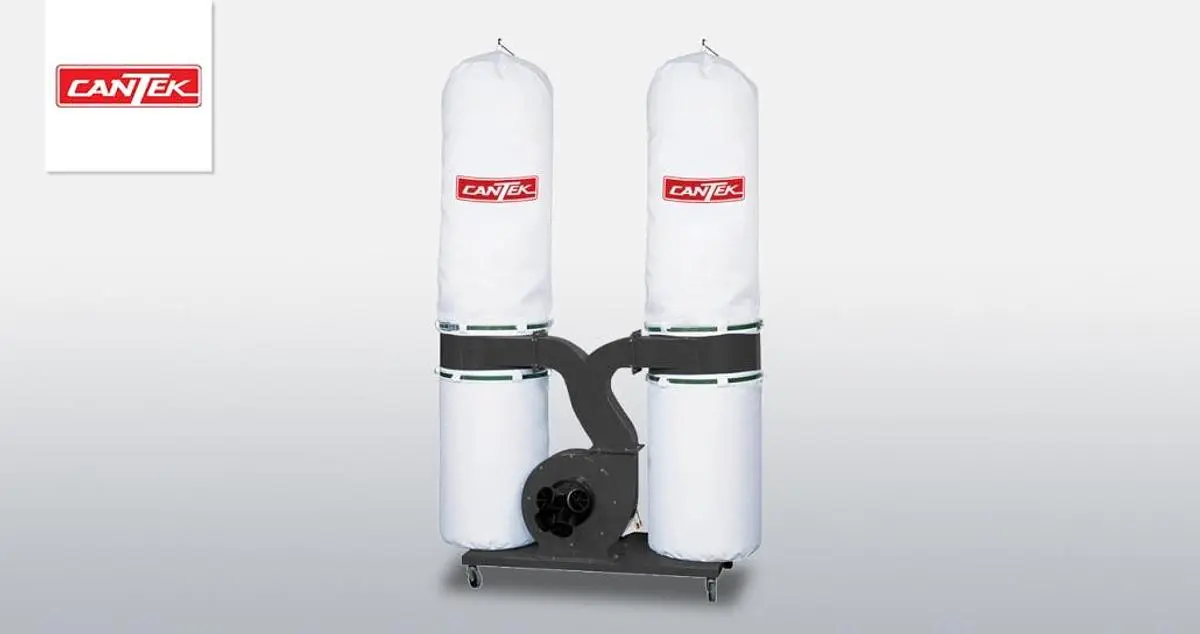

Cantek PDC 203 3hp DUST COLLECTOR- 2800 CFM

The Cantek PDC203 3HP Dust Collector is ideal for the small shop looking to collect wood dust or for the larger shop to provide additional dust collection beyond the capacity of their central system. The upper and lower bags are made of cotton and help filter the collected air before it is recycled into the shop and also collects the dust for disposal. The base is mounted on casters to be taken to where it is needed in the shop.
3HP generating 2800 CFM.
The base is mounted on casters to be moved around the shop to where it is needed.
Durable cotton filter bags. (Bottom plastic disposal bags are optional)
Magnetic starter included.
3HP Motor
2800 CFM
8″ main inlet with removable outlet with (3) 4″ ports
5 micron upper filter bags and 30 micron collection bags

MOTOR: 3 HP
CAPACITY: 2800 CFM
SOUND RATING (dB): 85 dB
SHIPPING DIMENSIONS: 46” x 23” x 23”
MACHINE WEIGHT: 154 lbs
SHIPPING WEIGHT: 163 lbs
MACHINE ELECTRICS: 230/1/60 = 17 Full Load Amps
MAIN INLET DIAMETER: 8''
CONNECTOR INLET DIAMETER: (3) 4''
FAN DIAMETER: 14''
STATIC PRESSURE: 14.4'' OF WATER
TOP FILTER BAGS (2): 5 MICRON (20'' DIA X 48'' LONG)
BOTTOM COLLECTION BAGS (2): 30 MICRON (20'' DIA X 33.5'' LONG)
