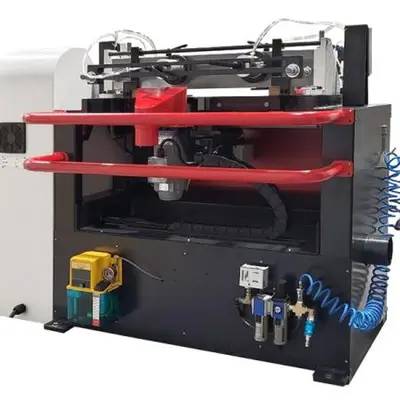

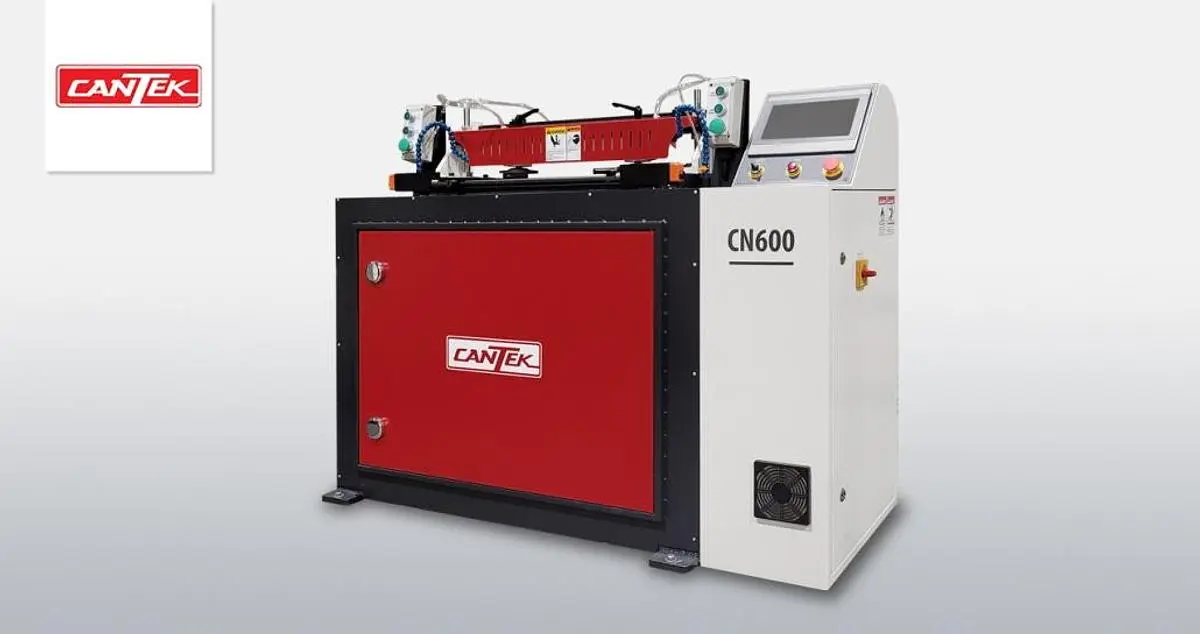

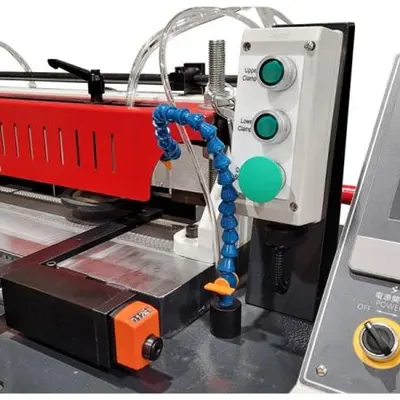

Cantek CN600 CNC DOVETAILER

The Cantek CN600 CNC dovetailer provides optimal flexibility & output in the production of dovetail drawer boxes. The user friendly touch screen interface allows the operator to select from a range of standard dovetail joints as well as program the spacing or pitch of the dovetails. This allows for maximum flexibility to ensure the optimal aesthetic result. The dovetail milling unit can also pre-score the workpiece to ensure the best possible finish. In addition, the machining stroke is optimized to reduce any wasted time leading to greater productivity. With a capacity of up to 60 drawers an hour the CN600 is truly a production dovetailer.
High speed production with a capacity up to 60 drawer boxes per hour!
CNC allows flexibility on dovetail patterns without the constraints of following a fixed pattern
Simply enter the desired pitch or the number of dovetails
User friendly touch screen interface
Automatic scoring of the workpiece for superior finish
Two working zones for continuous production
Adjustable fences with mechanical digital readouts for precise adjustment (setting provided by the control)

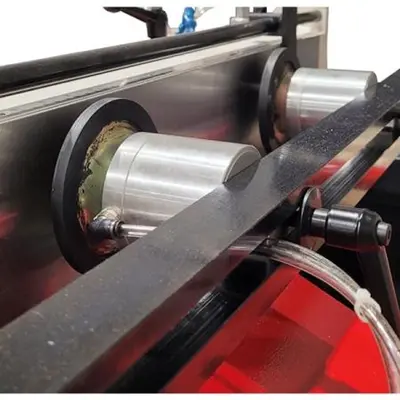

Pneumatic clamping of the workpiece.

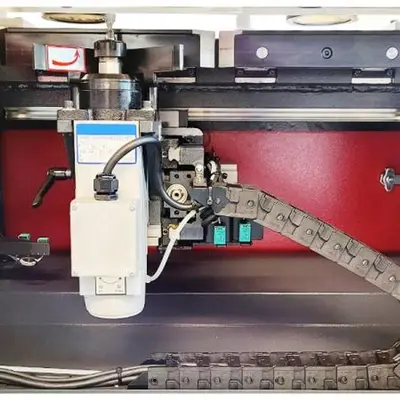

2HP 20000 RPM spindle for optimal finish on dovetail drawers
Rigid machine construction resulting in superior finish quality while promoting long machine life
KEY FEATURES
Variable dovetail pitch allows for machining of any drawer height with ease
Adjustable spindle height and mortise and tenon depth
Spindle speed and machining speed is variable to ensure optimal results in a wide range of materials

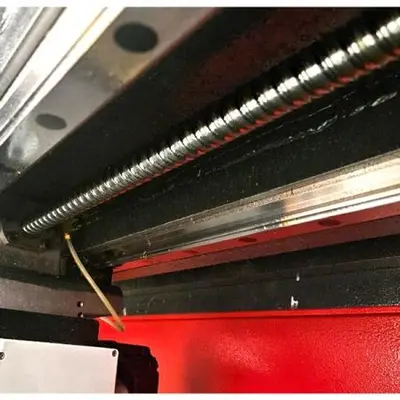

Ballscrew drive on both X and Y axis
Precision linear guideways for smooth and precise movement of the spindle motor

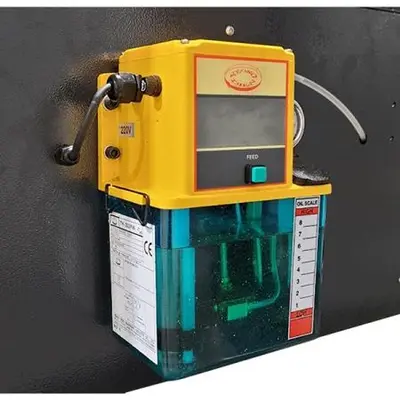

Automatic lubricator to lubricate the ballscrew and guideways

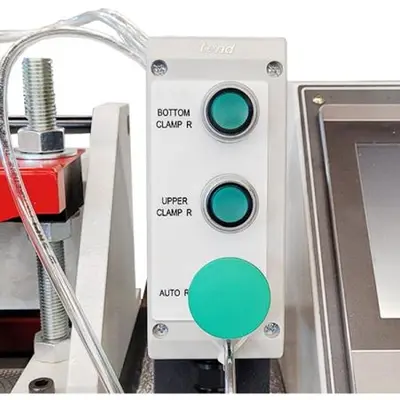

Individual pneumatic clamps capable of clamping all four pieces of the drawer at once
Fences are equipped with UHMW anti tear-out blocks
(1) 3” and (1) 4″ dust outlet

MACHINE WEIGHT: 1540 lbs (700 kgs)
PACKING DIMENSIONS: 63” x 37” x 56” (1600x940x1400 mm)
MACHINE DIMENSIONS: 59” x 33” x 52” (1500x840x1300 mm)
ELECTRICS: 230/3/60 = 14 Amps
WORKING AIR PRESSURE: 80 PSI (6 kg/cm²)
DUST HOOD OUTLET DIAMETER: ø3″ x 1 & ø4″ x 1
HEIGHT OF TABLE: 33.5''
TOTAL MOTOR HORSEPOWER: 4 HP
SINDLE MOTOR: 2 HP
SPINDLE SPEED: 20000 RPM
DOVETAIL SPACING: VARIABLE
MAX WORKING WIDTH: 23.6''
MIN THICKNESS OF BOARD: 0.315''
MAX THICKNESS OF BOARD: 1''
SHIPPING WEIGHT: 1584 lbs (720 kgs)
