USED 1990 VERSON PRESS S2-300-96-54T

Tonnage: 300
Stroke: 12 inches
Shut Height: 33 inches
Adjustment: 8 inches
Bed Size: 96" LR x 54" FB
Ram Area: 96" LR x 54" FB
SPM: 20-40 VSPM

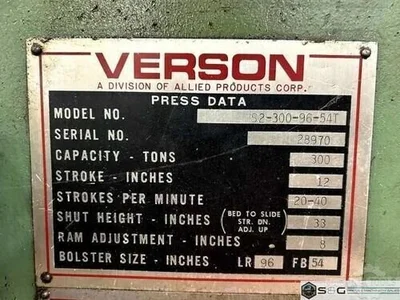

Standard Specifications
Used Verson Model S2-300-96-54t
Straight Side Double Crank Press

300 ton Capacity
12" Stroke
33" Shut Height
8" Adjustment
96" LR x 54" FB Bed Area
96" LR x 54" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
Light Curtains
T-Slotted Ram and Bolster
37" Wide Windows
Motors and Controls

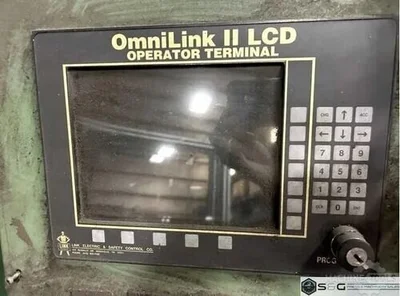

OmniLink II LCD Press Controls
Free Standing Console
Floor Standing

Approximate Weight 94,000lbs
220" Overall Height

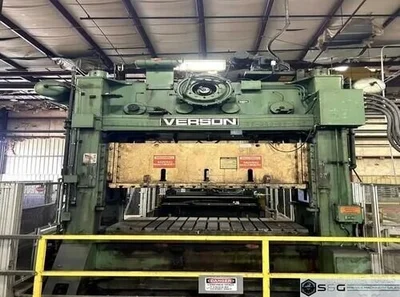

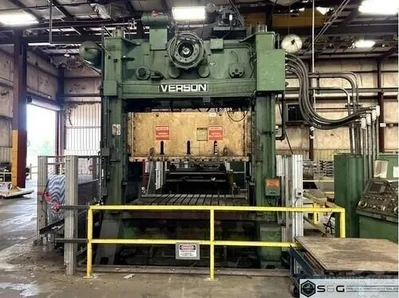

This Used 300-ton Verson Straight Side Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Click for more 300-ton Straight Side Options

For Sale:
This 300-ton Verson S2-300-96-54T straight side press offers a robust solution for high-demand progressive die and heavy-duty metal stamping applications. Featuring a 12-inch stroke, a 33-inch shut height, and a generous 96-inch by 54-inch bed, this machine is engineered for versatility and precision. It is equipped with an OmniLink II LCD control system, which provides industry-standard features such as advanced job memory for rapid setup, integrated die protection, and programmable limit switches to synchronize auxiliary equipment. The control also offers comprehensive tonnage monitoring and detailed diagnostic history to maximize uptime and protect your tooling investment. Enhanced by a recirculating lubrication system for smooth, continuous operation, this press is currently available for inspection under power at our Livonia, Michigan facility. Contact S&G Press today to learn how this reliable Verson press can enhance your production capabilities.
