| Tonnage | 100 T | 90.719 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 100" | 2.5 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |

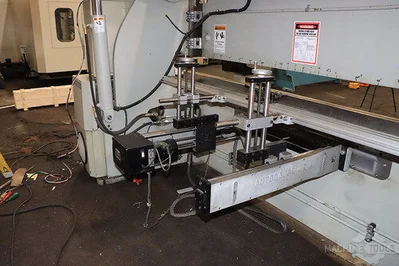

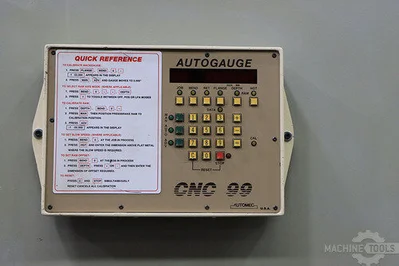

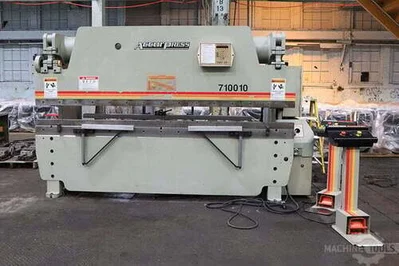

100 Ton X 10’ Hydraulic Press Brake with Automec CNC 99 Back Gauge, ETS 200 Pedestal Mounted Controller of Dual Palm Button or Foot Pedal Operation, Full Length Die Rail, Manual R - Axis, 2 - Front Arm Swing out Supports and Flush Floor Mount Design.GENERAL SPECIFICATIONS Overall Length: 10’ Distance Between Housings: 8’ 4”Bending Capacity Mild Steel: 8’ X 3/16”Bend Height: 34”Bend Width: 6”Stroke: 8”Open Height: 14”Closed Height: 6”Throat Depth: 10”Fast Approach: 115 IPMSlow Bend: 24 IPMFast Return: 260 IPMApprox Weight: 14,000 LbsMotor: 10 HPDimensions: 136” X 47” 84” HINCLUDES: Automec CNC 99 Back Gauge, ETS 200 Pedestal Mounted Controller of Dual Palm Button or Foot Pedal Operation, Full Length Die Rail, Manual R - Axis, 2 - Front Arm Swing out Supports and Flush Floor Mount Design.
